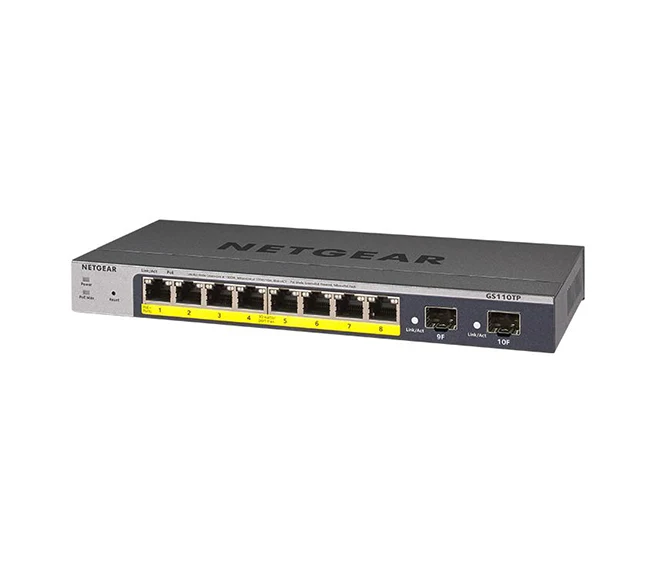

Netgear GS110TPv3 – 8-Port Gigabit PoE+ Smart Managed Pro Switch

The Netgear GS110TPv3 – 8-Port Gigabit PoE+ Smart Managed Pro Switch is a compact Smart Managed Pro switch designed for small businesses, branch offices, and high-performance home offices. It delivers 8 Gigabit PoE+ ports with a 123W total PoE budget, plus 2 dedicated SFP uplink ports for flexible fiber or copper expansion.

With advanced security, VLANs, QoS, and remote cloud management via Netgear Insight, it combines enterprise-class features in a space-saving desktop or rack-mountable form.

Ports & Connectivity

• Total Ports: 10
  • 8 × 10/100/1000 Mbps RJ-45 PoE+ ports
  • 2 × dedicated 1G SFP uplink ports
• PoE Standards Supported:
  • IEEE 802.3af (PoE – 15.4W per port)
  • IEEE 802.3at (PoE+ – 30W per port)
• Total PoE Budget: 123W (sufficient for APs, IP phones, and cameras)

Performance

• Switching Capacity: 20 Gbps non-blocking
• Forwarding Rate: 14.8 Mpps
• MAC Address Table: 8,000 entries
• Buffer Size: 1.5 MB
• Jumbo Frames: Up to 9,216 bytes

Smart Managed Pro Features

• VLAN Support: Port-based, 802.1Q VLAN tagging, Auto Voice VLAN, Auto Video VLAN
• QoS: Prioritization for voice/video traffic, 802.1p/DSCP support
• Link Aggregation: IEEE 802.3ad LACP
• IGMP Snooping v1/v2/v3 for multicast traffic optimization
• Security Features:
  • 802.1X port-based authentication
  • Access Control Lists (ACLs)
  • DHCP Snooping
  • DoS prevention
• Layer 3 Lite: Static routing support
• Management Options:
  • Web GUI
  • CLI
  • SNMP v1/v2c/v3
  • RMON, syslog
  • Netgear Insight Cloud Management (remote monitoring & control)

Power & Efficiency

• PoE Power Budget: 123W shared across 8 ports
• PoE Allocation: Auto-balancing across connected devices
• Energy Efficient Ethernet (IEEE 802.3az) support

Design & Build

• Form Factor: Desktop or rack-mountable (includes rack-mount kit)
• Cooling: Fanless (silent operation)
• LED Indicators: Power, PoE status, Link/Activity, Speed

Physical Specifications

• Dimensions (W × D × H): 236 × 102 × 27 mm
• Weight: ~0.7 kg

Environmental Conditions

• Operating Temperature: 0°C to 50°C
• Storage Temperature: –20°C to 70°C
• Operating Humidity: 10% – 90% non-condensing

Warranty & Support

• Warranty: Netgear Limited Lifetime Hardware Warranty
• Support: Lifetime Next Business Day replacement and 24/7 technical support (with registration)

Typical Use Cases

• Small offices and branch offices needing reliable PoE+ for VoIP, APs, and IP cameras
• Retail and hospitality environments with multiple powered devices
• Remote offices requiring fiber uplinks for secure connectivity
• Quiet workspaces (fanless design makes it perfect for offices and conference rooms)

Key Features

• 8 × Gigabit PoE+ ports + 2 × dedicated SFP uplinks
• 123W total PoE budget (up to 30W per port)
• Smart Managed Pro with VLAN, QoS, ACLs, and static routing
• Fanless silent operation for desktop or rack-mount use
• Remote cloud management via Netgear Insight

Meta Description

Netgear GS110TPv3 – 8-Port Gigabit PoE+ Smart Managed Pro Switch with 8 PoE+ ports, 123W PoE budget, and 2 × 1GbE SFP uplinks. Compact, fanless, and ideal for small offices, retail, and remote sites with enterprise-class features.
