UniFi U6 Mesh Pro (U6-Mesh-Pro)

The UniFi U6 Mesh Pro is a high-performance Wi-Fi 6 access point designed for both indoor and sheltered outdoor environments. It supports dual-band Wi-Fi with a maximum throughput of 5.3 Gbps, offering 573.5 Mbps on 2.4 GHz and 4800 Mbps on 5 GHz. The U6 Mesh Pro is powered via 802.3af PoE, features a weather-resistant design (IPX5), and can be easily mounted on walls, ceilings, or poles. Managed through the UniFi Network Controller, it provides advanced features like mesh networking, VLAN support, and seamless roaming for larger, high-traffic areas.

📡 Wireless Features

• Wi-Fi 6 (802.11ax) support for high-speed, low-latency wireless communication
• Dual-Band:
  • 2.4 GHz: up to 573.5 Mbps (2×2 MIMO)
  • 5 GHz: up to 4800 Mbps (4×4 MU-MIMO with 160 MHz channels)
• Max Aggregate Throughput: Up to 5.3 Gbps
• MIMO:
  • 2×2 MIMO on 2.4 GHz
  • 4×4 MIMO on 5 GHz
• MU-MIMO: Enhanced efficiency for multiple simultaneous users

🔌 Ethernet & Power

• Gigabit Ethernet port (802.3af PoE input)
• PoE Power: Powered via 802.3af PoE (PoE injector not included)
• Power Consumption: Up to 10W

🔧 Build & Mounting

• Design:
  • Compact, weather-resistant (IPX5 rated)
  • Suitable for indoor and outdoor installations

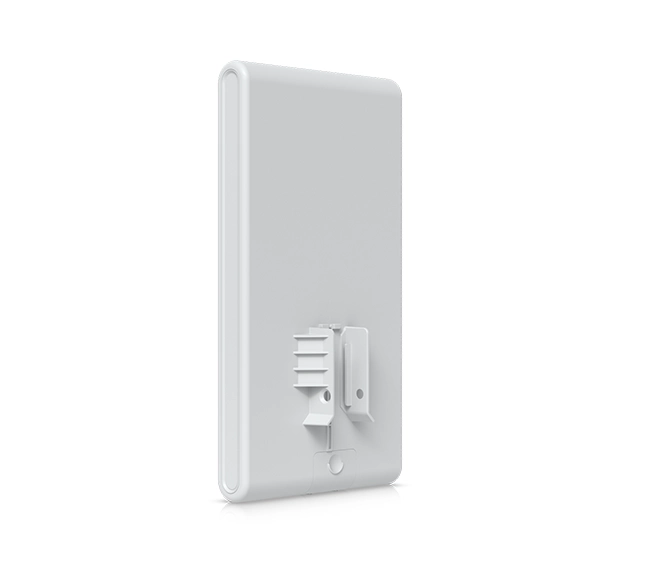

• Mounting:
  • Includes mounting hardware for easy installation on walls, ceilings, or poles
• Dimensions:
  • 170 x 170 x 50 mm (6.7 x 6.7 x 2.0 in)
  • Weight: 430 g (0.95 lbs)

🌐 Management

• UniFi Network Controller:
  • Managed via the UniFi Network Controller or UniFi OS Console
• Advanced Features:
  • VLANs, guest portals, seamless roaming, traffic shaping, and mesh networking

🌡️ Environmental Conditions

• Operating Temperature:
  • -10°C to 45°C (14°F to 113°F)
• Humidity:
  • 5–95% non-condensing

🛠️ Ideal Use Cases

• Suitable for environments that demand higher throughput, such as large homes, offices, and outdoor venues
• Great for mesh networking, enabling easy coverage extension through additional UniFi access points
