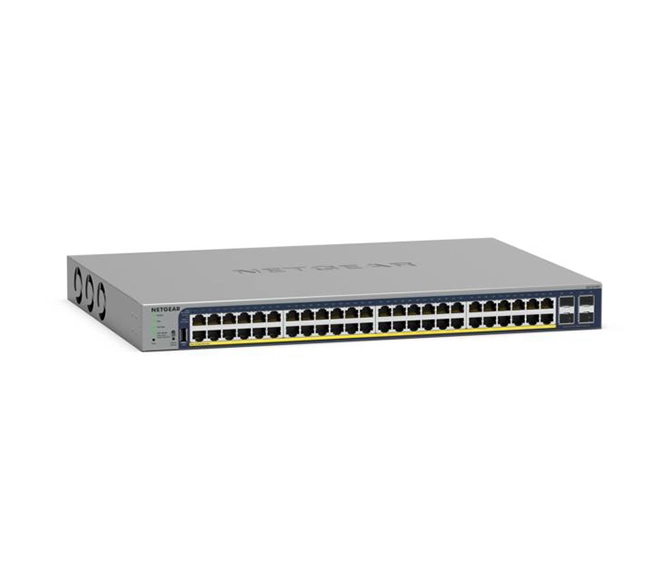

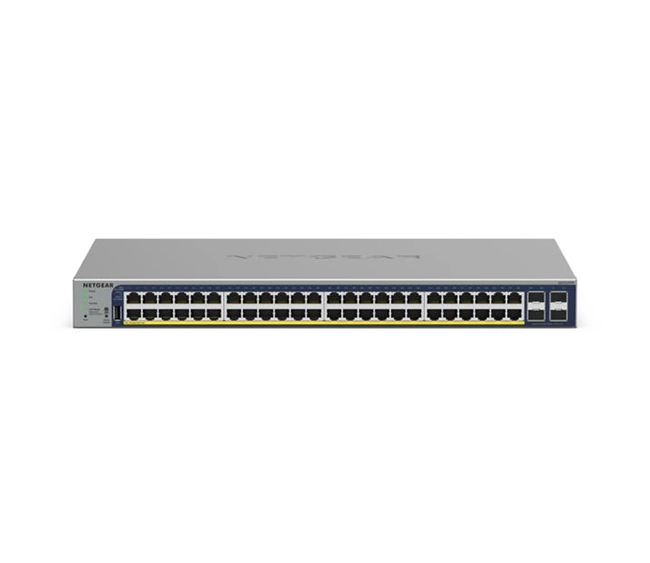

Netgear GS752TPP-300UKS – 52-Port Gigabit PoE+ Smart Managed Pro Switch

The Netgear GS752TPP-300UKS – 52-Port Gigabit PoE+ Smart Managed Pro Switch is a 52-port Gigabit Smart Managed Pro switch built for enterprises, campuses, and large-scale business deployments. Featuring 48 PoE+ Gigabit ports and 4 dedicated SFP uplinks, it provides a powerful 760W PoE budget, making it ideal for powering dense networks of wireless access points, VoIP phones, surveillance cameras, and IoT devices.

With enterprise-grade Layer 2+/Lite Layer 3 features, this switch ensures secure, scalable, and reliable connectivity.

Ports & Connectivity

• Total Ports: 52
  • 48 × 10/100/1000 Mbps RJ-45 Gigabit PoE+ ports
  • 4 × dedicated 1GbE SFP uplink ports (fiber or copper SFP modules supported)
• PoE Standards Supported:
  • IEEE 802.3af (PoE – 15.4W per port)
  • IEEE 802.3at (PoE+ – 30W per port)
• Max PoE per Port: Up to 30W
• Total PoE Budget: 760W (sufficient for high-density PoE device environments)

Performance

• Switching Capacity: 104 Gbps non-blocking
• Forwarding Rate: 77.3 Mpps
• MAC Address Table: 16,000 entries
• Jumbo Frames: Up to 9,216 bytes

Smart Managed Pro Features

• VLAN Support: Port-based VLANs, 802.1Q tagging, Auto Voice VLAN, Auto Video VLAN
• QoS (Quality of Service): Advanced prioritization for voice, video, and real-time traffic
• IGMP Snooping (v1/v2/v3) for multicast streaming optimization
• Link Aggregation: IEEE 802.3ad LACP support
• Security Features:
  • 802.1X port authentication
  • Access Control Lists (ACLs)
  • DHCP Snooping
  • DoS attack prevention
• Layer 3 Lite: Static routing for traffic segmentation
• Management Options: Web GUI, CLI, SNMP v1/v2c/v3, RMON, syslog, Insight Cloud Management
• Monitoring Tools: Port mirroring, dual firmware images, event logs

Power & Energy

• PoE Budget: 760W shared across 48 PoE+ ports
• PoE Allocation: Supports multiple high-power devices such as Wi-Fi 6/6E access points and PTZ cameras
• Energy Efficient Ethernet (IEEE 802.3az) reduces operational costs

Design & Build

• Form Factor: 1U rack-mountable, metal chassis
• Cooling: Multi-fan system for reliable temperature management
• LED Indicators: Power, Link/Activity, Speed, PoE status

Physical Specifications

• Dimensions (W × D × H): 440 × 310 × 43 mm
• Weight: ~4.35 kg

Environmental Conditions

• Operating Temperature: 0°C to 50°C
• Storage Temperature: –20°C to 70°C
• Operating Humidity: 10% – 90% non-condensing

Warranty & Support

• Warranty: Netgear Limited Lifetime Hardware Warranty
• Support: Lifetime 24/7 technical support with registration, plus next-business-day hardware replacement

Typical Use Cases

• Large enterprises and campuses with many PoE devices
• High-density Wi-Fi 6/6E deployments in education, hospitality, and corporate networks
• IP surveillance systems requiring multiple high-power PTZ cameras
• Healthcare and retail environments demanding secure and managed PoE connectivity

Key Features

• 48 × Gigabit PoE+ ports + 4 × SFP uplinks
• Massive 760W PoE budget (up to 30W per port)
• Advanced VLAN, QoS, security, and Layer 3 Lite routing
• Rack-mountable 1U design with fan cooling
• Managed locally via Web/CLI or remotely via Insight Cloud

Meta Description

Netgear GS752TPP-300UKS – 52-Port Gigabit PoE+ Smart Managed Pro Switch with 48 PoE+ ports, 760W PoE budget, and 4 × 1GbE SFP uplinks. Ideal for enterprise, campus, and surveillance networks requiring high-density PoE deployments.
