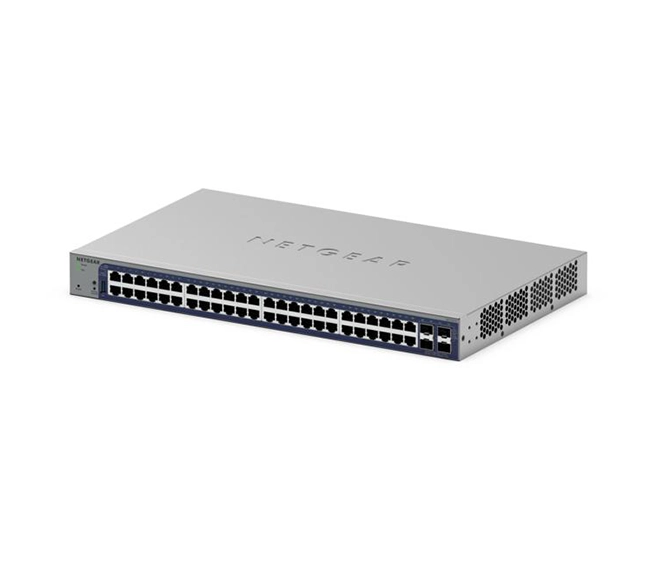

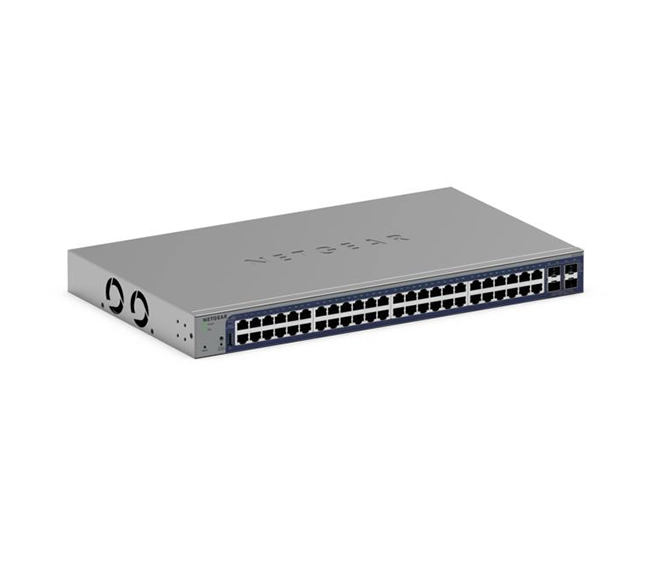

Netgear GS752TXv3 52-Port Gigabit Smart Managed Pro Switch

The Netgear GS752TXv3 52-Port Gigabit Smart Managed Pro Switch is a high-performance 52-port Smart Managed Pro switch built for medium to large businesses requiring reliable Gigabit connectivity and high-speed 10G uplinks. It offers 48 × 1G RJ-45 ports and 4 × 10G uplink ports (2 × 10GBase-T copper + 2 × 10G SFP+ fiber), providing flexible connectivity for servers, storage, and core switches.

With enterprise-class Layer 2+/Lite Layer 3 features, VLANs, QoS, security, and stacking support, it’s designed for scalability and efficiency.

Ports & Connectivity

• Total Ports: 52
  • 48 × 10/100/1000 Mbps RJ-45 Gigabit Ethernet ports
  • 2 × 10GBase-T RJ-45 copper uplink ports
  • 2 × 10G SFP+ uplink ports (fiber)
• Auto-MDI/MDIX support on all copper ports

Performance

• Switching Capacity: 176 Gbps non-blocking
• Forwarding Rate: 130.9 Mpps
• MAC Address Table: 16,000 entries
• Packet Buffer: 3 MB
• Jumbo Frames: Up to 9,216 bytes
• Latency: < 4 μs (10G ports)

Smart Managed Pro Features

• Layer 2 Switching: VLANs, Spanning Tree Protocol (STP, RSTP, MSTP), IGMP Snooping v1/v2/v3
• Layer 3 Lite: Static routing (inter-VLAN routing)
• Link Aggregation: IEEE 802.3ad LACP (up to 8 groups, 8 ports per group)
• QoS:
  • 802.1p/DSCP traffic prioritization
  • Voice and video traffic optimization
• Security:
  • 802.1X port authentication
  • Access Control Lists (ACLs)
  • DHCP Snooping
  • DoS prevention
• Multicast: IGMP Snooping, Querier
• Stacking: Virtual Stacking (up to 32 devices via single pane management)

Management Options

• Web-based GUI
• Command Line Interface (CLI)
• SNMP v1, v2c, v3
• RMON, syslog, port mirroring
• Dual firmware and configuration image support
• Netgear Insight remote/cloud management compatible

Power & Efficiency

• Power Supply: Internal
• Energy Efficient Ethernet (IEEE 802.3az) support
• Typical Power Consumption: ~65W (varies with usage)

Design & Build

• Form Factor: Rack-mountable (1U, kit included)
• Cooling: Smart fans (low-noise adaptive cooling)
• LED Indicators: Power, Port Link/Activity, Speed, Fan status

Physical Specifications

• Dimensions (W × D × H): 440 × 257 × 43 mm (1U)
• Weight: ~4.1 kg

Environmental Conditions

• Operating Temperature: 0°C to 50°C
• Storage Temperature: –20°C to 70°C
• Operating Humidity: 10% – 90% non-condensing

Warranty & Support

• Warranty: Netgear Limited Lifetime Hardware Warranty
• Support: Lifetime Next Business Day hardware replacement (with registration)

Typical Use Cases

• Medium to large businesses requiring reliable Gigabit access with high-speed 10G uplinks
• Server and storage aggregation with 10GBase-T or fiber connectivity
• Enterprise offices with VLAN segmentation, security, and QoS for VoIP and video
• Growing networks that need scalable and manageable switching

Key Features

• 48 × Gigabit RJ-45 ports + 4 × 10G uplink ports (2 copper + 2 SFP+)
• 176 Gbps switching capacity with 130.9 Mpps forwarding rate
• Smart Managed Pro features with VLANs, QoS, ACLs, static routing
• Energy Efficient Ethernet and adaptive cooling
• Rack-mountable 1U design for enterprise deployments

Meta Description

Netgear GS752TXv3 52-Port Gigabit Smart Managed Pro Switch with 48 × Gigabit ports and 4 × 10G uplinks (2 copper, 2 SFP+). Enterprise-ready with VLAN, QoS, security, and stacking support for growing business networks.
