UniFi U7 In-Wall (U7-IW)
- Wi-Fi 7 (802.11be) tri-band in-wall access point
- Multi-gig 2.5 GbE uplink
- Integrated Ethernet switch with PoE passthrough support
- Ideal for room-by-room and hospitality deployments
- Fully managed through UniFi Network Application

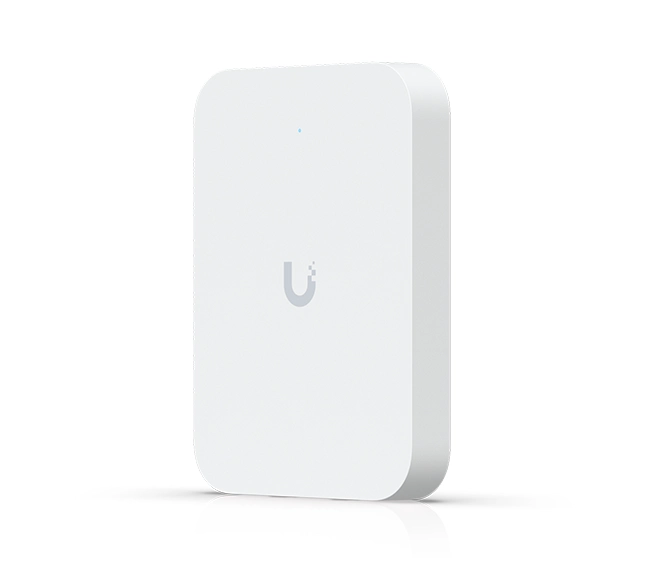

The UniFi U7 In-Wall (U7-IW) is a next-generation Wi-Fi 7 in-wall access point designed to deliver high-performance wireless coverage and wired connectivity at the room level. Built on the latest 802.11be standard, the UniFi U7 In-Wall combines ultra-low latency Wi-Fi, multi-gig uplink, and integrated Ethernet switching, making it ideal for offices, hotels, apartments, and modern smart buildings.
Product Overview
The UniFi U7 In-Wall replaces a standard wall Ethernet outlet, providing powerful tri-band Wi-Fi 7 coverage while also extending the network through built-in LAN ports. It is optimized for environments where clean installation, room-by-room coverage, and high client performance are required.
Wireless Standards & Performance
- Wi-Fi standard: IEEE 802.11be (Wi-Fi 7)
- Backward compatibility: 802.11a/b/g/n/ac/ax
- Frequency bands:
- 2.4 GHz
- 5 GHz
- 6 GHz
- Supports Multi-Link Operation (MLO) for improved throughput and reduced latency
- Designed for high-capacity indoor deployments
Antenna & Radio Design
- Integrated internal directional antennas
- Optimized for room-focused coverage patterns
- Advanced beamforming for stable client connections
Ethernet Ports & Switching
- 1 × multi-gigabit Ethernet uplink (2.5 GbE)
- Multiple downlink Gigabit Ethernet LAN ports for local devices
- Supports PoE passthrough on select LAN ports when powered by compatible PoE standards
Power Requirements
- Power method: Power over Ethernet (PoE)
- Supported PoE standards: 802.3at / 802.3bt (depending on passthrough use)
- Single-cable power and data delivery
Management & Security
- Managed via UniFi Network Application
- Centralized monitoring, configuration, and firmware updates
- Enterprise security with WPA3 support
- VLANs, guest networking, traffic segmentation, and policy control
Physical Design & Installation
- In-wall form factor replacing a standard Ethernet faceplate
- Clean, professional finish for visible indoor installations
- Ideal for hotels, residential units, offices, and classrooms
Reliability & Operation
- Engineered for continuous 24/7 operation
- Efficient thermal design for sustained performance
Key Features
- Wi-Fi 7 (802.11be) tri-band in-wall access point
- Multi-gig 2.5 GbE uplink
- Integrated Ethernet switch with PoE passthrough support
- Ideal for room-by-room and hospitality deployments
- Fully managed through UniFi Network Application
Meta Description
UniFi U7 In-Wall is a Wi-Fi 7 in-wall access point with tri-band radios, 2.5GbE uplink, and integrated Ethernet ports, delivering high-performance wireless and wired connectivity for modern buildings.
