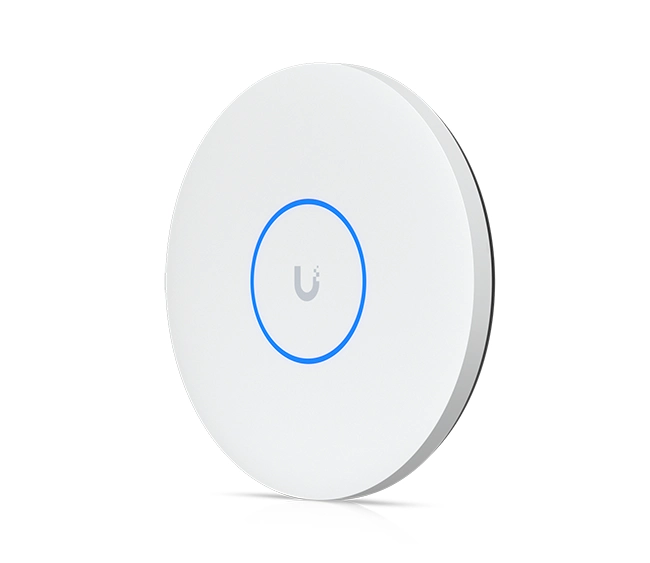

UniFi U7 Pro XGS (U7-Pro-XGS)
- Wi-Fi 7 (802.11be) tri-band access point
- 10-Gigabit Ethernet uplink for maximum throughput
- PoE++ single-cable deployment
- Optimized for ultra-high-density environments
- Centralized UniFi management and enterprise security
The UniFi U7 Pro XGS is an enterprise-grade Wi-Fi 7 access point designed for ultra-high-density environments requiring multi-gigabit wireless performance and 10-gigabit backhaul. Built on the latest IEEE 802.11be standard, the U7 Pro XGS delivers extremely low latency, higher spectral efficiency, and future-ready capacity for modern offices, campuses, and high-performance networks.
Product Overview
The UniFi U7 Pro XGS is a ceiling-mounted, tri-band Wi-Fi 7 access point featuring a 10-gigabit uplink for uncompromised throughput. It is optimized for demanding deployments where high client density, real-time applications, and next-generation wireless performance are critical.
Wireless Standards & Performance
- Wi-Fi standard: IEEE 802.11be (Wi-Fi 7)
- Backward compatibility: 802.11a/b/g/n/ac/ax
- Frequency bands:
- 2.4 GHz
- 5 GHz
- 6 GHz
- Multi-Link Operation (MLO) support for reduced latency and improved reliability
- Designed for high-density, high-throughput enterprise environments
Antenna & Radio Design
- Integrated internal antennas
- Enterprise-grade radio architecture optimized for simultaneous multi-band operation
- Advanced beamforming for improved range and client stability
Networking Interface
- 1 × 10-Gigabit Ethernet uplink
- Designed to eliminate wireless bottlenecks when paired with multi-gig or 10G switching infrastructure
Power Requirements
- Power method: PoE
- PoE standard: 802.3bt (PoE++)
- Single-cable power and data delivery
Management & Security
- Managed by UniFi Network Application
- Centralized configuration, monitoring, and firmware updates
- Advanced security features including WPA3
- VLAN support, guest networking, and traffic segmentation
Physical & Installation
- Form factor: Ceiling / wall mount access point
- Enterprise-grade industrial design
- Optimized for commercial and professional installations
Environmental & Reliability
- Designed for continuous 24/7 operation
- High thermal efficiency for sustained performance under load
Key Features
- Wi-Fi 7 (802.11be) tri-band access point
- 10-Gigabit Ethernet uplink for maximum throughput
- PoE++ single-cable deployment
- Optimized for ultra-high-density environments
- Centralized UniFi management and enterprise security
Meta Description
UniFi U7 Pro XGS is a Wi-Fi 7 enterprise access point with tri-band radios, 10-gigabit uplink, and PoE++ power, built for ultra-high-density and future-ready networks.
