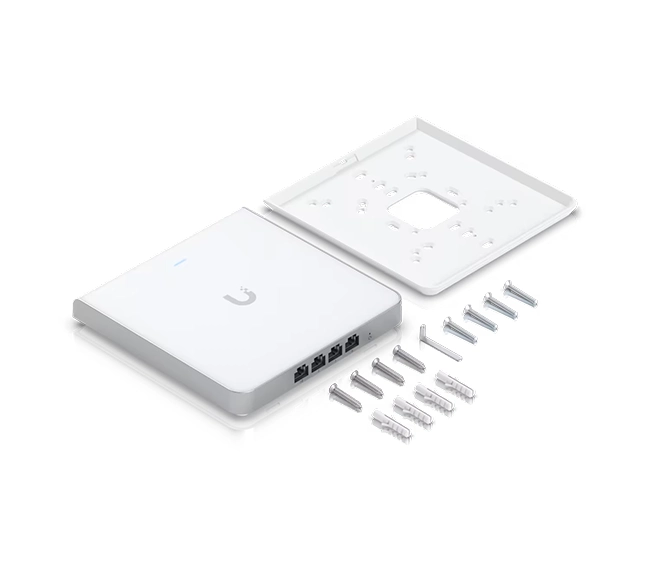

UniFi U6 Enterprise In-Wall (U6-Enterprise-IW)

The UniFi U6 Enterprise In-Wall (U6-Enterprise-IW) is a high-performance, wall-mounted WiFi 6E access point designed for modern enterprise environments. It combines tri-band wireless capabilities with a built-in 4-port Gigabit switch, making it ideal for high-density deployments such as offices, hotels, and conference rooms.

📐 Hardware Specifications

• Dimensions: 159.7 x 156.7 x 33.8 mm (6.3 x 6.2 x 1.3″)
• Weight: 884 g (1.9 lb)
• Enclosure Material: Polycarbonate and aluminum

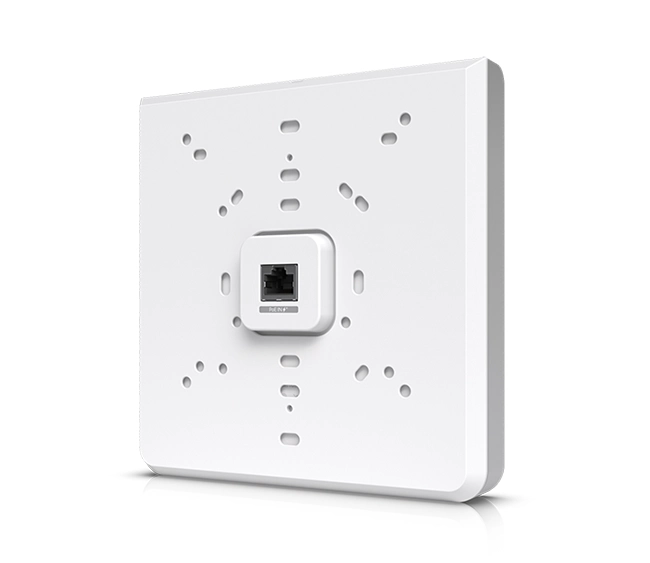

• Mounting: Wall-mounted (mount included)
• Power Method: PoE+ (802.3at) or PoE++ (802.3bt)
• Max. Power Consumption: 21W (excluding PoE output)
• Operating Temperature: -30 to 60°C (-22 to 140°F)
• Operating Humidity: 5% to 95% non-condensing
• Certifications: CE, FCC, IC

📡 Wireless Performance

• WiFi Standard: WiFi 6E (802.11ax)
• Spatial Streams: 10 total
  • 2.4 GHz: 2×2 UL MU-MIMO
  • 5 GHz: 4×4 DL/UL MU-MIMO
  • 6 GHz: 4×4 DL/UL MU-MIMO
• Max. Data Rates:
  • 2.4 GHz: 573.5 Mbps
  • 5 GHz: 4.8 Gbps
  • 6 GHz: 4.8 Gbps
• Antenna Gain:
  • 2.4 GHz: 4 dBi
  • 5 GHz: 5.8 dBi
  • 6 GHz: 5.8 dBi
• Max. TX Power:
  • 2.4 GHz: 22 dBm
  • 5 GHz: 26 dBm
  • 6 GHz: 26 dBm
• Coverage Area: Up to 115 m² (1,250 ft²)
• Max. Client Count: 600+ devices

🔌 Networking Interfaces

• Uplink: 1 × 2.5 GbE RJ45 port (Data In)
• Downlink: 4 × GbE RJ45 ports (Data Out), with one port supporting PoE output (requires PoE++ input)

🛡️ Advanced Features

• Wireless Meshing: Supported
• Band Steering: Supported
• Fast Roaming: 802.11r
• BSS Transition Management: 802.11v
• Radio Resource Management: 802.11k
• Advanced Radio Management: Supported
• Hotspot 2.0 / Passpoint: Supported
• Captive Portal: Custom branding, voucher authentication, payment-based authentication, external portal server support
• Guest Network Isolation: Supported
• Private Pre-Shared Key (PPSK): Supported
• WiFi Speed Limiting: Supported
• Client Device Isolation: Supported
• WiFi Schedules: Supported
• RADIUS over TLS (RadSec): Supported
• Dynamic RADIUS-assigned VLAN: Supported
