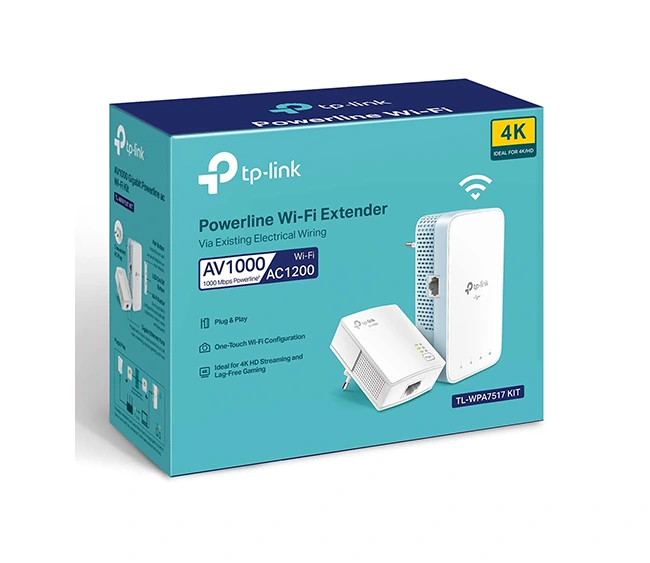

TP Link AV1000 Gigabit Powerline ac Wi-Fi Kit – TL-WPA7517KIT

The TP Link AV1000 Gigabit Powerline ac Wi-Fi Kit – TL-WPA7517KIT is a versatile powerline networking solution designed to extend both wired and wireless connectivity throughout your home or office using existing electrical wiring. Combining AV1000 powerline speed with dual-band AC1200 Wi-Fi, this kit ensures fast, stable internet access in areas where traditional Wi-Fi struggles to reach.

Ideal for streaming, gaming, and multiple-device households, it supports seamless roaming, gigabit Ethernet connections, and easy one-touch network expansion.

Detailed Specifications

Powerline Standard:

• HomePlug AV2 compliant

Powerline Speed:

• Up to 1000 Mbps (over electrical wiring)

Wi-Fi Standard:

• IEEE 802.11ac/n/a (5 GHz)
• IEEE 802.11n/b/g (2.4 GHz)

Wi-Fi Speed:

• 5 GHz: Up to 867 Mbps
• 2.4 GHz: Up to 300 Mbps
• Combined dual-band: Up to 1200 Mbps

Ethernet Port:

• 1× Gigabit Ethernet port on the TL-WPA7517 extender unit

Frequency Bands:

• 2.4 GHz and 5 GHz dual-band

Security:

• Powerline encryption: 128-bit AES
• Wi-Fi encryption: WPA-PSK/WPA2-PSK

Plug Type:

• Varies by region (EU, UK, US, etc.)

Range:

• Powerline: Up to 300 m over electrical wiring (in ideal conditions)
• Wi-Fi: Varies depending on environment

Key Functions & Features:

• One-Touch Wi-Fi Clone: Automatically copies your router’s Wi-Fi name (SSID) and password for seamless roaming.
• Seamless Roaming: Unified Wi-Fi network across the house for uninterrupted streaming and gaming.

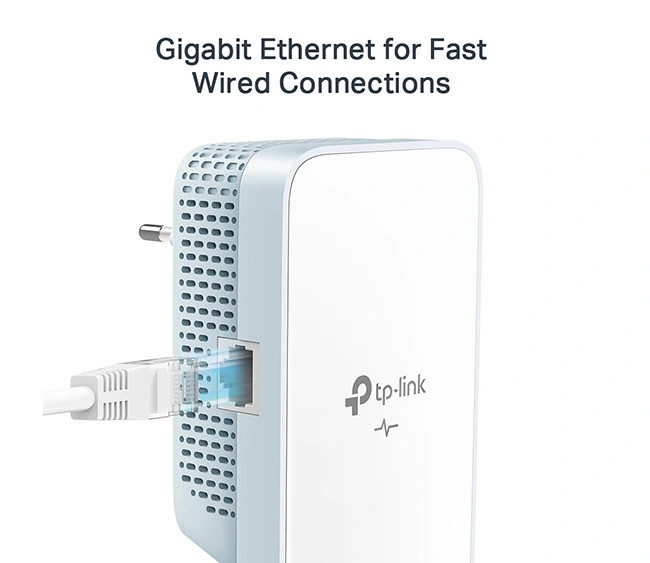

• Gigabit Ethernet Port: Stable wired connection for high-bandwidth devices such as smart TVs, consoles, or PCs.
• Plug and Play: No configuration needed – connect and start using instantly.
• Multiple Extenders Support: Expand your network by adding more TL-WPA7517 units.

LED Indicators:

• Powerline connection quality (color-coded)
• Power
• Ethernet/Wi-Fi status

Power Consumption:

• TL-WPA7517: Maximum ~7 W
• TL-PA7017: Maximum ~3 W

Operating Environment:

• Temperature: 0°C to 40°C
• Humidity: 10%–90% non-condensing

Dimensions:

• TL-WPA7517: 140 × 72 × 35 mm
• TL-PA7017: 100 × 60 × 36 mm

Key Features

• AV1000 powerline technology for up to 1 Gbps wired throughput
• AC1200 dual-band Wi-Fi for faster, more reliable wireless connections
• Gigabit Ethernet for high-speed wired devices
• One-touch Wi-Fi cloning for seamless roaming
• Plug-and-play setup with no additional wiring required
• Expandable network with extra powerline units
