TP-Link AC750 Wireless Dual Band Router – TL-ARCHER C20

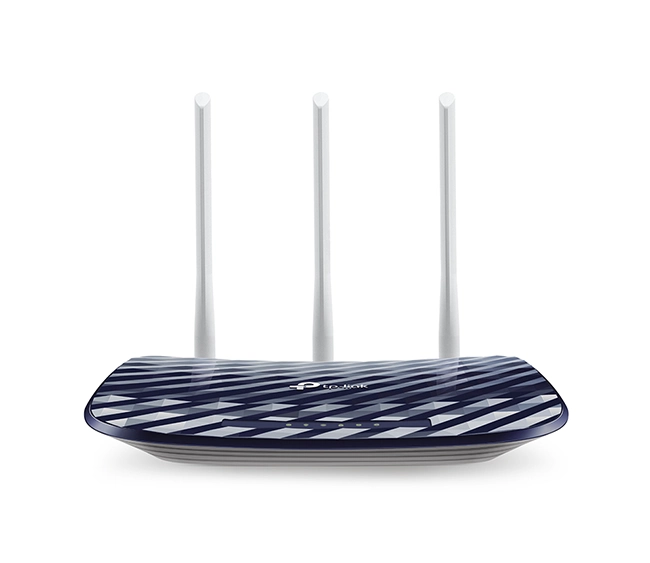

The TP-Link AC750 Wireless Dual Band Router – TL-ARCHER C20 is a dual-band wireless router that supports the 802.11ac Wi-Fi standard, offering improved performance and coverage for small homes and SOHO environments. With three external antennas, multiple operation modes, and essential security features, it provides a stable and flexible networking solution for basic to moderate internet use.

⚙️ Hardware Specifications

• Model: Archer C20
• Wireless Standards:
  • 5 GHz: IEEE 802.11ac/n/a
  • 2.4 GHz: IEEE 802.11n/g/b
• Frequency: Dual-Band (2.4 GHz + 5 GHz)
• Wi-Fi Speed:
  • 2.4 GHz: up to 300 Mbps
  • 5 GHz: up to 433 Mbps
  • Total: AC750
• Processor: 1x Single-core SoC
• Antennas: 3 × external fixed antennas
• Ethernet Ports:
  • 1 × 10/100 Mbps WAN port
  • 4 × 10/100 Mbps LAN ports
• Buttons:
  • Power On/Off
  • WPS/Reset
  • Wi-Fi On/Off
• Power Supply: 9 V / 0.6 A DC adapter
• LED Indicators: Power, Internet, LAN, WLAN (2.4/5GHz), WPS
• Dimensions: 230 × 144 × 35 mm
• Mounting: Desktop (wall-mountable design)

🌐 Software & Features

• Operation Modes:
  • Router Mode
  • Access Point Mode
  • Range Extender Mode
  • EasyMesh support (on newer firmware)
• Guest Network:
  • 1 × 2.4 GHz Guest SSID
  • 1 × 5 GHz Guest SSID
• QoS: Basic bandwidth control
• Security:
  • WPA-PSK / WPA2-PSK
  • SPI Firewall
  • IP and MAC address binding
  • DoS protection
• Parental Controls: URL and time scheduling
• NAT Forwarding: Virtual Server, Port Triggering, UPnP, DMZ
• VPN Pass-Through: PPTP, L2TP, IPSec
• Dynamic DNS: Supported (DynDNS, NO-IP, Comexe)
• IPv6 Support: Yes
• Management:
  • Web interface
  • TP-Link Tether app

🌡 Environmental

• Operating Temperature: 0°C ~ 40°C
• Storage Temperature: -40°C ~ 70°C
• Operating Humidity: 10% ~ 90% non-condensing
• Storage Humidity: 5% ~ 90% non-condensing
• Certifications: CE, FCC, RoHS

📝 Meta Description

TP-Link AC750 Wireless Dual Band Router – TL-ARCHER C20 is an AC750 dual-band wireless router with 300 Mbps on 2.4 GHz and 433 Mbps on 5 GHz. It features three antennas, Fast Ethernet ports, guest networks, EasyMesh support, and robust security for small home and SOHO users.
