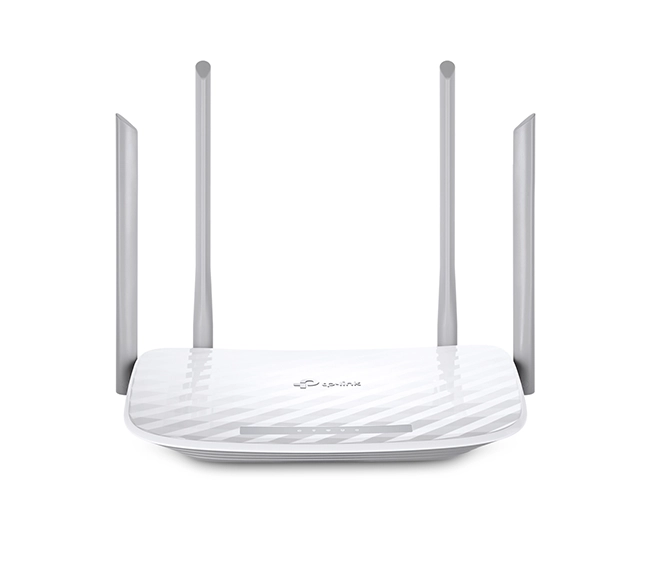

TP-Link AC1200 Wireless Dual Band Router – TL-ARCHER C50

The TP-Link AC1200 Wireless Dual Band Router – TL-ARCHER C50 is a dual-band wireless router designed for home or small office environments. Offering speeds of up to 1200 Mbps (300 Mbps on 2.4 GHz and 867 Mbps on 5 GHz), this router provides stable Wi-Fi coverage with its four external antennas and robust feature set. It includes USB sharing, guest network support, parental controls, and multi-mode operation for enhanced flexibility.

⚙️ Hardware Specifications

• Model: Archer C50 (AC1200)
• Wi-Fi Standard: IEEE 802.11ac/n/a on 5 GHz, IEEE 802.11n/g/b on 2.4 GHz
• Wireless Speed:
  • 2.4 GHz: Up to 300 Mbps
  • 5 GHz: Up to 867 Mbps
• Processor: Single-core chipset
• Antennas: 4 external fixed antennas
• Frequency: Dual-band (2.4 GHz and 5 GHz)
• Ports:
  • 1 × 10/100 Mbps WAN
  • 4 × 10/100 Mbps LAN
  • 1 × USB 2.0 port
• Buttons:
  • Power On/Off
  • WPS/Reset
  • Wi-Fi On/Off
• Power Supply: 9V DC / 0.85A
• LED Indicators: Power, Internet, 2.4 GHz, 5 GHz, LAN, WPS
• Dimensions: 230 × 144 × 35 mm
• Mounting: Desktop or wall-mountable

🌐 Software Features

• Operation Modes:
  • Router
  • Access Point
  • Range Extender
  • EasyMesh (depending on firmware version)
• Wireless Functions:
  • Enable/Disable Wireless Radio
  • WDS Bridge
  • WMM
  • Wireless Statistics
• Security:
  • WPA/WPA2-PSK
  • SPI Firewall
  • Access Control (MAC filtering)
  • IP and MAC binding
• Parental Controls:
  • Time and URL-based restrictions
• Guest Network:
  • 2.4 GHz and 5 GHz guest SSIDs
• NAT Forwarding:
  • Virtual Server
  • Port Triggering
  • DMZ
  • UPnP
• Dynamic DNS:
  • Supports DynDNS, NO-IP
• VPN Support:
  • PPTP, L2TP, IPsec pass-through
• Management:
  • Web UI
  • TP-Link Tether App
• IPv6 Support: Yes
• QoS: Bandwidth Control based on IP

🌡 Environmental

• Operating Temperature: 0°C to 40°C
• Storage Temperature: -40°C to 70°C
• Operating Humidity: 10% to 90% non-condensing
• Storage Humidity: 5% to 90% non-condensing
• Certifications: CE, FCC, RoHS

📝 Meta Description

TP-Link AC1200 Wireless Dual Band Router – TL-ARCHER C50 is a dual-band AC1200 router featuring 300 Mbps on 2.4 GHz and 867 Mbps on 5 GHz, four external antennas, USB 2.0 sharing, guest network support, and advanced parental controls for enhanced home or office connectivity.
