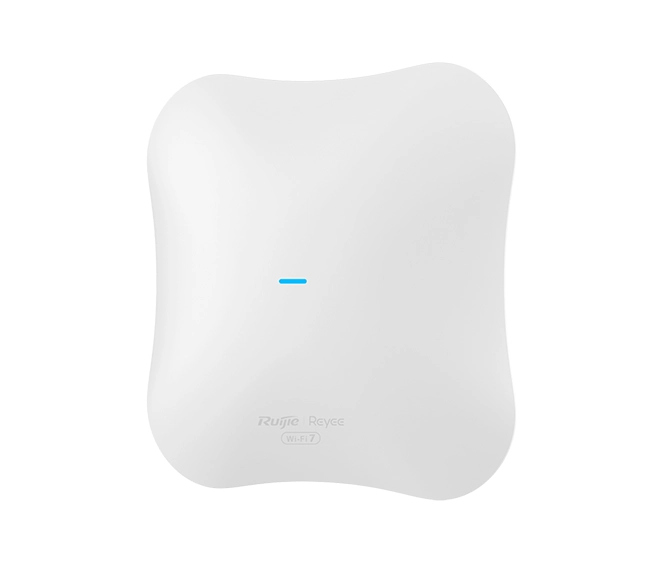

RG-RAP72Pro, Reyee Wi-Fi 7 BE5000 Dual-Band Ceiling Access Point

The RG-RAP72Pro, Reyee Wi-Fi 7 BE5000 Dual-Band Ceiling Access Point is a high-performance, enterprise-class ceiling-mount access point built on the latest Wi-Fi 7 (802.11be) standard. It is designed to deliver ultra-low latency, higher throughput, and superior multi-device efficiency for modern business networks, making it ideal for offices, campuses, hospitality, and high-density indoor deployments.

Product Overview

The RG-RAP72 Pro BE5000 introduces next-generation Wi-Fi 7 technologies such as Multi-Link Operation (MLO), enhanced OFDMA, and advanced MU-MIMO, significantly improving spectrum utilization and user experience. Combined with a 2.5 Gigabit Ethernet uplink and centralized cloud or controller management, it provides a future-ready wireless foundation for growing enterprises.

Wireless Specifications

• Wireless Standard: Wi-Fi 7 (IEEE 802.11be)
• Wireless Class: BE5000
• Frequency Bands: Dual-band (2.4 GHz + 5 GHz)
• Maximum Data Rate:
  • 5 GHz: Up to 4323 Mbps
  • 2.4 GHz: Up to 688 Mbps
• Spatial Streams: High-efficiency multi-stream architecture
• Modulation: Advanced 4096-QAM support
• Antenna Type: Built-in high-gain omnidirectional antennas

Wired Interface & Power

• Ethernet Port:
  • 1 × 2.5 Gigabit Ethernet (RJ45)
• PoE Support: IEEE 802.3at
• Power Supply: PoE powered (no external adapter required)
• Power Efficiency: Optimized for enterprise PoE budgets

Performance & Wi-Fi 7 Features

• Multi-Link Operation (MLO): Concurrent multi-band transmission for reduced latency
• OFDMA: Improved efficiency in high-client environments
• MU-MIMO: Simultaneous multi-user transmission
• Band Steering: Automatic client optimization
• Fast Roaming: Seamless handover for mobile users
• High-Density Optimization: Stable performance under heavy load

Security & Network Management

• Security Standards: WPA3, WPA2-Enterprise, captive portal support
• Network Isolation: VLAN and SSID-based segmentation
• Management Options:
  • Ruijie Cloud management
  • Centralized on-premises controller
• Monitoring: Real-time client, RF, and traffic analytics
• Deployment: Zero-touch provisioning and remote management

Physical & Environmental Specifications

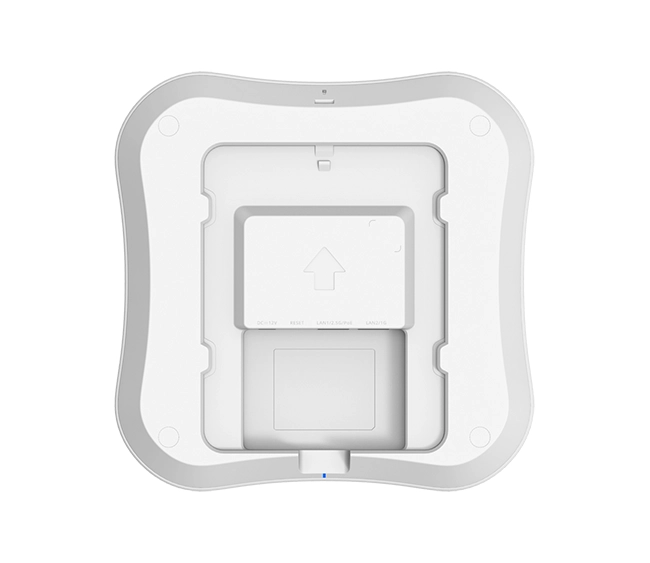

• Mounting Type: Ceiling-mount (indoor use)
• Design: Slim, enterprise-grade enclosure
• Cooling: Fanless, silent operation
• Reliability: Designed for 24/7 continuous operation

Typical Deployment Scenarios

• Corporate offices and enterprise buildings
• Universities and training institutions
• Hotels, malls, and conference facilities
• High-density Wi-Fi 7 indoor environments

Key Features (E-commerce Optimized)

• Wi-Fi 7 BE5000 dual-band ceiling access point
• Ultra-low latency with Multi-Link Operation (MLO)
• 2.5G Ethernet uplink for high-speed backhaul
• Optimized for high-density enterprise deployments
• PoE-powered for clean ceiling installations
• Advanced security with WPA3 and VLAN support
• Cloud or controller-managed for easy scalability

Meta Description

Ruijie RG-RAP72Pro, Reyee Wi-Fi 7 BE5000 Dual-Band Ceiling Access Point delivers next-generation dual-band wireless performance, 2.5G Ethernet uplink, PoE power, and enterprise-grade security for high-density indoor networks.
