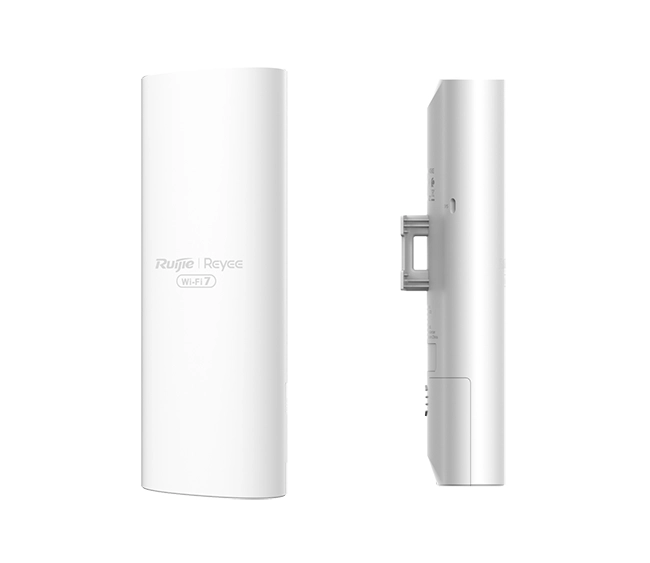

The RG-RAP72Pro-OD, BE5040 Wi-Fi 7 Outdoor Versatile Access Point is a next-generation Wi-Fi 7 (802.11be) access point designed for both indoor and outdoor deployments, delivering high throughput, ultra-low latency, and reliable coverage in demanding environments. Built for enterprises, campuses, hospitality, and public spaces, the RG-RAP72Pro-OD combines BE5040-class wireless performance, ruggedized outdoor design, and centralized cloud management to support future-ready wireless networks.

Product Overview

The RG-RAP72Pro-OD leverages advanced Wi-Fi 7 technologies such as Multi-Link Operation (MLO), enhanced OFDMA, and next-generation MU-MIMO, enabling efficient handling of high client density and latency-sensitive applications. Its weather-resistant enclosure allows seamless deployment indoors or outdoors without compromising performance or reliability.

Wireless Specifications

• Wireless Standard: Wi-Fi 7 (IEEE 802.11be)
• Wireless Class: BE5040
• Frequency Bands: Dual-band (2.4 GHz + 5 GHz)
• Maximum Data Rate:
  • 5 GHz: Up to 4323 Mbps
  • 2.4 GHz: Up to 688 Mbps
• Total Combined Throughput: Up to 5040 Mbps
• Modulation: Up to 4096-QAM
• Spatial Streams: High-efficiency multi-stream architecture
• Antenna Type: Built-in high-gain omnidirectional antennas

Wired Interface & Power

• Ethernet Ports:
  • 1 × 2.5 Gigabit Ethernet (RJ45)
• Power Supply:
  • IEEE 802.3at PoE
• Installation Power: Single-cable PoE deployment
• Energy Efficiency: Optimized PoE power consumption

Wi-Fi 7 & Performance Features

• Multi-Link Operation (MLO): Simultaneous multi-band data transmission
• OFDMA: Efficient spectrum usage for high client density
• MU-MIMO: Concurrent multi-user communication
• Advanced Roaming: Seamless mobility across access points
• Load Balancing: Intelligent client distribution
• High-Density Optimization: Stable performance in crowded environments

Security Features

• Encryption Standards: WPA3, WPA2-Enterprise
• Authentication: 802.1X, captive portal support
• Network Segmentation: VLAN and SSID isolation
• Threat Protection: Secure access control and traffic protection

Management & Deployment

• Management Options:
  • Ruijie Cloud management
  • Centralized controller management
• Provisioning: Zero-touch deployment
• Monitoring: Real-time RF, traffic, and client analytics
• Maintenance: Remote firmware upgrades and diagnostics

Physical & Environmental Specifications

• Deployment Type: Indoor / Outdoor versatile design
• Enclosure: Rugged, weather-resistant housing
• Environmental Rating: Suitable for outdoor exposure
• Cooling: Fanless design for silent operation
• Mounting Options: Wall or pole mounting supported
• Operating Mode: 24/7 enterprise-grade operation

Ideal Use Scenarios

• Outdoor campuses and courtyards
• Warehouses and industrial facilities
• Hotels, resorts, and hospitality outdoor areas
• Shopping centers and public venues
• Large indoor spaces requiring extended coverage

Key Features (E-commerce Optimized)

• Wi-Fi 7 BE5040 dual-band indoor/outdoor access point
• Ultra-low latency with Multi-Link Operation (MLO)
• 2.5G Ethernet uplink for high-speed backhaul
• Rugged weather-resistant design for outdoor deployment
• PoE-powered for simplified installation
• Enterprise-grade security with WPA3 and VLAN support
• Cloud and controller-managed for scalable networks
