MikroTik RBcAPL-2nD (cAP lite)
- Discreet 2.4 GHz Wi-Fi access point
- Clean white ceiling-mount design
- Up to 150 Mbps throughput
- RouterOS Level 4 license
- PoE-in or microUSB powering
- Compact and lightweight
- Ideal for hospitality or office use
- CAPsMAN support for centralized control

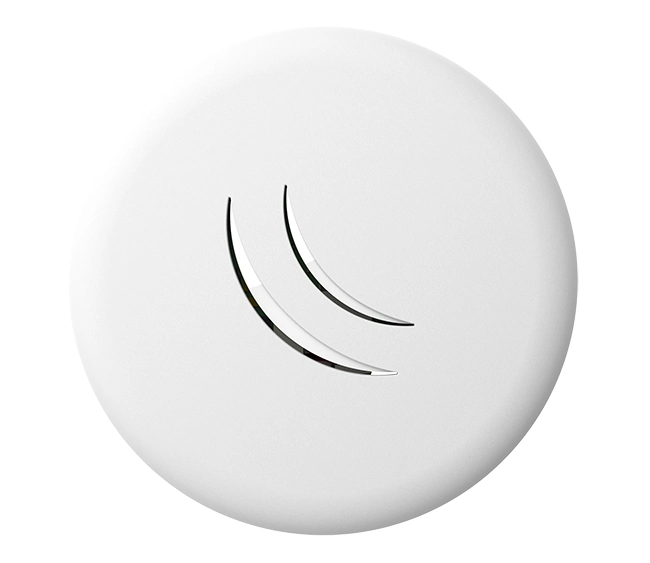

The MikroTik RBcAPL-2nD (cAP lite), also known as the cAP lite, is an ultra-compact 2.4 GHz ceiling or wall-mountable access point. Designed for minimal visibility in home or enterprise environments, it features a clean aesthetic, low power consumption, and full RouterOS capabilities. It is particularly suited for hospitality or office environments where a discreet yet reliable wireless solution is required.
🧠 Core Hardware Specifications
- Model: RBcAPL-2nD
- Product Name: cAP lite
- CPU: QCA9533, 650 MHz
- Architecture: MIPS 32-bit
- RAM: 64 MB
- Storage: 16 MB Flash
- Operating System: RouterOS
- License Level: 4
📶 Wireless Specifications
- Wireless Standards: 802.11b/g/n (Wi-Fi 4)
- Frequency Band: 2.4 GHz only
- Chains: 1×1 SISO
- Maximum Data Rate: 150 Mbps
- Antenna Gain: ~1.5 dBi (integrated)
- Wireless Modes: AP, client, bridge, repeater, WDS
🌐 Networking Interfaces
- Ethernet Ports:
- 1 × 10/100 Mbps Fast Ethernet
- Supports passive PoE-in
⚡ Powering Options
- Power Input Options:
- MicroUSB (5 V DC)
- Passive PoE-in (10–60 V DC)
- Power Consumption: Max 4 W
- PoE Standards Supported: Passive (non-802.3af)
- Power Adapter Included: Yes
🔐 Software & Features
- RouterOS Level 4: Supports AP and bridge mode
- Firewall & NAT: Fully supported
- VPN: Basic support for PPTP, L2TP, IPsec
- Management Interfaces: Winbox, WebFig, SSH, Telnet, CLI
- Monitoring Tools: Ping, Torch, Traffic monitor, Packet Sniffer
- Deployment Tools: CAPsMAN compatible (central management)
📦 Physical & Environmental
- Enclosure: Plastic, wall/ceiling-mountable
- Dimensions: 88 × 52 × 20 mm
- Weight: ~69 g

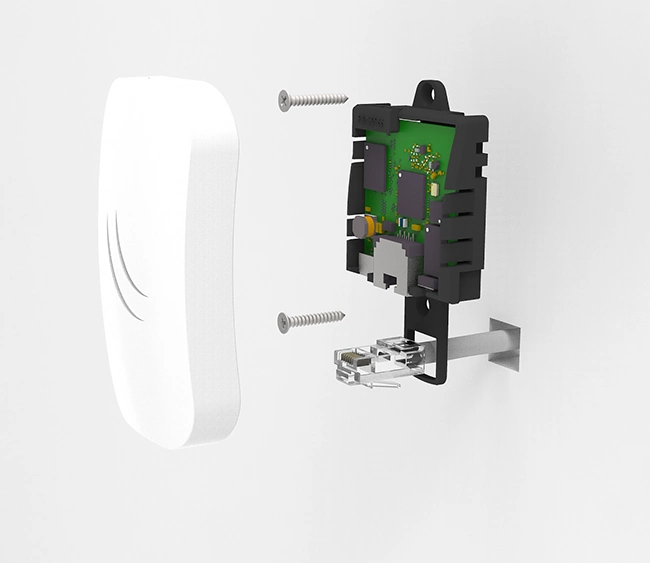

- Mounting Options:
- Wall-mount bracket included
- Desktop or ceiling placement
- Operating Temperature: -20°C to +70°C
- Cooling: Passive
📝 Meta Description
MikroTik RBcAPL-2nD (cAP lite) is a compact 2.4 GHz ceiling or wall-mountable access point with 150 Mbps throughput, PoE-in or microUSB power, and RouterOS Level 4 license—ideal for hospitality, office, or discreet indoor wireless coverage.
