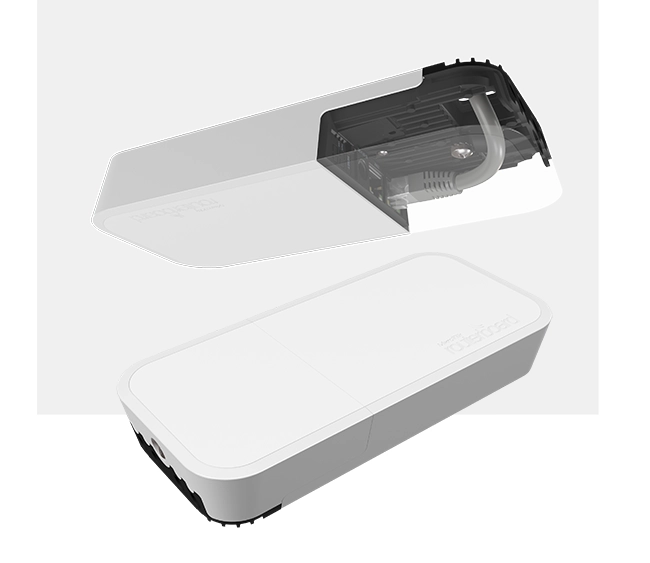

MikroTik RBwAPG-5HacD2HnD (wAP ac)

The MikroTik RBwAPG-5HacD2HnD (wAP ac), commonly known as the wAP ac, is a weatherproof dual-band wireless access point designed for both indoor and outdoor installations. Housed in a sleek, durable enclosure, it delivers robust performance with simultaneous dual-band (2.4 GHz and 5 GHz) Wi-Fi, a Gigabit Ethernet port, and full RouterOS functionality. Ideal for home, office, or outdoor deployments like terraces, yards, and halls.

🧠 Core Hardware Specifications

• Model: RBwAPG-5HacD2HnD
• Product Name: wAP ac
• CPU: QCA9556, 720 MHz
• Architecture: MIPS 32-bit
• RAM: 128 MB
• Storage: 16 MB Flash
• Operating System: RouterOS
• License Level: 4

📶 Wireless Specifications

• Wireless Standards: 802.11a/b/g/n/ac
• Bands:
  • 2.4 GHz (Wi-Fi 4) — 2×2 MIMO
  • 5 GHz (Wi-Fi 5) — 2×2 MIMO
• Max Data Rates:
  • 2.4 GHz: Up to 300 Mbps
  • 5 GHz: Up to 867 Mbps
• Antenna Gain:
  • 2.4 GHz: 2.5 dBi
  • 5 GHz: 2.5 dBi
• Chains: 2×2 on both bands
• Antenna Type: Dual integrated antennas
• Wireless Modes: AP, station, WDS, repeater, bridge

🌐 Networking Interfaces

• Ethernet:
  • 1 × 10/100/1000 Mbps Gigabit Ethernet port
  • Passive PoE input support

⚡ Powering Options

• Power Input:
  • Passive PoE-in: 11–57 V via Gigabit Ethernet port
• Power Adapter: Included (24 V 0.8 A)
• Power Consumption: ~8 W max

🔐 Software & Features

• RouterOS Level 4 license: Allows full AP, routing, NAT, firewall, and VPN functions
• VPN Support: IPsec, OpenVPN, PPTP, L2TP
• Routing Protocols: Static, OSPF, BGP
• Firewall/NAT: Fully supported
• Management Tools: Winbox, WebFig, CLI, SNMP
• Monitoring Tools: Torch, Ping, Bandwidth Test, Packet Sniffer

📦 Physical & Environmental

• Enclosure: IP54-rated weatherproof plastic

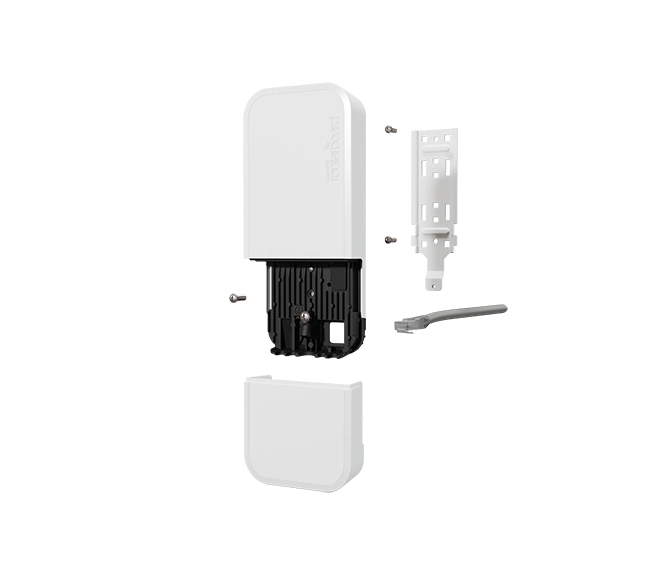

• Mounting:
  • Wall and ceiling mount kit included
  • Designed for outdoor use
• Dimensions: 185 × 85 × 30 mm
• Weight: ~289 g
• Operating Temperature: -30°C to +60°C
• LED Indicators: Power and wireless status

📝 Meta Description

MikroTik RBwAPG-5HacD2HnD (wAP ac) is a compact weatherproof dual-band access point offering up to 867 Mbps on 5 GHz and 300 Mbps on 2.4 GHz, with Gigabit Ethernet, PoE-in, and RouterOS Level 4—ideal for indoor or outdoor wireless deployments.
