MikroTik CRS318-16P-2S+OUT (netPower 16P)
- 16 × Gigabit Ethernet ports with 802.3af/at PoE-out
- 2 × 10G SFP+ fiber uplink ports
- Outdoor IP55-rated enclosure
- Dual redundant DC power inputs
- Managed with SwOS or RouterOS (Level 5 license)
- Fanless, passive cooling design
- Supports passive PoE and 802.3af/at PoE standards

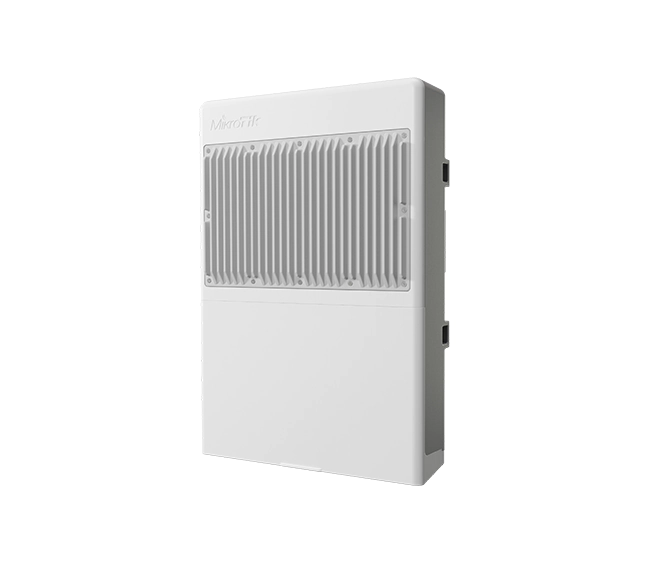

The MikroTik CRS318-16P-2S+OUT Cloud Router Switch is a high-performance outdoor cloud router switch designed for demanding network setups in fiber-to-the-home (FTTH), campus, or ISP deployments. Featuring 16 Gigabit Ethernet ports with PoE-out support and 2 high-speed 10G SFP+ uplink ports, this switch provides reliable and scalable connectivity for outdoor installations.
With passive and 802.3af/at PoE options, dual redundant power inputs, and a weather-resistant IP55-rated enclosure, it’s ideal for powering multiple PoE devices such as IP cameras, access points, and CPEs. Easily manageable via RouterOS or SwOS, the CRS318-16P-2S+OUT offers flexibility, power, and ruggedness for professional networking environments.
The CRS318-16P-2S+OUT is a MikroTik Cloud Router Switch specifically designed for outdoor use. It is part of MikroTik’s netPower series, suitable for fiber-to-the-home (FTTH) and outdoor PoE deployments. This switch is ideal for ISPs, apartment complexes, or campus environments.
🔧 Product Overview
Model Name: CRS318-16P-2S+OUT
Product Type: Cloud Router Switch
Enclosure: Outdoor, IP55-rated, passive cooling
Mounting: Pole and wall mount support
⚙️ Key Specifications
| Specification | Details |
|---|---|
| Ethernet Ports | 16 × 10/100/1000 Mbps PoE-out Ethernet ports |
| PoE Output | Passive PoE and 802.3af/at on ports 1–16 (max 30W/port) |
| SFP+ Ports | 2 × 10G SFP+ ports |
| Switch Chip | 98DX226S |
| Memory (RAM) | 256 MB |
| Storage | 16 MB Flash |
| CPU | 800 MHz 98DX226S (dual-core) |
| Operating System | SwOS / RouterOS (Level 5 license) |
| Max Power Consumption | 316 W (with attachments); 29 W (without PoE load) |
| Input Voltage | 18–57 V DC via two DC inputs (redundant power) |
| Cooling Type | Passive (fanless) |
| Temperature Range | -40°C to +70°C |
| Dimensions | 303 x 212 x 78 mm |
⚡ Power & PoE Details
- 16 PoE-out ports can supply up to 30W per port, shared across a total budget of 315W (with sufficient power input).
- Supports both passive PoE and 802.3af/at standards.
- Redundant dual input (supports separate power sources for failover).
🌐 MikroTik CRS318-16P-2S+OUT Cloud Router Switch Networking & Use Case
- Dual 10G SFP+ uplinks provide high-speed connectivity to a backbone or data center.
- Works well in multi-dwelling units (MDUs), campus networks, or fiber distribution hubs.
- Designed for outdoor deployments; highly durable with IP55-rated enclosure.
📦 Package Contents
- CRS318-16P-2S+OUT switch
- Mounting kit (for wall/pole installation)
- User manual
- Power supply not included (requires external DC power or PoE injector)
| Brand | MikroTik |
|---|
