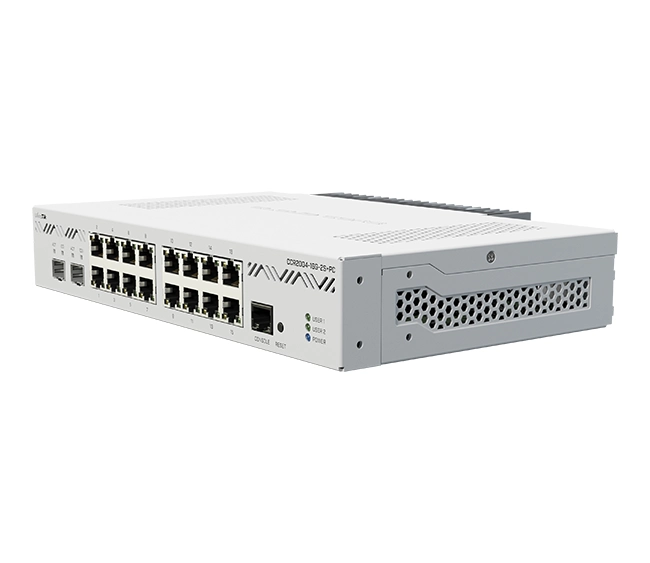

MikroTik CCR2004-16G-2S+PC Router
- Quad-Core 1.7 GHz 64-bit ARM CPU – Enterprise-grade performance
- 4 GB DDR4 RAM – Handles complex routing tasks with ease
- 16 × Gigabit Ethernet Ports – High-capacity LAN connectivity
- 2 × 10G SFP+ Cages – For fast fiber uplinks or backhaul
- RouterOS v7 with Level 6 License – Full advanced networking features
- Silent Fanless Design – Ideal for offices, studios, and home networks
- Low Power Consumption (~33W) – Energy-efficient operation
- Metal Desktop Case – Durable and compact form factor
- Console and USB 3.0 Ports – Easy management and expansion
- Perfect for ISPs, branch offices, and noise-sensitive environments
Like the other models in CCR2004 series, this CCR also features the Amazon Annapurna Labs Alpine v2 CPU with 4x 64-bit ARMv8-A Cortex-A57 cores. While this CPU is running at 1.2 GHz, the router can be 3x as fast than the previous generation CCR’s. This is the silent powerhouse. Enjoy all the power of a real CCR in peace and quiet. Get rid of all the hum and buzz in your office, studio, server room or homelab without sacrificing the performance!
The new router has 18 wired ports, including 16x Gigabit Ethernet ports and two 10G SFP+ cages. It also has a RJ-45 console port on the front panel.
Each group of 8 Gigabit Ethernet ports is connected to a separate Marvell Amethyst family switch-chip. Each switch chip has a 10 Gbps full-duplex line connected to the CPU. The same goes for each SFP+ cage – a separate 10 Gbps full-duplex line. Boards come with 4GB of DDR4 RAM and 128MB of NAND storage.
🖥️ MikroTik CCR2004-16G-2S+PC
Silent, Fanless Cloud Core Router with 16 Gigabit Ports & Dual 10G SFP+
🧠 Product Overview
The CCR2004-16G-2S+PC is the passively cooled (fanless) version of MikroTik’s powerful Cloud Core Router line. It offers carrier-grade performance with a 64-bit quad-core ARM CPU, 16 Gigabit Ethernet ports, and 2 × 10G SFP+ cages, all in a silent desktop case, ideal for noise-sensitive environments such as offices, studios, or homes.
🔧 Hardware Specifications
| Component | Details |
|---|---|
| CPU | Annapurna Labs Alpine v2 AL32400 – 64-bit ARM Quad-Core @ 1.7 GHz |
| CPU Architecture | ARMv8-A (AArch64) |
| CPU Core Count | 4 |
| RAM | 4 GB DDR4 |
| Storage | 128 MB NAND |
| Operating System | RouterOS v7 (License Level 6) |
| Form Factor | Desktop/Wall-Mount (Fanless Case) |
| Case Material | Metal |
| Dimensions | 320 × 185 × 44 mm |
🌐 Interfaces & Connectivity
- 16 × Gigabit Ethernet Ports (10/100/1000 Mbps)
- 2 × 10G SFP+ Ports (for uplink/fiber connections)
- 1 × RJ45 Serial Console Port
- 1 × USB 3.0 Type-A Port
🔒 Routing & Performance
- RouterOS v7 Support: BGP, OSPF, MPLS, VRF, VLAN, bonding, scripting, firewall, VPN
- Performance:
- 3+ Gbps real-world throughput
- Software-based IPsec support
- Ideal Use Cases:
- Small/medium ISPs
- Office networks
- Branch routers
- Noise-sensitive environments
⚡ Power & Cooling
| Feature | Details |
|---|---|
| Power Input | 100–240V AC (internal PSU) |
| Max Power Consumption | ~33W |
| Cooling | Passive – fanless, silent operation |
| Operating Temp | -20°C to +60°C |
📦 What’s in the Box
- CCR2004-16G-2S+PC Router
- Internal Power Supply (AC)
- Power Cable
- Quick Start Guide
🏆 Why Choose CCR2004-16G-2S+PC?
✅ Silent, Fanless Operation – Perfect for offices, homes & studios
✅ Quad-Core 64-bit ARM CPU @ 1.7 GHz – Carrier-grade performance
✅ 4 GB RAM & RouterOS v7 L6 – Full routing capabilities
✅ 16 × Gigabit + 2 × 10G SFP+ Ports – Exceptional port density
✅ Metal Enclosure with Passive Cooling – Durable & silent
✅ Efficient Power Use (~33W) – Low operating cost
| Brand | MikroTik |
|---|
