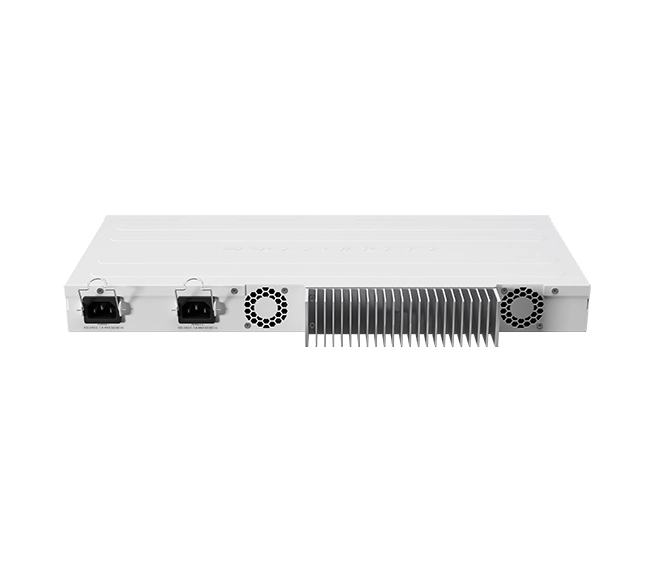

MikroTik CCR2004-1G-12S+2XS Router
- Quad-Core 1.7 GHz 64-bit ARM CPU – High-performance routing power
- 4 GB DDR4 RAM – Ample memory for complex configurations
- 12 × 10G SFP+ Ports – High-speed fiber connectivity
- 2 × 25G SFP28 Ports – Ultra-fast uplinks for data centers
- 1 × Gigabit Ethernet Port – For management or LAN fallback
- RouterOS v7 with Level 6 License – Full enterprise-grade features
- Redundant Dual Internal Power Supplies – Built-in failover protection
- 1U Rackmount Metal Case – Durable and rack-ready
- Smart Fan Cooling – Efficient thermal control
- Ideal for ISPs, Data Centers, and Enterprise Core Networks
The “Improvise. Adapt. Overcome.” mindset can be very helpful, but sometimes you simply need a device that works and solves the problem without additional tinkering. The CCR2004-1G-12S+2XS does just that – forget about all connectivity troubles and expand your setup in any way you please. This handy router features 12 x 10G SFP+ and 2 x 25G SFP28 ports.
CCR2004-1G-12S+2XS is our router with the most powerful single-core performance so far. It provides incredible results in single tunnel (up to 3.4 Gbps) and BGP feed processing.
⚙️ MikroTik CCR2004-1G-12S+2XS
High-Performance Cloud Core Router with 12× 10G SFP+ & 2× 25G SFP28
🧠 Product Overview
The CCR2004-1G-12S+2XS is a powerhouse in the MikroTik Cloud Core Router family, featuring a quad-core 64-bit ARM CPU, 12 × 10G SFP+ ports, and 2 × 25G SFP28 ports, designed for data centers, enterprise backbones, and ISP core routing. With robust performance, low latency, and extensive connectivity, it’s ideal for networks that demand serious speed and reliability.
🔧 Hardware Specifications
| Component | Details |
|---|---|
| CPU | Annapurna Labs Alpine v2 AL32400 – 64-bit ARM Quad-Core @ 1.7 GHz |
| Architecture | ARMv8-A (AArch64) |
| CPU Core Count | 4 |
| RAM | 4 GB DDR4 |
| Storage | 128 MB NAND |
| Operating System | RouterOS v7 (License Level 6) |
| Form Factor | 1U Rackmount |
| Case Material | Metal |
| Dimensions | 443 × 199 × 44 mm |
🌐 Interfaces & Connectivity
- 12 × 10G SFP+ Cages – High-speed fiber networking
- 2 × 25G SFP28 Cages – Ultra-fast uplinks for modern infrastructure
- 1 × Gigabit Ethernet Port – For management or additional access
- 1 × RJ45 Serial Console Port
- 1 × USB Type-A Port
🔒 Routing & Performance
- RouterOS v7 Support: BGP, OSPF, MPLS, VRF, VLAN, Bonding, Firewall, IPsec, etc.
- Max Throughput:
- Layer 3 forwarding: Up to 20 Gbps total capacity
- Wire-speed switching on most ports
- Ideal for:
- Core routing for ISPs
- Data center aggregation
- High-performance enterprise backbones
⚡ Power & Cooling
| Feature | Details |
|---|---|
| Power Input | 100–240V AC (Dual internal PSUs) |
| Redundant Power | Yes – dual PSU for failover protection |
| Max Power Consumption | ~45W typical |
| Cooling | 4 × Smart-controlled internal fans |
| Operating Temp | -20°C to +60°C |
📦 What’s in the Box
- CCR2004-1G-12S+2XS Router
- Dual Internal Power Supplies
- Rackmount Kit (1U)
- Power Cords
- Quick Start Guide
🏆 Why Choose CCR2004-1G-12S+2XS?
✅ Quad-Core 1.7 GHz 64-bit CPU – Blazing fast data processing
✅ 12 × 10G + 2 × 25G Fiber Ports – Exceptional port density and bandwidth
✅ Redundant Power Supplies – Designed for uninterrupted operation
✅ 4 GB DDR4 RAM & RouterOS v7 – Advanced routing at your fingertips
✅ Ideal for Data Centers, ISPs, and High-Speed Aggregation
| Brand | MikroTik |
|---|
