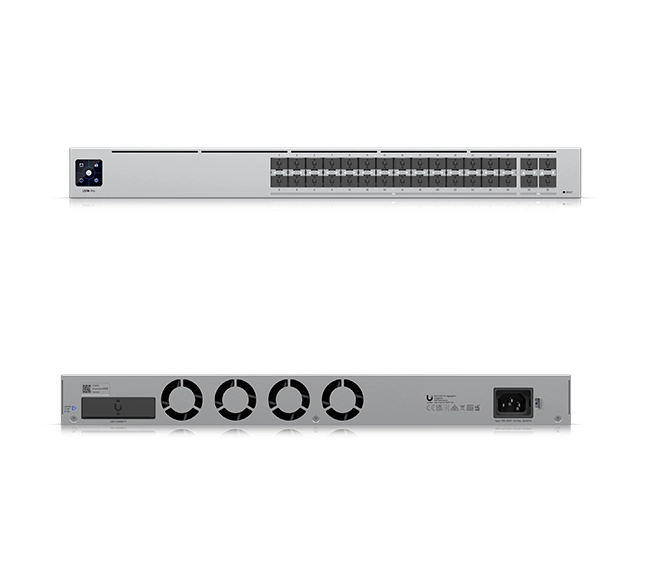

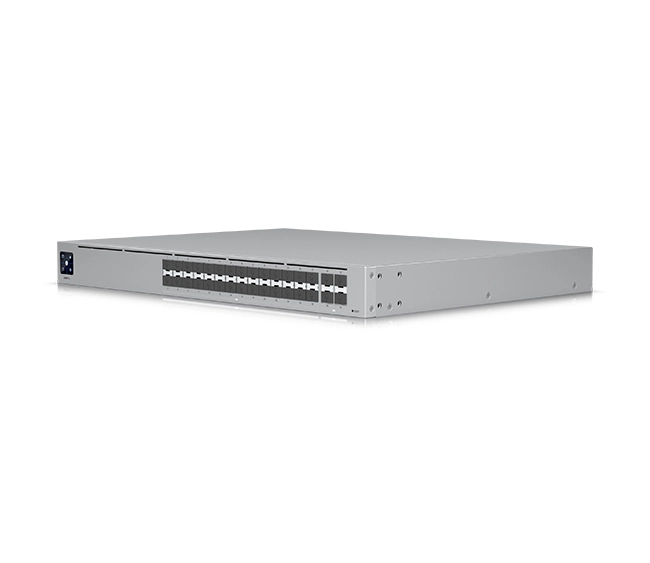

UniFi Hi-Capacity Aggregation (USW-Pro-Aggregation)

The Ubiquiti UniFi Hi-Capacity Aggregation (USW-Pro-Aggregation) is a high-capacity enterprise aggregation switch designed for core and distribution layers in demanding UniFi networks. The Ubiquiti UniFi Switch Pro Aggregation delivers ultra-high-speed fiber connectivity with both 10G and 25G SFP28 interfaces, making it ideal for data centers, campus backbones, service provider environments, and high-performance enterprise networks.

Product Overview

The Ubiquiti UniFi Switch Pro Aggregation (USW-Pro-Aggregation) is engineered to handle massive east–west traffic and high-density uplinks. It serves as a central aggregation point for access switches, servers, and storage systems while offering full centralized management through the UniFi Network application.

Switching & Performance Specifications

• Switching layer: Layer 2 managed switch
• Switching capacity: 760 Gbps
• Forwarding rate: 565 million packets per second
• Non-blocking throughput: Yes
• Jumbo frame support: Yes

Port Configuration

• Total ports: 28
• High-speed ports:
  • 4 × SFP28 ports supporting 1 / 10 / 25 Gbps
  • 24 × SFP+ ports supporting 1 / 10 Gbps
• Auto-negotiation: Supported
• Fiber support: Single-mode and multi-mode via SFP+/SFP28 modules

Network & Switching Features

• VLAN support
• Link aggregation (LACP)
• Spanning Tree Protocol (STP / RSTP)
• Port isolation
• Storm control
• Port mirroring
• Quality of Service (QoS) and traffic prioritization

UniFi Management & Monitoring

• Management platform: UniFi Network application
• Centralized configuration and monitoring
• Real-time port statistics and throughput visibility
• UniFi plug-and-play device adoption
• Firmware and configuration management via UniFi OS

Hardware & Physical Specifications

• Form factor: 1U rackmount switch
• Rack compatibility: Standard 19-inch racks
• Cooling: Active cooling with multiple internal fans
• Chassis material: Industrial-grade metal enclosure
• Color: Silver

Power Specifications

• Power input: AC power
• Power supply: Dual internal redundant power supplies
• High-availability design for critical network roles

Deployment Use Cases

• Core and aggregation layer switching
• Data center and server room backbones
• High-speed uplinks for UniFi access switches
• Storage, virtualization, and high-throughput workloads

Key Features

• 24 × 10G SFP+ and 4 × 25G SFP28 high-capacity ports
• Massive 760 Gbps switching capacity with non-blocking performance
• Redundant power supplies for enterprise reliability
• Advanced Layer 2 features with UniFi centralized management
• Designed for mission-critical aggregation and backbone networks

Meta Description

Ubiquiti UniFi Hi-Capacity Aggregation (USW-Pro-Aggregation) is a high-capacity enterprise aggregation switch offering 24 × 10G SFP+ and 4 × 25G SFP28 ports, 760 Gbps switching capacity, redundant power supplies, and full UniFi Network integration for core network deployments.

Datasheet
