UniFi Dream Machine Pro (UDM-Pro)
- All-in-one 1U rackmount gateway with firewall, router, switch, NVR, and UniFi OS support
- Dual WAN (1x 1G RJ45, 1x 10G SFP+) with failover and load balancing
- 8x 1G LAN + 1x 10G SFP+ LAN ports
- Quad-core 1.7 GHz CPU, 4 GB RAM, 16 GB storage
- IDS/IPS throughput up to 3.5 Gbps, Deep Packet Inspection, and advanced firewall
- Supports UniFi SD-WAN, VPN (IPsec, WireGuard, OpenVPN, Teleport), and policy-based routing
- Built-in 3.5″ HDD bay for UniFi Protect (NVR)
- Runs UniFi Network, Protect, Access, Talk, and Connect apps
- Redundant power ready via UniFi SmartPower (USP-RPS)

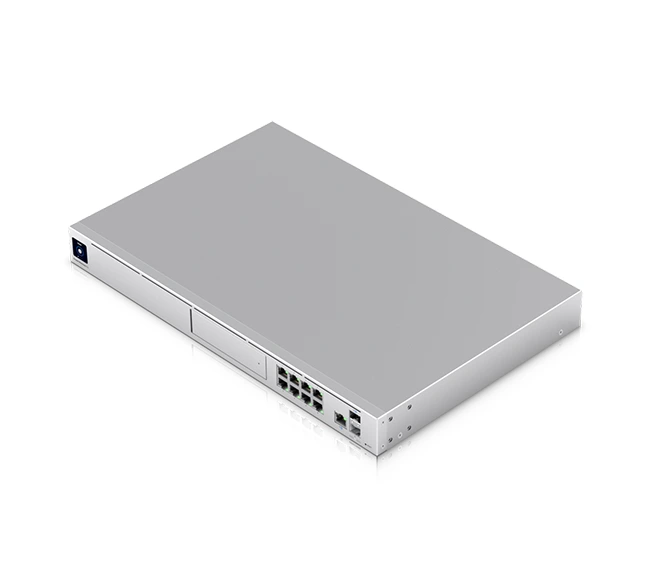

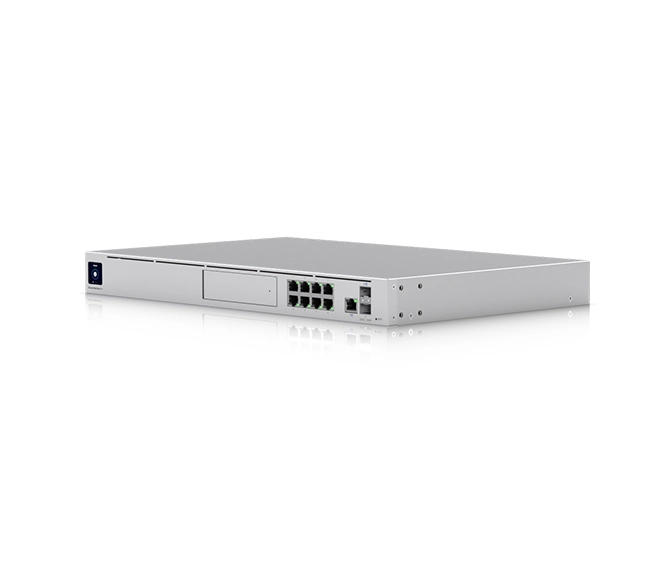

The UniFi Dream Machine Pro (UDM-Pro) is a 1U rackmount, 10Gbps UniFi multi-application system designed for high-performance network management and security in enterprise and SMB environments. It combines a powerful quad-core 1.7 GHz processor, 4 GB of RAM, and 16 GB of onboard storage to run multiple UniFi applications including Network, Protect, Access, Talk, and Connect. The UDM-Pro features dual WAN (1G RJ45 and 10G SFP+) with load balancing and failover, an integrated 8-port Gigabit switch, and a 10G SFP+ LAN port for high-speed uplinks. Security capabilities include advanced firewall features, IDS/IPS with up to 3.5 Gbps throughput, deep packet inspection, and VPN support (IPsec, WireGuard, OpenVPN, and Teleport). It also includes SD-WAN support, policy-based routing, and a 3.5″ HDD bay for UniFi Protect video storage, making it a complete and scalable solution for unified network and device management.
Here are the official specifications for the UniFi Dream Machine Pro (UDM-Pro), as provided by Ubiquiti:
🔧 Hardware Specifications
- Processor: Quad-core ARM® Cortex®-A57 at 1.7 GHz
- Memory: 4 GB DDR4
- Storage: 16 GB eMMC flash
- NVR Storage: (1) 3.5″ HDD bay for UniFi Protect
- Display: 1.3″ touchscreen
- Enclosure: Aluminum CNC and SGCC steel
- Dimensions: 442.4 x 43.7 x 285.6 mm (17.4 x 1.7 x 11.2″)
- Weight: 3.9 kg (8.6 lb)
🌐 Networking Interfaces
- WAN Ports:
- (1) 10G SFP+
- (1) 1G RJ45
- LAN Ports:
- (1) 10G SFP+
- (8) 1G RJ45
- Management Interfaces: Ethernet, Bluetooth
🔐 Security & Performance
- Firewall: Stateful firewall with application-aware Layer 7 filtering
- Threat Management:
- Intrusion Detection and Prevention System (IDS/IPS)
- Deep Packet Inspection (DPI)
- Content filtering (DNS, GeoIP, ad blocking)
- Throughput:
- IDS/IPS: Up to 3.5 Gbps
- VPN Support:
- Site-to-site VPN with Site Magic
- IPsec, OpenVPN, WireGuard, L2TP
- Teleport Zero-Configuration VPN
- OpenVPN client support
🌐 Networking Features
- SD-WAN: License-free SD-WAN support
- Dynamic Routing: OSPF, BGP
- Multi-WAN Load Balancing: Supported
- Policy-Based Routing: Supported
- Advanced QoS: Application, domain, and country-based QoS
- IPv6 Support: Yes
- Additional Features:
- Integrated RADIUS server
- DHCP relay and customizable DHCP server
- IGMP proxy
- Internet quality and outage reporting
🔌 Power & Environmental
- Power Supply: Internal AC/DC, 50W
- Power Method:
- Universal AC input (100–240V AC, 50/60 Hz)
- USP-RPS DC input for redundant power
- Max Power Consumption: 33W
- Operating Temperature: -10 to 40°C (14 to 104°F)
- Operating Humidity: 5 to 95% non-condensing
- Certifications: CE, FCC, IC
📦 UniFi OS Application Support
- Supported Applications:
- UniFi Network
- UniFi Protect
- UniFi Access
- UniFi Talk
- UniFi Connect
- Managed Devices:
- 100+ UniFi devices
- Up to 1,000+ simultaneous users
- Up to 24 HD, 14 2K, or 8 4K cameras
| Brand | Ubiquiti |
|---|
