Ubiquiti UniFi Switch Enterprise XG 24 (USW-EnterpriseXG-24)

The UniFi Switch Enterprise XG 24 (Gen1) – USW-EnterpriseXG-24 is a high-performance, fully managed Layer 3 switch designed for enterprise environments requiring robust connectivity and advanced networking features. It offers a combination of 24 multi-gigabit 10G RJ45 ports and 2 high-speed 25G SFP28 fiber ports, making it ideal for supporting high-density access points, servers, and other network devices. The switch is managed via the UniFi Network Controller, providing centralized management and monitoring capabilities.

🔧 Hardware Specifications

• Ports:
  • 24 × 10G RJ45 ports (auto-sensing 1G/2.5G/5G/10G)
  • 2 × 25G SFP28 fiber ports
• Switching Capacity: 580 Gbps
• Total Non-Blocking Throughput: 290 Gbps
• Forwarding Rate: 431.52 Mpps
• MAC Address Table Size: 32,000 entries
• Layer 3 Features:
  • DHCP Server (Local Networks)
  • DHCP Relay
  • Inter-VLAN Routing (Local Networks)
  • Static Routing (Local Networks)
• Layer 2 Features:
  • LACP Port Aggregation
  • STP & RSTP
  • QoS (DSCP)
  • Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron)
  • Advanced IGMP Configuration (Querier, Fast Leave, Router Port)
  • IGMP Snooping
  • 802.1X Control
  • MAC-Based ACLs & Device Isolation
  • DHCP Snooping & Guarding
  • Egress Rate Limit
  • Flow Control
  • Storm Control
  • Multicast & Broadcast Rate Limiting
  • MAC Address Blocking
  • IP-Based ACLs & Network Isolation
  • MAC-Based Port Restriction
  • Port Isolation
  • Port Mirroring
  • Jumbo Frames
  • LLDP-MED
  • Voice VLAN
  • Loop Protection

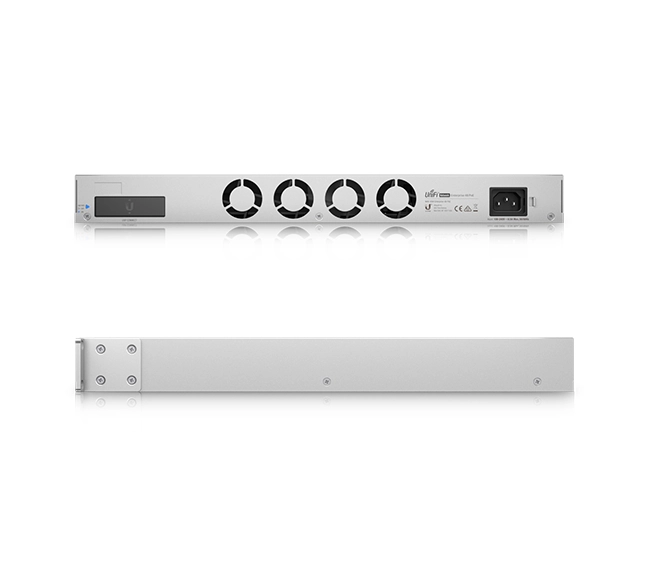

• Power Supply:
  • Internal AC/DC, 100W
  • Supports UniFi SmartPower Redundant Power System (USP-RPS) for backup power
• Power Consumption:
  • Maximum (excluding PoE output): 100W
• Power Input:
  • Universal AC input: 100–240V AC, 50/60 Hz
  • USP-RPS DC input: 11.5V DC, 8.7A
• Physical Dimensions:
  • 442 x 44 x 285 mm (17.4 x 1.7 x 11.2″)
  • Weight: 4.5 kg (9.9 lb) without mounting brackets
• Enclosure Material: SGCC steel
• Mounting: Rack mount (1U)
• Display: 1.3″ color touchscreen for system and connection insights
• Operating Temperature: -5 to 40° C (23 to 104° F)
• Operating Humidity: 10 to 95% noncondensing
• Certifications: CE, FCC, IC
• ESD/EMP Protection:
  • Air: ±16kV
  • Contact: ±12kV

The UniFi Switch Enterprise XG 24 (Gen1) is ideal for enterprise environments that require a high-performance, multi-gigabit switch with advanced Layer 2 and Layer 3 features, robust connectivity options, and seamless integration into the UniFi ecosystem. Its combination of 10G RJ45 ports and 25G SFP28 uplinks ensures flexibility and scalability for growing network demands.
