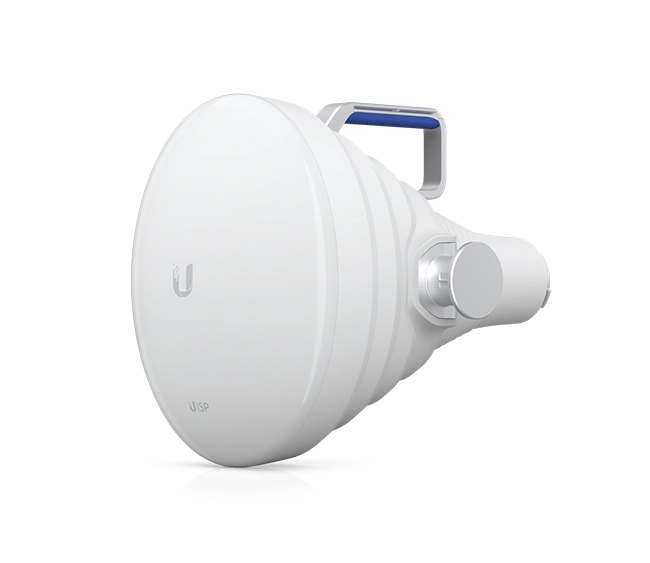

Ubiquiti UISP Horn 19.5 dBi Antenna
- 19.5 dBi high-isolation horn with 30° horizontal beamwidth
- Wide 5.15–6.875 GHz support—ideal for PtMP deployments
- Adjustable pole-mount with ±20° elevation and ±25° azimuth
- Rugged, weatherproof IPX6 durability, rated for 200 km/h winds
- Dual-linear polarization with 20 dB cross-pol isolation
- Front-to-back ratio up to 50 dB for excellent off-axis noise rejection
The Ubiquiti UISP Horn 19.5 dBi is a high-performance PtMP antenna designed for dense wireless environments. Operating across the 5.15–6.875 GHz spectrum, it offers a narrow 30° beamwidth, exceptional front-to-back ratio, and dual-linear polarization—ensuring superior noise rejection and reliable performance in crowded deployments. Ideal for WISPs seeking precise coverage and high throughput.
Detailed Specifications for Ubiquiti UISP Horn Antenna
The UISP Horn is a high-isolation, point-to-multipoint (PtMP) horn antenna designed for 5.15–6.875 GHz bands, compatible with airFiber 5XHD, LTU Rocket, and Rocket Prism AC radios.
🛠 Mechanical & Environmental
- Dimensions: 282 × 224 × 380 mm
- Weight: 3.06 kg (device) + 0.93 kg (mount)
- Material: UV-stabilized polycarbonate and aluminum alloy enclosure
- Wind Survivability: Up to 200 km/h; Wind Loading: 90 N at 200 km/h

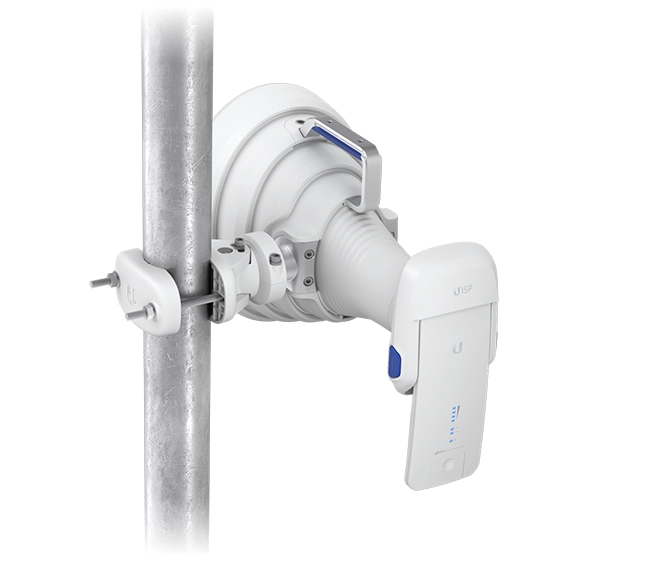

- Mounting: Pole alignment mount included; ±20° elevation, ±25° azimuth adjustment; compatible with 25–70 mm poles
- Ingress Protection: IPX6 for outdoor durability
📡 RF Characteristics
- Frequency Range: 5.15–6.875 GHz
- Gain: 19.5 dBi
- Beamwidth (6 dB): Horizontal 30°, Vertical 25°
- VSWR: ≤ 2:1
- Front-to-Back Ratio: Min 40 dB (Typical 45–50 dB)
- Polarization: Dual-linear; Cross-polar isolation 20 dB
- Electrical Downtilt: 0°
🏗 Build & Certifications
- Pole Mount Compatibility: Ø25–70 mm (1–3″) poles
- Standards: NDAA compliant
✅ Meta Description
The Ubiquiti UISP Horn antenna is a 19.5 dBi high‑isolation PtMP horn covering 5.15–6.875 GHz, featuring a rugged IPX6 build, adjustable mount, and excellent noise rejection—designed for professional WISP deployments.
| Brand | Ubiquiti |
|---|
