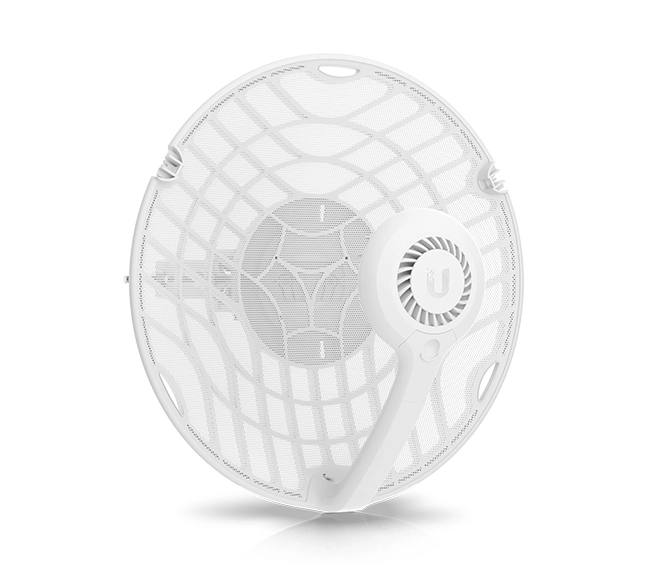

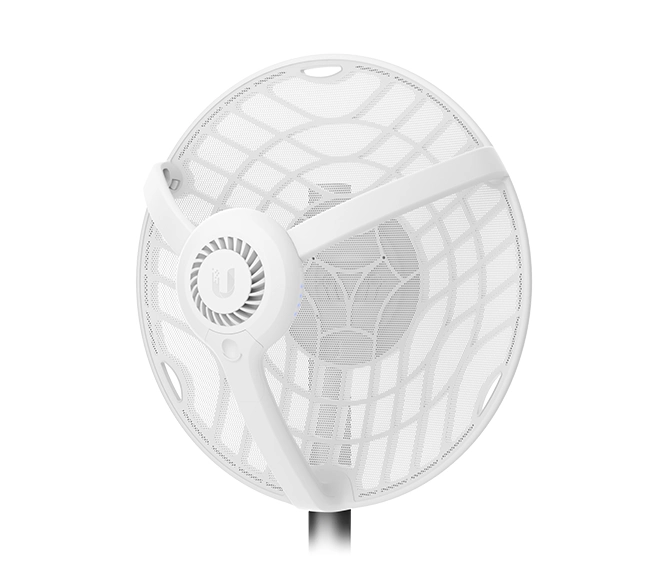

Ubiquiti airFiber 60 Long-Range – (AF60-LR) P-to-P Bridge
- Long-Range Performance: Up to 12 km over 60 GHz
- High-Speed Throughput: Up to 1.8 Gbps full-duplex
- 38 dBi Integrated Antenna: Precision directional beam
- Automatic Beamforming: Ensures optimal link alignment
- Low Latency: Sub-1 ms for real-time applications
- Weatherproof Build: IP67-rated for harsh outdoor conditions
- Low Power Consumption: Only 11W max via passive PoE
- 5 GHz Management Radio: Separate access channel
- Compact & Lightweight: Easy to install with included mount
- UISP Support: Centralized monitoring and remote configuration
The Ubiquiti airFiber 60 Long Range (AF60-LR) is a high-performance 60 GHz point-to-point radio designed for long-range, high-throughput wireless bridging. Optimized for outdoor deployments, it delivers up to 1.8 Gbps of low-latency bandwidth over distances up to 12 km using a high-gain antenna and automatic beamforming technology. The AF60-LR is ideal for service providers and enterprises looking to extend fiber-like performance wirelessly with minimal interference.
Key Specifications
General
- Model: AF60-LR
- Manufacturer: Ubiquiti Networks
- Device Type: Long-Range 60 GHz Point-to-Point Radio
- Application: Wireless backhaul, enterprise bridging
Hardware Specifications
Processor & Memory
- CPU: ARM Cortex-A7
- System Memory: 256 MB DDR3 RAM
- Storage: 256 MB NAND
Enclosure & Mounting
- Enclosure Material: UV-stabilized plastic and aluminum
- Mounting: Integrated mount with alignment bracket
- Dimensions: 413 × 413 × 360 mm
- Weight: 3.9 kg (with mount)
Radio & Antenna
- Primary Frequency Band: 57–71 GHz
- Channel Bandwidth: 2160 MHz
- Modulation: 16QAM, QPSK, BPSK
- Maximum Throughput: 1.8 Gbps (full-duplex)
- Range: Up to 12 km (7.45 miles) line of sight
- Beamforming: Yes (auto alignment tracking)
- Antenna Gain: 38 dBi integrated directional
Backup 5 GHz Radio
- Function: Management access only (not for failover)
- Frequency Band: 5.1 – 5.9 GHz
- Antenna Gain: 16 dBi
- Purpose: Device management when 60 GHz is inaccessible
Interfaces
- 1 × Gigabit Ethernet Port (10/100/1000 Mbps)
- Power Supply Method:
- PoE Input: 24V Passive PoE, 0.5A
- PoE Adapter: 24V, 0.5A Gigabit PoE injector (included)
- Power Consumption: Max 11W
Performance & Features
- Latency: ~1 ms
- Adaptive Modulation: Yes
- Operating Modes: Point-to-Point only
- Weatherproof Rating: IP67
- Operating Temperature: -40°C to 60°C (-40°F to 140°F)
- Wind Survivability: 200 km/h
Management & Software
- Management Platform: UISP (Ubiquiti Network Management System)
- Access: Web UI and UISP app
- Monitoring Features: Link statistics, signal quality, throughput
Compliance & Certifications
- Certifications: FCC, IC, CE
- Surge Protection: ±24kV ESD
Package Contents
- 1 × airFiber 60 LR Radio
- 1 × Mounting Bracket
- 1 × 24V, 0.5A Gigabit PoE Injector with Power Cord
- 1 × Quick Start Guide
Use Cases
- Long-range building-to-building connectivity
- Wireless ISP tower backhaul
- Rural or suburban high-speed wireless extensions
- Temporary or portable fiber-replacement links
Meta Description
Ubiquiti airFiber 60 LR is a long-range 60 GHz PtP bridge with 1.8 Gbps throughput, 12 km range, beamforming antenna, 38 dBi gain, IP67 enclosure, and UISP support—perfect for fiber-speed wireless links in demanding outdoor environments.
