Ubiquiti airFiber 60 XG – (AF60-XG) P-to-P Bridge
- Up to 6 Gbps Aggregate Throughput
- 4 km Range over 60 GHz Band
- Auto Beamforming with 38 dBi Antenna
- Dual 10G Ports (RJ45 + SFP+)
- 5 GHz Backup Radio (867 Mbps)
- Sub-1 ms Latency for Low-Lag Applications
- IP67 Weatherproof Design
- GPS Sync for Co-located Deployments
- Adaptive Modulation for Link Stability
- UISP Integration for Remote Monitoring

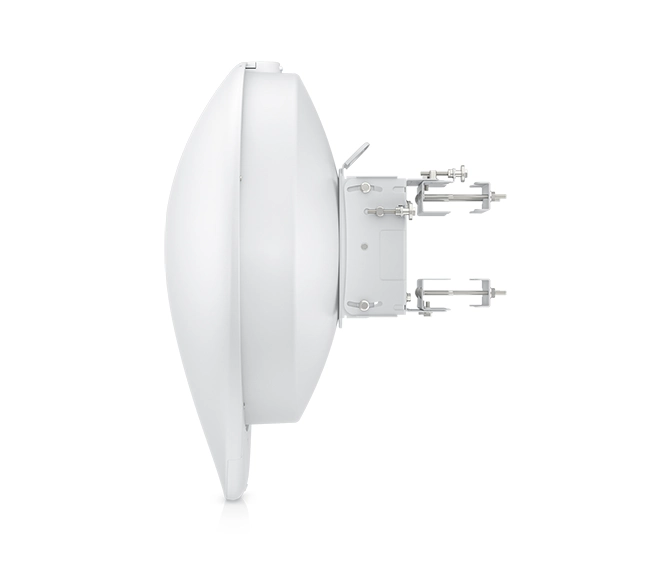

The Ubiquiti airFiber 60 XG (AF60-XG) is a premium 60 GHz point-to-point radio designed to deliver multi-gigabit wireless connectivity with ultra-low latency over medium-range links.
With a maximum throughput of 6 Gbps, integrated beamforming antennas, and support for 10G Ethernet and SFP+, it is ideal for high-capacity backhaul, ISP infrastructure, and enterprise-grade building-to-building links. Featuring GPS synchronization, 5 GHz backup, and seamless UISP integration, the AF60-XG brings fiber-like performance to the air.
Key Specifications
General
- Model: AF60-XG
- Manufacturer: Ubiquiti Networks
- Type: 60 GHz Point-to-Point Radio
- Use Case: High-capacity wireless backhaul and bridging
Hardware Specifications
Processor & Memory
- CPU: Quad-Core ARM Cortex-A7
- Memory: 512 MB DDR3
- Storage: 256 MB NAND
Enclosure & Mounting
- Enclosure Material: Aluminum and UV-stabilized plastic

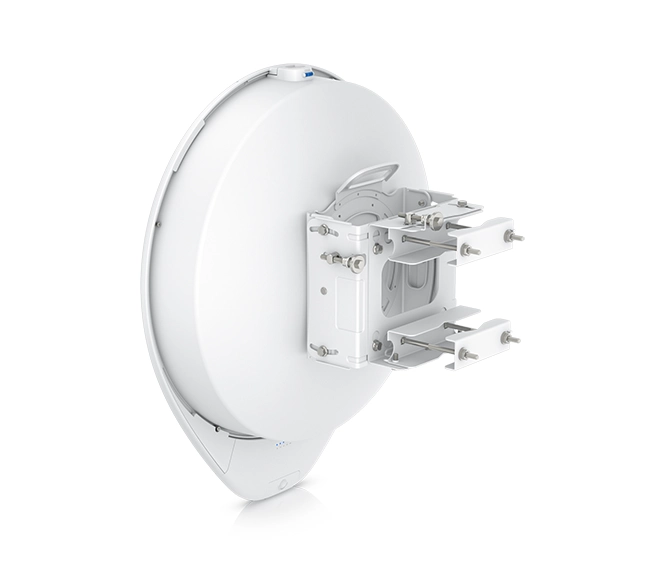

- Mounting: Integrated precision alignment bracket
- Dimensions: 426 × 426 × 303 mm
- Weight: 5.8 kg (with mount)
Radio & Antenna
- Frequency Band: 57 – 71 GHz
- Channel Bandwidth: 2160 MHz
- Max Throughput: 6 Gbps (aggregate)
- Range: Up to 4 km
- Modulation Types: 16QAM, QPSK, BPSK
- Beamforming: Auto beam steering and alignment
- Antenna Gain: 38 dBi (60 GHz)
Backup 5 GHz Radio
- Frequency Band: 5.1 – 5.9 GHz
- Function: Redundant backup/failover link
- Throughput: Up to 867 Mbps
- Gain: 26 dBi directional
Interfaces
- 1 × 10G Ethernet Port (RJ45)
- 1 × 10G SFP+ Port
- Power Method: 48V Passive PoE
- PoE Adapter: 60W Gigabit PoE injector (included)
- Power Consumption: Max 25W
Performance & Features
- Latency: Sub-1 ms
- GPS Synchronization: Yes (co-location friendly)
- Operating Temperature: -40°C to 60°C
- Weatherproofing: IP67 rating
- Adaptive Modulation: Dynamic link optimization
- Wind Resistance: Up to 200 km/h
Management & Software
- Platform: UISP
- Access Methods: Web UI, UISP app, SSH
- Monitoring: Link quality, spectrum, throughput, and error tracking
Compliance & Certifications
- Certifications: CE, FCC, IC
- Surge Protection: ±24kV Air/Contact
Package Contents
- 1 × airFiber 60 XG Radio
- 1 × Precision Mount Kit
- 1 × 60W Gigabit PoE Adapter with Power Cord
- 1 × Quick Start Guide
Use Cases
- Fiber-grade metro backhaul
- Enterprise building-to-building networks
- Redundant high-speed links for ISPs
- Temporary or remote gigabit uplinks
Meta Description
Ubiquiti airFiber 60 XG delivers 6 Gbps wireless backhaul over 60 GHz with beamforming, GPS sync, 10G ports, and 5 GHz failover—ideal for fiber-grade wireless bridging up to 4 km.
