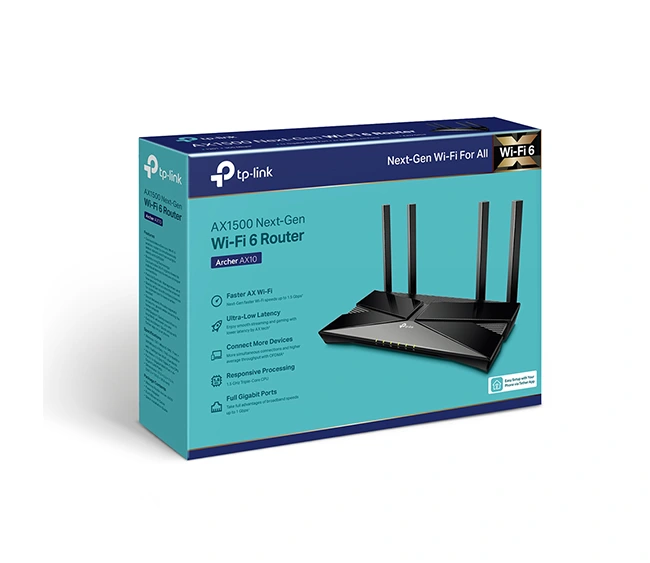

TP-Link AX1500 Wi-Fi 6 Router – ARCHER AX10

The TP-Link AX1500 Wi-Fi 6 Router – ARCHER AX10 is a dual-band Wi-Fi 6 router designed for homes and small offices seeking enhanced performance, lower latency, and greater capacity. Leveraging 802.11ax (Wi-Fi 6) technology, it delivers total speeds up to 1500 Mbps and supports multiple device connectivity via OFDMA and MU-MIMO. It’s equipped with a triple-core CPU, robust security protocols, and easy app-based management.

Hardware Specifications

• Model: Archer AX1500 (AX10)
• Wireless Standards: IEEE 802.11ax/ac/n/a (5 GHz), IEEE 802.11n/b/g (2.4 GHz)
• Frequency: Dual-band (2.4 GHz and 5 GHz)
• Wi-Fi Speeds:
  • 5 GHz: up to 1201 Mbps
  • 2.4 GHz: up to 300 Mbps
• Total Speed: Up to 1501 Mbps combined
• Processor: 1.5 GHz triple-core CPU
• Antenna: 4 external fixed antennas
• Ports:
  • 1 × Gigabit WAN port
  • 4 × Gigabit LAN ports
• Buttons: WPS/Wi-Fi, Power On/Off, Reset
• Power Supply: 12 V ⎓ 1 A
• Dimensions: Approx. 260 × 135 × 38 mm
• Mounting: Desktop

Wireless Features

• Modulation: OFDMA for efficient channel sharing
• Beamforming: Supported (on both 2.4 GHz and 5 GHz)
• MU-MIMO: Supported (2×2)
• TWT (Target Wake Time): Helps reduce client power consumption
• Wireless Security: WPA, WPA2, WPA3, WPA-PSK, WPA2-PSK
• Guest Network: Separate guest access for both frequency bands
• SSID Broadcast: Enable/disable per band
• Smart Connect: Auto-selects best band for devices

Software Features

• Parental Controls: Time-based and URL filtering
• QoS (Quality of Service): Device-based priority setting
• VPN Support:
  • OpenVPN Server
  • PPTP/L2TP VPN pass-through
• NAT Forwarding: Port forwarding, Port triggering, DMZ, UPnP
• IPv6: Supported
• Dynamic DNS: Supports TP-Link DDNS and third-party options
• Firewall: SPI firewall, Access Control, IP & MAC binding
• Firmware Management: Web-based GUI and TP-Link Tether app
• TP-Link ID: Enables cloud access and remote management

Environmental

• Operating Temperature: 0°C to 40°C
• Storage Temperature: -40°C to 70°C
• Humidity: 10%–90% non-condensing (operating), 5%–90% (storage)
• Certifications: CE, FCC, RoHS

Short Key Features

• AX1500 Dual-band Wi-Fi 6 for speeds up to 1201 Mbps (5 GHz) and 300 Mbps (2.4 GHz)
• Triple-core 1.5 GHz CPU ensures smooth and responsive performance
• OFDMA and MU-MIMO increase network capacity and efficiency
• Four external antennas with Beamforming for broader, stronger signal
• Full Gigabit ports for high-speed wired connections
• WPA3 encryption, SPI firewall, guest network, and VPN support
• Smart Connect, TWT, parental controls, and device-prioritized QoS
• Easy setup and remote control via TP-Link Tether mobile app

Meta Description

TP-Link AX1500 Wi-Fi 6 Router – ARCHER AX10 delivers next-gen dual-band speeds up to 1500 Mbps, ideal for 4K streaming, gaming, and smart homes. Features include a triple-core CPU, OFDMA, MU-MIMO, Beamforming, and WPA3 security — all managed easily via app or web UI.
