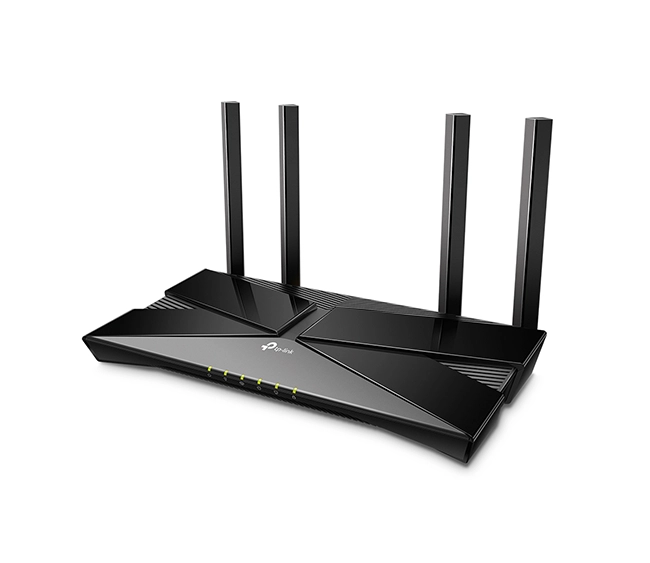

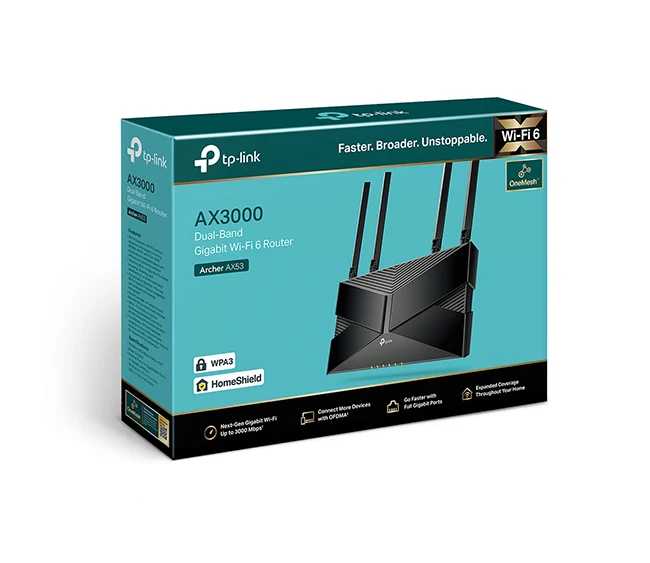

TP-Link AX3000 Dual Band Gigabit Wi-Fi 6 Router – ARCHER AX53

The TP-Link AX3000 Dual Band Gigabit Wi-Fi 6 Router – ARCHER AX53 is a powerful Wi-Fi 6 (802.11ax) dual-band gigabit router designed to handle high-performance networking needs. Ideal for streaming, gaming, and smart home environments, it delivers blazing speeds up to 3 Gbps and offers technologies like MU-MIMO, OFDMA, and Beamforming to support multiple devices with minimal latency.

This model combines next-gen wireless with wired gigabit ports and supports comprehensive network management tools, VPN capabilities, and robust security protocols.

Hardware Specifications

• Model Variants: Commonly branded as Archer AX55 or AX50 (AX3000 class)
• Wireless Standards: IEEE 802.11ax/ac/n/a (5 GHz), IEEE 802.11ax/n/b/g (2.4 GHz)
• Wi-Fi Speed:
  • 5 GHz: Up to 2402 Mbps (Wi-Fi 6 with HE160 support)
  • 2.4 GHz: Up to 574 Mbps
  • Combined: Approx. 3000 Mbps
• Antenna Setup:
  • 4 fixed high-gain external antennas
  • Beamforming supported for signal optimization
• Processor:
  • Dual-core CPU
  • RAM: Approx. 256 MB to 512 MB depending on model
• Storage: Typically 128 MB Flash
• Ports:
  • 1 × Gigabit WAN port
  • 4 × Gigabit LAN ports
  • 1 × USB 3.0 port (varies by model)
• Power Supply: 12V ⎓ 2A (adapter included)

Wireless & Software Features

• Wi-Fi 6 Enhancements:
  • OFDMA for simultaneous data streams
  • MU-MIMO for multi-device performance
  • Target Wake Time (TWT) for power efficiency
• Smart Features:
  • Smart Connect (auto band assignment)
  • Airtime Fairness
  • DFS support for less congested channels
• Security:
  • WPA3, WPA2-PSK, WPA-PSK encryption
  • SPI Firewall, Access Control, IP & MAC binding
• VPN Support:
  • OpenVPN, PPTP, and L2TP VPN server/client modes
• Mesh Capability:
  • OneMesh™ supported for seamless whole-home coverage
• Parental Controls & QoS:
  • Custom profiles, time scheduling, and content filters
  • Device-based QoS (manual or automatic)
• Guest Network:
  • Separate guest access on both 2.4 GHz and 5 GHz
• Cloud Services & App:
  • TP-Link Tether app for mobile management
  • Remote management via cloud with TP-Link ID
  • OTA firmware updates

Environmental & Physical

• Dimensions: Approx. 260 × 135 × 40 mm
• Operating Temperature: 0°C to 40°C
• Storage Temperature: -40°C to 70°C
• Operating Humidity: 10%–90% non-condensing
• Mounting: Desktop or wall-mount

Short Key Features

• Dual-band Wi-Fi 6 speeds up to 3000 Mbps
• MU-MIMO + OFDMA for efficient multi-device support
• 4 high-gain antennas with beamforming
• 1× USB 3.0 port for file/media sharing
• Full VPN server/client support
• OneMesh™ and Smart Connect enabled
• App-based cloud control and parental management
• Robust WPA3 wireless security

Meta Description

TP-Link AX3000 Dual Band Gigabit Wi-Fi 6 Router – ARCHER AX53 delivers up to 3 Gbps dual-band speeds with OFDMA, MU-MIMO, beamforming, gigabit ports, USB sharing, and OneMesh™ support—ideal for high-speed gaming, streaming, and smart homes.
