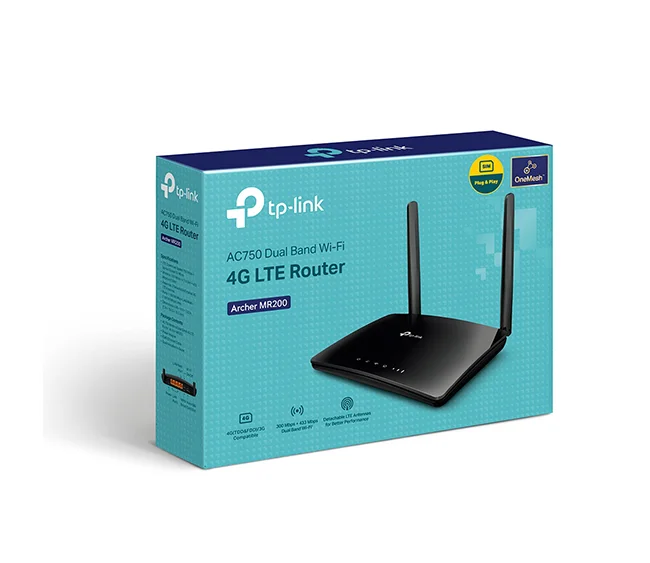

TP-Link AC750 Wireless Dual Band 4G LTE Router – ARCHER MR200

The TP-Link AC750 Wireless Dual Band 4G LTE Router – ARCHER MR200 is an all-in-one 4G LTE router designed for easy deployment in areas with no wired internet. With a built-in SIM card slot, it can share 4G LTE network access via dual-band Wi-Fi or through LAN ports, supporting up to 64 simultaneous users.

It also supports traditional WAN connections, making it suitable for both rural and urban deployments with failover requirements.

Hardware Specifications

• Product Model: Archer MR200 (AC750)
• Processor: Qualcomm Atheros chipset (unspecified model)
• Memory: 64 MB RAM (typical), 8 MB flash
• Antennas:
  • 2 detachable external 4G LTE antennas (SMA connectors)
  • Internal dual-band Wi-Fi antennas
• LED Indicators: Power, Internet, 2.4 GHz, 5 GHz, LAN, WPS, Signal Strength
• Buttons:
  • Power On/Off
  • Wi-Fi On/Off
  • WPS/Reset
• SIM Card Slot: Micro SIM
• Power Supply: 12V DC / 1A
• Dimensions: 174 × 124.5 × 33.5 mm

Wireless Specifications

• Wireless Standards:
  • 2.4 GHz: IEEE 802.11b/g/n
  • 5 GHz: IEEE 802.11a/n/ac
• Wi-Fi Speeds:
  • 2.4 GHz: up to 300 Mbps
  • 5 GHz: up to 433 Mbps
• Total Combined Speed: up to 750 Mbps
• Wireless Security: WPA/WPA2, WPA-PSK/WPA2-PSK encryption
• Features: SSID broadcast control, MAC filtering, wireless statistics

4G LTE & Network Specs

• LTE Category: LTE Cat 4
• Download Speed: Up to 150 Mbps
• Upload Speed: Up to 50 Mbps
• Supported LTE Bands (region-specific):
  • FDD-LTE: Band 1/3/7/8/20
  • TDD-LTE: Band 38/40/41
• UMTS Bands: Band 1/8 (2100/900 MHz)
• 3G Fallback: Yes (HSPA+/UMTS)
• WAN Port: 1 × 10/100 Mbps LAN/WAN auto-sensing
• LAN Ports: 3 × 10/100 Mbps LAN

Software & Management

• Operation Modes:
  • 3G/4G Router Mode
  • Wireless Router Mode (via WAN)
• DHCP: Server, Client, Address Reservation
• NAT Forwarding: Port forwarding, DMZ, UPnP
• QoS: Device and application-based traffic prioritization
• VPN Support: PPTP and OpenVPN (client/server)
• Parental Controls: Website blocking, scheduling
• Guest Network: 2.4 GHz and 5 GHz isolated guest networks
• Management: Web UI, Tether App, remote management support
• Dynamic DNS: TP-Link DDNS, DynDNS, No-IP
• IPv6: Supported
• Firmware Upgrades: Web-based, manual upload

Environmental

• Operating Temperature: 0°C – 40°C
• Storage Temperature: -40°C – 60°C
• Operating Humidity: 10% – 90% non-condensing
• Storage Humidity: 5% – 90% non-condensing
• Certifications: CE, RoHS, EAC

✅ Short Key Features

• Built-in 4G LTE modem with micro SIM slot
• Dual-band Wi-Fi with up to 750 Mbps combined speed
• Supports 64 wireless devices simultaneously
• 3 LAN ports + 1 WAN/LAN port for wired connectivity
• Guest Wi-Fi and parental control features
• VPN pass-through and server support
• OneMesh-compatible for mesh networking
• Works with both LTE and fixed-line internet

📝 Meta Description

TP-Link AC750 Wireless Dual Band 4G LTE Router – ARCHER MR200 is an AC750 dual-band 4G LTE router featuring a built-in SIM card slot, fast wireless speeds up to 750 Mbps, and support for 64 devices. Ideal for home, office, or rural areas with no fixed broadband, it also supports VPN, guest network, and OneMesh compatibility.
