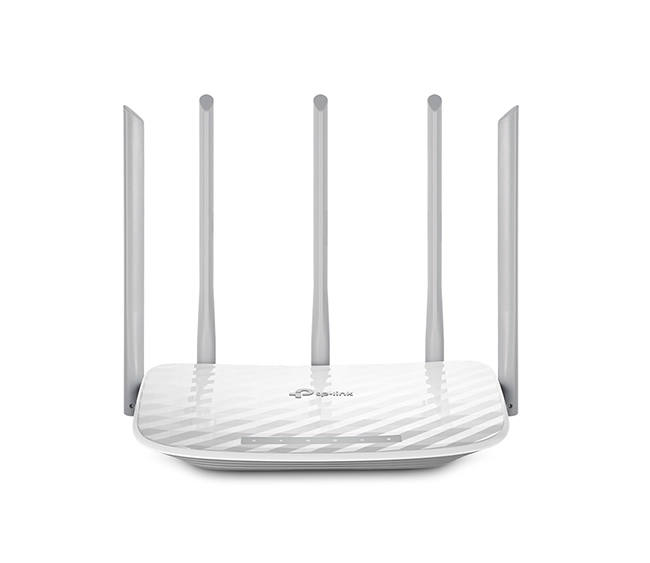

TP-Link AC1350 Wireless Dual Band Router – ARCHER C60

The TP-Link AC1350 Wireless Dual Band Router – ARCHER C60 is a dual-band AC1350 wireless router designed for medium-sized homes and small offices. It delivers smooth internet performance with 450 Mbps on the 2.4 GHz band and 867 Mbps on the 5 GHz band, providing a total bandwidth of up to 1350 Mbps.

With five dedicated antennas and MU-MIMO support, it ensures stable and broad wireless coverage while simultaneously serving multiple devices. It includes robust security settings, guest network features, parental controls, and an intuitive management interface via the TP-Link Tether app.

⚙️ Hardware Specifications

• Wireless Standard: IEEE 802.11ac/n/a (5 GHz), IEEE 802.11b/g/n (2.4 GHz)
• Wireless Speeds:
  • 2.4 GHz: up to 450 Mbps
  • 5 GHz: up to 867 Mbps
• Total Bandwidth: 1350 Mbps (AC1350)
• Antennas: 5 × fixed high-performance external antennas
  • 3 × 2.4 GHz
  • 2 × 5 GHz
• Ethernet Ports:
  • 1 × 10/100 Mbps WAN port
  • 4 × 10/100 Mbps LAN ports
• Buttons:
  • Power On/Off
  • Reset/WPS
  • Wireless On/Off
• Processor: Qualcomm Atheros chipset
• RAM: 64 MB
• Flash Memory: 8 MB
• Power Supply: 12V ⎓ 1A DC
• Dimensions: 230 × 144 × 37 mm

🌐 Software Features

• Operation Modes: Router Mode, Access Point Mode
• Network Functions:
  • NAT (Port Forwarding, DMZ, ALG)
  • DHCP Server/Client
  • IGMP Proxy/Snooping
  • IPTV (Bridge and VLAN)
  • Dynamic DNS (TP-Link, NO-IP, DynDNS)
• Security:
  • WPA/WPA2 – Personal and Enterprise (802.1X)
  • SPI Firewall
  • Access Control (Blacklist/Whitelist)
  • MAC Filtering
• Wireless Features:
  • Enable/Disable Wireless Radio
  • SSID Broadcast Control
  • Guest Network (2.4 GHz and 5 GHz)
• QoS: Bandwidth Control per device
• VPN Support: PPTP and OpenVPN Server
• Parental Controls: Time limits, content filtering
• Management:
  • Web UI (browser-based)
  • TP-Link Tether App (Android/iOS)
• Firmware Upgrade: Local or Online

🌡 Environmental Specs

• Operating Temperature: 0°C to 40°C
• Storage Temperature: -40°C to 70°C
• Operating Humidity: 10%–90% non-condensing
• Storage Humidity: 5%–90% non-condensing
• Certifications: CE, FCC, RoHS

✅ Short Key Features

• Dual-band AC1350 wireless speeds (2.4 GHz + 5 GHz)
• 5 external antennas for wide coverage
• MU-MIMO for efficient multi-device connections
• Guest network support on both bands
• VPN server support (PPTP/OpenVPN)
• Parental controls and bandwidth prioritization
• Fast Ethernet WAN and LAN ports
• Easy setup and management via TP-Link Tether app

📝 Meta Description

TP-Link AC1350 Wireless Dual Band Router – ARCHER C60 is an AC1350 dual-band Wi-Fi router featuring MU-MIMO, five external antennas, guest Wi-Fi, parental controls, and VPN support—ideal for seamless home and office wireless connectivity.
