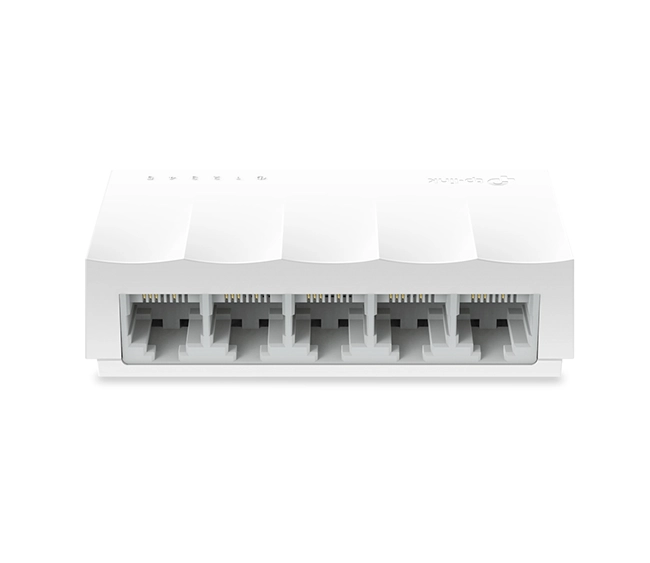

TP-Link 5-Port Switch (TL-LS1005)

The TP-Link 5-Port Switch (TL-LS1005) is a 5-port 10/100 Mbps desktop switch designed for expanding wired network capacity with ease. With plug-and-play installation, auto-negotiation, and auto-MDI/MDIX support on all ports, this compact unmanaged switch is ideal for home offices, small business networks, or desktop setups. The device features a fanless design for silent operation, energy-efficient technologies, and solid performance for everyday networking tasks.

🧠 Hardware Specifications

• Model Name: TL-LS1005
• Type: Unmanaged Fast Ethernet Switch

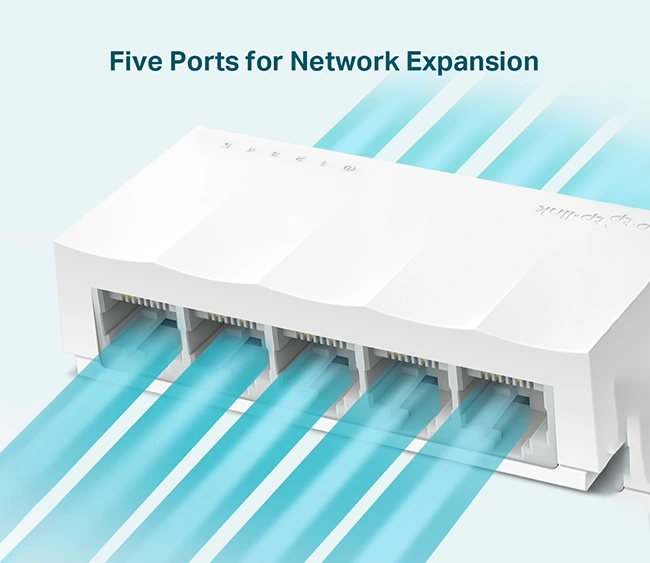

• Network Ports: 5 × 10/100 Mbps RJ45 ports
• Switching Method: Store-and-forward
• MAC Address Table: 2K entries
• Packet Forwarding Rate: 0.74 Mpps
• Backplane Bandwidth: 1 Gbps
• Flow Control: IEEE 802.3x full duplex

🌐 Standards & Protocols

• IEEE 802.3
• IEEE 802.3u
• IEEE 802.3x

⚡ Power Specifications

• Power Supply: External 5V / 0.6A DC adapter
• Max Power Consumption: 1.63 W
• Heat Dissipation: 5.56 BTU/h

📦 Physical Specifications

• Dimensions: 83.6 × 45.7 × 22.8 mm (3.3 × 1.8 × 0.9 in)
• Enclosure Type: Plastic
• Cooling: Fanless, passive cooling
• Mounting: Desktop

🌱 Environmental Characteristics

• Operating Temperature: 0°C to 40°C
• Storage Temperature: -40°C to 70°C
• Operating Humidity: 10% to 90% RH non-condensing
• Storage Humidity: 5% to 90% RH non-condensing
