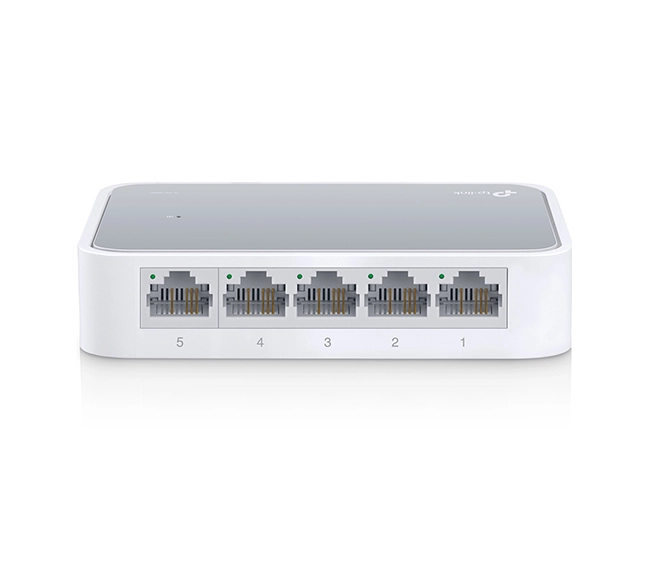

The TP-Link 5-Port Switch (TL-SF1005D) is a compact and energy-efficient unmanaged 5-port Fast Ethernet switch. It is designed to expand your wired network quickly and easily without the need for any configuration. Ideal for small office or home networks, the TL-SF1005D features plug-and-play functionality, a fanless design for silent operation, and auto-sensing ports that adjust speed and duplex automatically.

🧠 Hardware Specifications

• Model: TL-SF1005D
• Ports: 5 × 10/100 Mbps RJ45 Ethernet ports
• Auto-Negotiation: Supported
• Auto MDI/MDIX: Supported on all ports (no need for crossover cables)
• Switching Capacity: 1 Gbps
• Forwarding Rate: Up to 148,800 pps per port at 100 Mbps
• MAC Address Table: 2K entries
• Switching Method: Store-and-forward
• Flow Control: IEEE 802.3x full-duplex and backpressure for half-duplex

🌐 Standards and Protocols

• IEEE 802.3
• IEEE 802.3u
• IEEE 802.3x

⚡ Power & Energy Efficiency

• Power Supply: External 5V DC / 0.6A
• Maximum Power Consumption: 1.9 W
• Energy-Saving Features: Green Ethernet technology automatically reduces power based on cable length and link status

📦 Physical & Environmental

• Dimensions: 104 mm × 70 mm × 22 mm
• Enclosure Material: Plastic
• Cooling: Fanless for silent operation
• Installation: Desktop
• Operating Temperature: 0°C to 40°C
• Storage Temperature: -40°C to 70°C
• Operating Humidity: 10% to 90% RH (non-condensing)
• Storage Humidity: 5% to 90% RH (non-condensing)

📝 Meta Description

TP-Link 5-Port Switch (TL-SF1005D) is a 5-port Fast Ethernet unmanaged switch featuring auto-negotiation, Auto-MDI/MDIX, energy-efficient Green Ethernet, and silent fanless operation. Ideal for expanding wired networks in home or small office environments.
