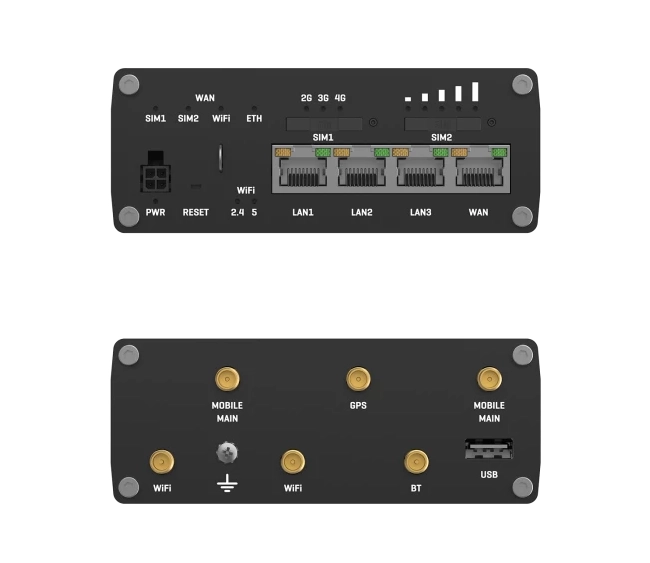

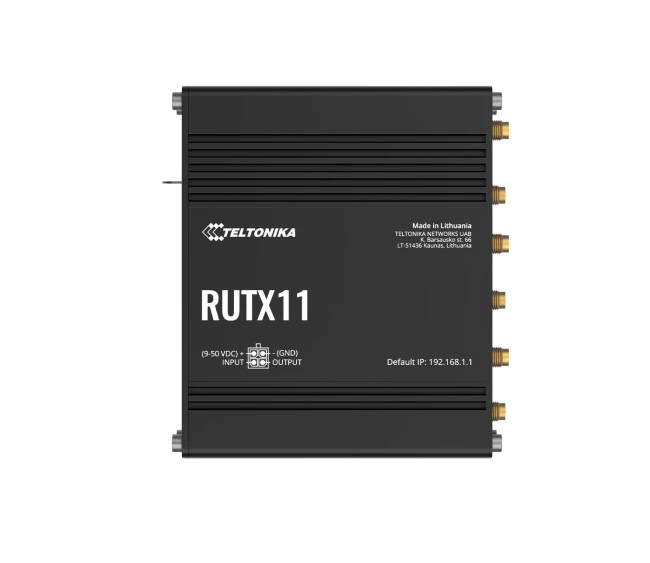

Teltonika RUTX11 LTE-A Cat 6 Gigabit Cellular Router
- 4G LTE Cat 6 with carrier aggregation (up to 300 Mbps download, 50 Mbps upload)
- Dual SIM slots with auto-failover and backup WAN functionality
- Dual-band Wi-Fi 5 (802.11ac) with MU-MIMO and high-speed wireless connectivity
- 4× Gigabit Ethernet ports with WAN failover, VLAN support, and advanced routing
- Built-in GNSS module (GPS, GLONASS, Galileo, BeiDou) for accurate tracking
- Bluetooth LE for IoT sensor integration and telemetry
- 1× USB 2.0 and digital I/O for remote monitoring/control
- Quad-core CPU with 256 MB RAM for industrial-grade performance
- Rugged aluminum housing with DIN rail mount support, IP30 rated
- Advanced RutOS firmware with OpenVPN, WireGuard, firewall, RMS cloud access
- Wide power input (9–50 V DC), passive PoE support, and extended temp range (−40 °C to +75 °C)
The Teltonika RUTX11 LTE-A Cat 6 Gigabit Cellular Router is an industrial LTE‑Advanced Cat 6 router delivering robust connectivity for IoT/M2M deployments. With carrier aggregation providing up to 300 Mbps downlink speeds, it combines wired, wireless, GNSS, and multiple I/O options in a rugged aluminum enclosure
Cellular & SIM
- 4G LTE‑Cat 6: Up to 300 Mbps DL / 50 Mbps UL
- 3G fallback: DC‑HSPA+ (up to 42 Mbps DL)
- Dual external SIM slots: Auto‑failover based on signal, data/SMS limit, roaming, idle timeout
- Carrier Aggregation: Supports intra-band and inter-band 2CA
- Modem compliance: 3GPP Release 12 compliant
- Antenna Connectors: 2× SMA (LTE Main & Aux)
Networking & Wi‑Fi
- Ethernet: 4× Gigabit ports (1 WAN configurable as LAN + 3 LAN), auto MDIX, VLAN support (up to 128 tags)
- Wi‑Fi: Dual-band Wi‑Fi 5 (802.11ac Wave‑2 + b/g/n); AP/Station modes; MU‑MIMO; up to 867 Mbps; supports captive portal and internal RADIUS
- Bluetooth LE: For sensor connectivity
GNSS
- Supported Systems: GPS, GLONASS, Galileo, BeiDou, QZSS
- Functions: Geofencing, NMEA, tracking, time sync
I/O & Ports
- Digital I/O: 1 digital input + 1 open-collector output (30 V / 300 mA) via 4‑pin connector
- Serial: Not included (unlike RUT955)
- USB Host: 1× USB‑A for storage/devices
- SIM Reset & Factory Reset buttons
Hardware & Power
- CPU: Quad-core ARM Cortex‑A7 @ 717 MHz
- Memory: 256 MB DDR3 RAM + 256 MB SPI Flash storage
- Power Input: 9–50 V DC via 4‑pin terminal; supports passive PoE
- Power Consumption: Approx. 11–18 W under load
Physical & Environment
- Housing: Rugged aluminum + plastic, IP30 rated; includes grounding screw; DIN‑rail/wall-mount options
- Dimensions: 115 × 44.2 × 95.1 mm (without antennas)
- Weight: ~456 g
- Operating Temp: –40 °C to +75 °C; Humidity: 10–90% non-condensing
Software, Security & Management
- Operating System: RutOS based on OpenWRT
- Routing: Static & dynamic (BGP, OSPF, RIP v1/v2, EIGRP, VRRP)
- VPN Support: OpenVPN, IPsec, PPTP, L2TP, GRE, SSTP, WireGuard, DMVPN, Stunnel, ZeroTier
- Firewall & Security: Stateful, DoS protection, MAC/IP filtering, VLAN separation
- Cloud Management: Teltonika RMS, SNMP v1/2/3, TR-069, SSH, CLI, SMS, JSON-RPC
- IoT Protocols: MQTT, Modbus, Samba, WOL, DLNA, NTP
- Wi‑Fi Security: WPA2-Enterprise, Captive portal, RADIUS support
Compliance & Certification
- Standards: CE/RED, FCC, IC, RoHS, WEEE
- EMC: EN 55032/35, ETSI EN 301 489, ISO 7637
- Rail Compliance: EN 45545-2 certified for use on passenger trains
In the Box
- RUTX11 unit with power supply (region-specific), 2 LTE antennas, 2 Wi‑Fi antennas, 1 GNSS antenna, 1 BT antenna, Ethernet cable, SIM tool & adapters, quick start guide
Meta Description
Teltonika RUTX11 LTE-A Cat 6 Gigabit Cellular Router is a rugged LTE‑Cat 6 industrial router with dual SIM failover, carrier aggregation (300 Mbps), 4× Gbps Ethernet ports, dual-band Wi-Fi 5, Bluetooth LE, GNSS, USB and digital I/O, running RutOS with VPN support and remote management—built for demanding IoT and transport applications.
| Brand | Teltonika |
|---|
