RG-RAP72, Wi-Fi 7 BE3600 Ceiling-Mount Access Point

The RG-RAP72, Wi-Fi 7 BE3600 Ceiling-Mount Access Point is a next-generation Wi-Fi 7 BE3600 ceiling-mount access point designed to deliver ultra-fast wireless speeds, low latency, and high device capacity for enterprise and SMB environments. Built on the latest IEEE 802.11be standard, the Ruijie RG-RAP72 provides enhanced efficiency and stability for modern offices, campuses, hospitality, and high-density indoor deployments where performance and scalability are critical.

Product Overview

The RG-RAP72 supports dual-band Wi-Fi 7 technology, leveraging advanced features such as Multi-Link Operation (MLO), enhanced OFDMA, and MU-MIMO to significantly improve throughput and reduce congestion. Its ceiling-mount form factor ensures wide and uniform coverage, while centralized cloud or controller-based management simplifies large-scale wireless deployments.

Hardware Specifications

• Wi-Fi Standard: Wi-Fi 7 (IEEE 802.11be)
• Wireless Performance: BE3600
• Maximum Data Rate:
  • Up to 2882 Mbps on 5 GHz
  • Up to 688 Mbps on 2.4 GHz
• Frequency Bands: Dual-band (2.4 GHz and 5 GHz)
• Antennas: Built-in high-gain omnidirectional antennas
• Ethernet Interface:
  • 1 × 2.5 Gigabit Ethernet (PoE capable)
• PoE Support: IEEE 802.3af / 802.3at

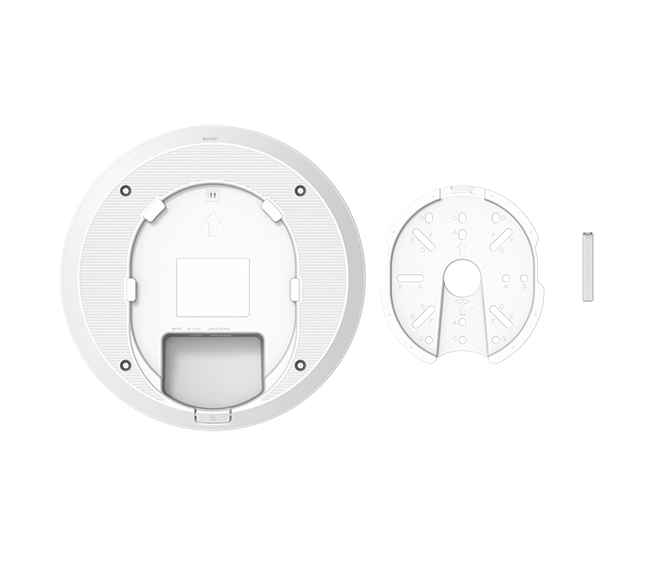

• Mounting Type: Ceiling-mount (indoor)
• Power Consumption: Optimized for PoE operation

Wireless & Network Features

• Multi-Link Operation (MLO): Aggregates multiple bands for higher throughput and lower latency
• OFDMA & MU-MIMO: Efficient multi-user transmission and reduced congestion
• Seamless Roaming: Fast roaming for mobile clients
• Band Steering: Automatic client optimization across bands
• High-Density Optimization: Designed for environments with many concurrent users

Security & Management

• Security Protocols: WPA3, WPA2, guest network support
• Network Segmentation: VLAN support
• Management Options: Ruijie cloud management or centralized controller
• Monitoring: Real-time performance, client statistics, and alerts
• Deployment: Plug-and-play with zero-touch provisioning

Deployment Scenarios

• Enterprise offices and corporate campuses
• Universities and training institutions
• Hotels, malls, and conference centers
• High-density indoor Wi-Fi environments

Key Features (E-commerce Optimized)

• Wi-Fi 7 BE3600 ceiling-mount access point for next-gen wireless networks
• Dual-band 2.4 GHz and 5 GHz with ultra-high throughput
• 2.5 Gigabit Ethernet uplink for high-speed backhaul
• Supports MLO, OFDMA, and MU-MIMO for superior performance
• PoE-powered for clean and simple ceiling installations
• Enterprise-grade security with WPA3 and VLAN support
• Centralized cloud or controller management for easy scaling

Meta Description

Ruijie RG-RAP72 is a Wi-Fi 7 BE3600 ceiling-mount access point featuring dual-band wireless, 2.5G Ethernet, PoE support, and centralized management, ideal for high-density enterprise and SMB indoor networks.
