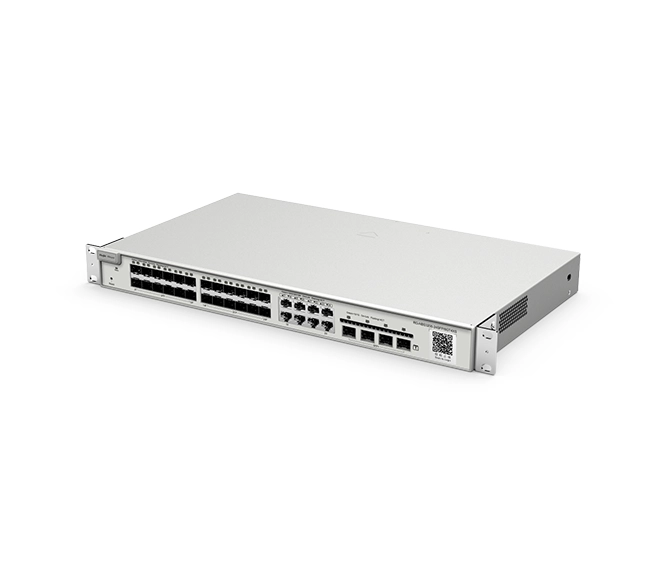

Ruijie RG-NBS3200-24SFP/8GT4XS, 24-Port Gigabit SFP Layer 2+ Managed Switch
- 24 × Gigabit SFP Ports
- 8 × Combo RJ45 (Gigabit) Ports
- 4 × 10G SFP+ Uplink Ports
- Layer 2+ Managed with VLAN, QoS, ACLs
- 128 Gbps Switching Capacity
- Cloud Management via Ruijie Cloud & App
- Advanced Security: DHCP Snooping, IP Source Guard
- Low Power Consumption (≤ 42W)
- Rack-Mountable Steel Case (19-inch)
- Fan Cooling with Adaptive Speed
Ruijie RG-NBS3200-24SFP/8GT4XS is a high-performance Layer 2+ managed switch designed for enterprise, surveillance, and campus networks. It offers a flexible port configuration with 24 Gigabit SFP ports and 8 combo RJ45 ports, along with 4 10G SFP+ uplink ports.
🔧 Hardware Specifications
- Ports:
- 24 × Gigabit SFP ports (100/1000 Mbps)
- 8 × Combo 10/100/1000Base-T RJ45 ports
- 4 × 10G SFP+ uplink ports
- Switching Capacity: 128 Gbps
- Forwarding Rate: 95.24 Mpps
- MAC Address Table: 16,000 entries
- Packet Buffer: 12 Mbit
- VLAN Support: Up to 4094 VLANs
- Jumbo Frame Support: Up to 9216 bytes
- Power Supply: Fixed, 100–240V AC, 2A
- Power Consumption: ≤ 42W
- Cooling: Single fan with adaptive speed; airflow from left to rear
- Dimensions: 440 mm × 267.5 mm × 43.6 mm
- Weight: 3.35 kg (with packaging)
- Operating Temperature: 0°C to 50°C
- Storage Temperature: -40°C to 70°C
- Operating Humidity: 10% to 90% RH
- Storage Humidity: 5% to 95% RH
- Surge Protection: 6 kV on ports
- Certifications: CE, RoHS
🧠 Layer 2 & Management Features
- Spanning Tree Protocols: STP (IEEE 802.1d), RSTP (IEEE 802.1w)
- Link Aggregation: Supports up to 16 aggregation groups with 8 members per group
- VLAN Types: Port-based, MAC-based, IP-based, Voice VLAN
- Access Control Lists (ACLs): Supports IP standard ACL, MAC extended ACL, IP extended ACL, and port ACL for Layer 2 ports
- Quality of Service (QoS): Port-based speed limit (ingress/egress)
- Security Features: Port protection, hardware CPU protection, DHCP snooping, IP source guard, anti-ARP spoofing
- Management: Web-based GUI, Ruijie Cloud, Ruijie Cloud app
- Other Features: LLDP/LLDP-MED, IGMP Snooping v1/v2/v3, Jumbo Frame support, loop prevention and notification
📦 Package Contents
- RG-NBS3200-24SFP/8GT4XS Switch
- AC Power Cord
- Rack Mounting Brackets
- Foot Pads
- Quick Start Guide
- Warranty Card
- Screws
💼 Use Cases
This switch is ideal for:
- Enterprise networks requiring high-speed uplinks and flexible port configurations
- IP surveillance systems with high bandwidth demands
- Campus and educational institution networks
- Hospitality and retail environments
- Industrial and factory settings
