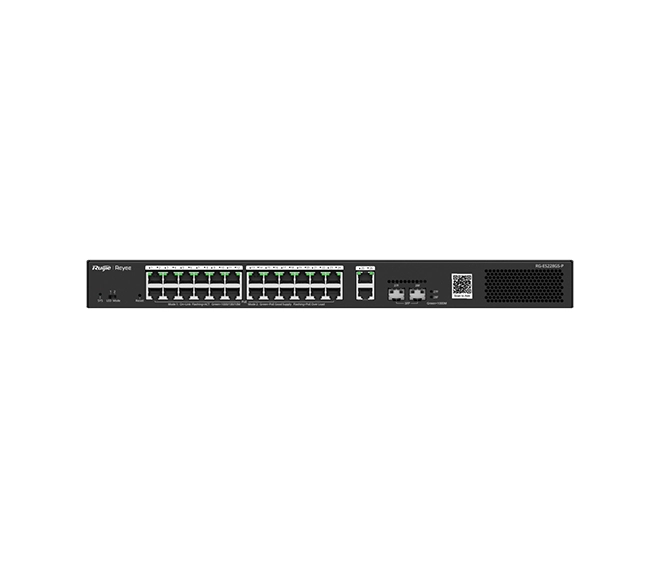

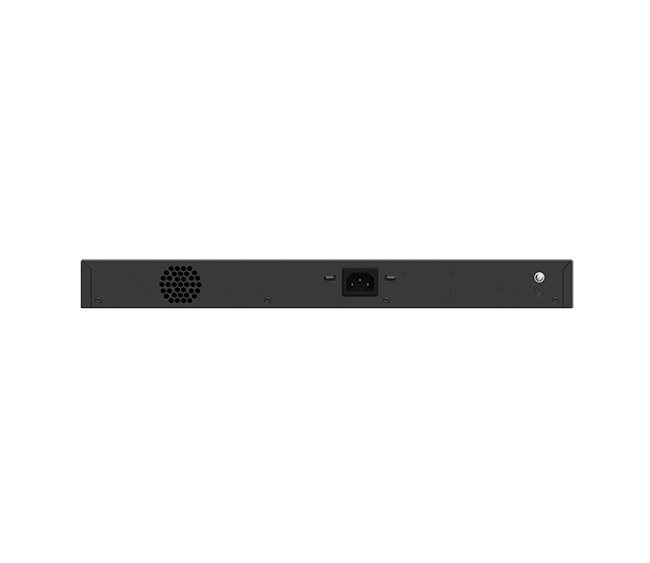

RG-ES228GS-P 28-Port Gigabit Smart Cloud Managed PoE Switch

The RG-ES228GS-P 28-Port Gigabit Smart Cloud Managed PoE Switch is a professional-grade access switch designed for businesses that need reliable Gigabit connectivity, centralized cloud management, and high PoE power capacity. Built to support modern IP surveillance, wireless networking, and VoIP deployments, the Ruijie Reyee RG-ES228GS-P combines a strong 370W PoE budget with flexible uplink options and an industrial steel chassis, making it a dependable choice for commercial network installations.

Product Overview

This switch is optimized for scalable deployments where remote management and consistent power delivery are critical. With Ruijie Reyee cloud management, administrators can monitor ports, control PoE power, and troubleshoot networks remotely, reducing operational overhead while maintaining enterprise-level performance.

Hardware Specifications

• Switch Type: Smart cloud managed Gigabit PoE switch
• Total Ports: 28
• PoE Access Ports: 24 × 10/100/1000 Mbps RJ45
• Uplink Ports: 2 × Gigabit RJ45 + 2 × Gigabit SFP
• PoE Standards: IEEE 802.3af / 802.3at
• Maximum PoE Output per Port: 30W
• Total PoE Power Budget: 370W
• PoE Management: Automatic detection and intelligent power allocation

Switching & Performance

• Switching Capacity: Non-blocking Gigabit switching fabric
• Forwarding Rate: Line-rate forwarding on all ports
• MAC Address Table: High-capacity device support
• Jumbo Frames: Supported
• Flow Control: IEEE 802.3x

Layer 2 & Network Features

• VLAN: IEEE 802.1Q and port-based VLAN
• QoS: Priority-based traffic scheduling
• Link Aggregation: Static link aggregation
• Loop Protection: Automatic loop prevention
• Storm Control: Broadcast and multicast suppression
• Port Isolation: Enhanced security for camera and guest networks

Cloud Management

• Management Platform: Ruijie Reyee Cloud
• Remote Monitoring: Real-time port and PoE status
• Configuration: Centralized remote configuration
• Alerts: Network and PoE fault notifications

Physical Specifications

• Form Factor: Desktop
• Chassis: Steel enclosure
• Cooling: Active cooling with intelligent fan control
• Power Supply: Internal AC power supply

Ideal Use Cases

• IP camera and CCTV systems
• Office and enterprise access networks
• Wireless access point deployments
• Hotels, schools, and retail outlets

Key Features

• 28-port Gigabit smart PoE switch ideal for business networks
• 24 PoE/PoE+ ports to power IP cameras, access points, and VoIP phones
• High 370W PoE power budget for dense device deployments
• Cloud managed for easy remote setup, monitoring, and control
• Flexible uplinks with both Gigabit RJ45 and SFP fiber ports
• Durable steel desktop design for long-term commercial use

Meta Description

Ruijie Reyee RG-ES228GS-P 28-port Gigabit smart cloud managed PoE switch with 24 PoE/PoE+ ports, 370W power budget, and SFP uplinks, ideal for surveillance, Wi-Fi, and enterprise access networks.
