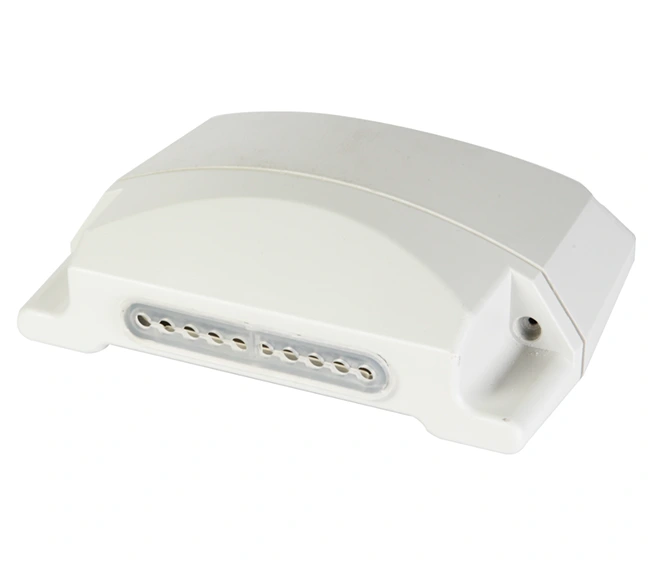

NETSTAR® Outdoor Reverse PoE Switch (NS-RP071P-OD)

The NETSTAR® NS-RP071P-OD is an unmanaged outdoor reverse Power over Ethernet (RPoE) switch designed for Wireless Internet Service Providers (WISPs) to efficiently distribute internet connectivity from a single Wireless Customer Premises Equipment (CPE) to multiple clients. Below are its detailed specifications:

🔧 Technical Specifications

• Ethernet Ports:
  • Uplink Port: 1 × 10/100Mbps Data + PoE Out (24V)
  • Downlink Ports: 7 × 10/100Mbps Data + PoE In
• Standards Compliance:
  • IEEE 802.3 (10BASE-T)
  • IEEE 802.3u (100BASE-TX)
  • IEEE 802.3x (Flow Control)
  • IEEE 802.3az (Energy Efficient Ethernet)
• Protocols: CSMA/CD
• Transmission Method: Store and Forward
• MAC Address Table: 1,000 entries
• Packet Buffer: 448K bits
• Maximum Forwarding Packet Length: 1,536 bytes
• Filtering/Forwarding Rates:
  • 100Mbps Port: 148,800 packets per second (pps)
  • 10Mbps Port: 14,880 pps
• LED Indicators:
  • Green: Device On Stable
  • Blue (Ethernet 8): Link Active (Flashing during Data Transmission)
  • Red (Ethernet 1 to 7): Link Active (Flashing during Data Transmission)
• Power Input: 24VDC Power over Ethernet
• Power Output (Uplink Port): 24VDC
• Power Consumption:
  • Switch: 2 Watts
  • PoE Injector: 5 Watts
• Operating Temperature: 0°C to 60°C
• Storage Temperature: -20°C to 80°C
• Operating Humidity: 20% to 95% (non-condensing)
• Dimensions: 185 × 55 × 149 mm
• Weight: 0.38 kg

⚙️ Key Features

• Intelligent Power Management: The switch can be powered using reverse power from any of the seven downlink ports, eliminating the need for a separate power source.
• Auto-Negotiation: Each port automatically detects the connected device’s speed (10/100Mbps) and mode (half/full duplex), ensuring optimal performance.
• Non-Blocking Wire Speed: Ensures seamless forwarding and receiving of traffic without bottlenecks.
• Port-Based Isolation: Downlink ports are isolated from each other, preventing direct communication between clients and enhancing security.
• Surge Protection: Each port is equipped with surge protection to safeguard against voltage spikes.
• Over Voltage Protection: Protects the switch from damage caused by high voltage PoE injectors.
• Over Current Protection: Prevents damage due to excessive current flow.
• Cascading Capability: Supports cascading with other switches, allowing for expanded network coverage.(netstar.in)

🛠️ Application Scenario

Ideal for WISPs aiming to distribute internet connectivity from a single CPE to multiple clients without the need for individual power sources. The NS-RP071P-OD simplifies installation by utilizing existing PoE infrastructure and reduces operational costs by eliminating the need for separate power supplies or UPS systems at each client location.
