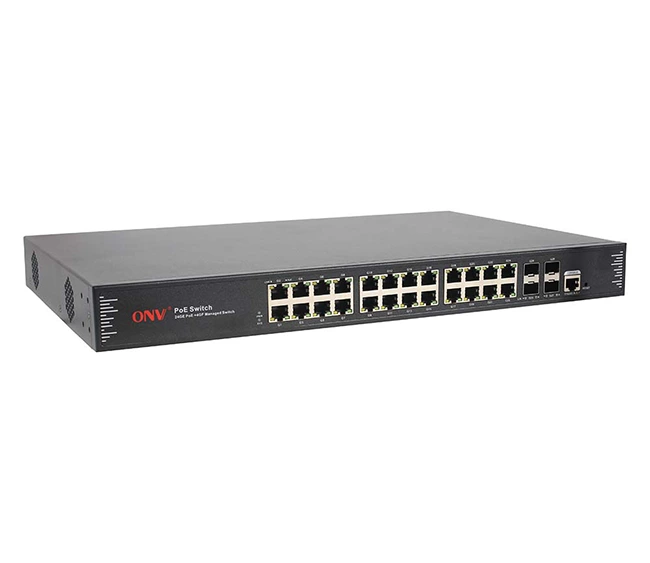

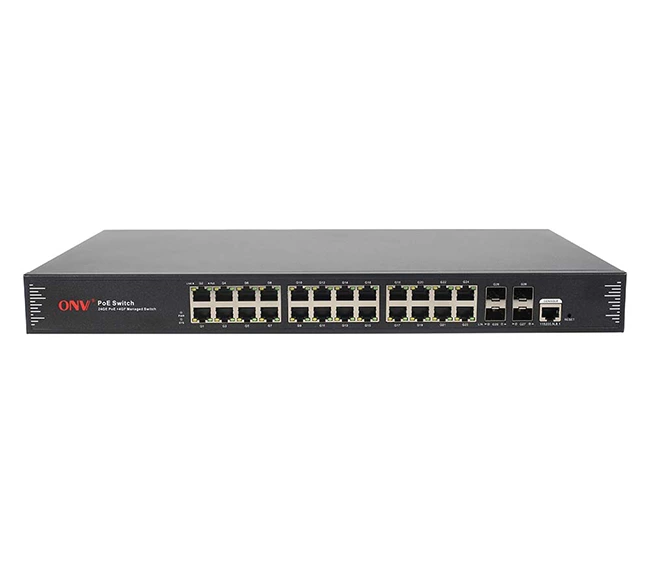

ONV POE33028PFM – 28-Port Full Gigabit Managed 24 PoE Switch

28-Port Full Gigabit Managed PoE Switch

24 PoE + 4 SFP | 802.3af/at | 400W PoE Budget | Built-in Power | Rackmount Design

🚀 Unleash Scalable Power for Your Network

The ONV POE33028PFM is a high-capacity managed PoE switch built to deliver reliable performance for high-density IP surveillance, wireless, and VoIP applications. With 24 Gigabit PoE ports and 4 SFP uplinks, it combines intelligent Layer 2 management with a powerful 400W PoE budget, making it ideal for modern enterprise networks.

🔧 Key Features

• 28-Port Configuration:

  • 24 × 10/100/1000 Mbps PoE ports

  • 4 × 1000 Mbps SFP fiber uplink ports

• Power Over Ethernet (PoE):

  • Supports IEEE 802.3af/at

  • Total power budget: 400W

  • Up to 30W per PoE port – ideal for IP cameras, APs, and VoIP phones

• Fully Managed for Enterprise Control:

  • Web GUI & CLI

  • VLAN, QoS, IGMP Snooping, SNMP, Port Mirroring, ACLs

• Gigabit Backbone Performance:

  • Switching capacity: 56 Gbps

  • Forwarding rate: 41.66 Mpps

• Built-in Power Supply & Rackmount Ready:

  • Compact 1U 19-inch rackmount form factor

  • Industrial-grade metal housing for stability and durability

  • Optional fanless or smart fan cooling (model-dependent)

🧠 Smart Networking Made Simple

• 8K MAC address table

• Jumbo frame support (up to 9KB)

• Energy-efficient operation

• Easy deployment for surveillance and enterprise infrastructure

✅ Perfect For:

• IP Camera & CCTV Networks

• Wireless Access Point Infrastructure

• VoIP Phone Systems

• Smart Buildings & Campuses

• Corporate, Retail & Hospitality Networks

📦 What’s in the Box:

• 1 × ONV POE33028PFM Switch

• 1 × Power Cable

• 1 × Rackmount Kit

• 1 × User Manual

💼 Built for Professionals. Designed for Performance.

Upgrade your network with ONV’s advanced Layer 2 PoE switching solution. Whether scaling surveillance or deploying unified communications, the POE33028PFM brings power, speed, and smart control to your fingertips.

Datasheet
