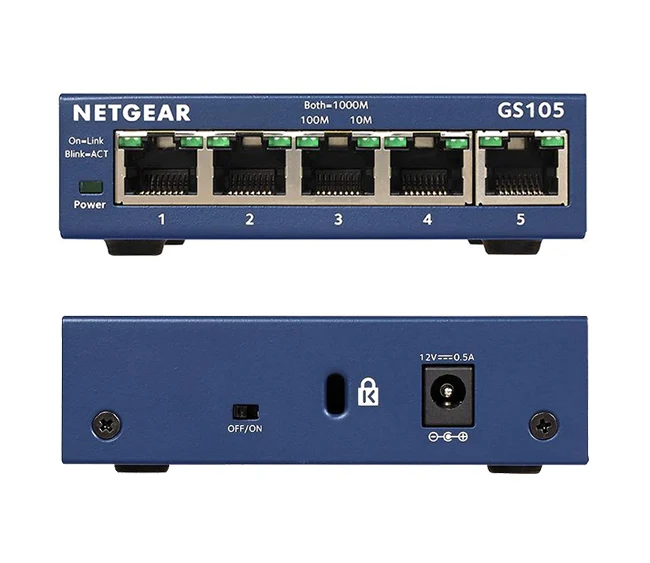

Netgear GS105UK 5-Port Gigabit Switch

The Netgear GS105UK 5-Port Gigabit Switch is a compact, plug-and-play unmanaged switch designed for small offices, home offices, and workgroup environments. It provides reliable high-speed networking with auto-sensing 10/100/1000 Mbps RJ-45 ports, ensuring smooth connectivity for bandwidth-intensive tasks such as video streaming, file transfers, and VoIP.

With its durable metal housing, fanless design, and energy-efficient technology, the GS105UK delivers silent, long-lasting, and eco-friendly performance.

Ports & Connectivity

• Ports: 5 × 10/100/1000 Mbps RJ-45 Gigabit Ethernet ports
• Standards: IEEE 802.3i, 802.3u, 802.3ab (Ethernet, Fast Ethernet, Gigabit Ethernet)
• Auto MDI/MDIX: Eliminates the need for crossover cables
• Auto Negotiation: Adjusts speed and duplex automatically per connected device

Performance

• Switching Capacity: 10 Gbps (non-blocking architecture)
• Packet Forwarding Rate: 7.4 Mpps
• MAC Address Table Size: 2,000 entries
• Buffer Memory: 128 KB
• Latency: < 4 μs (64-byte packets)

Features

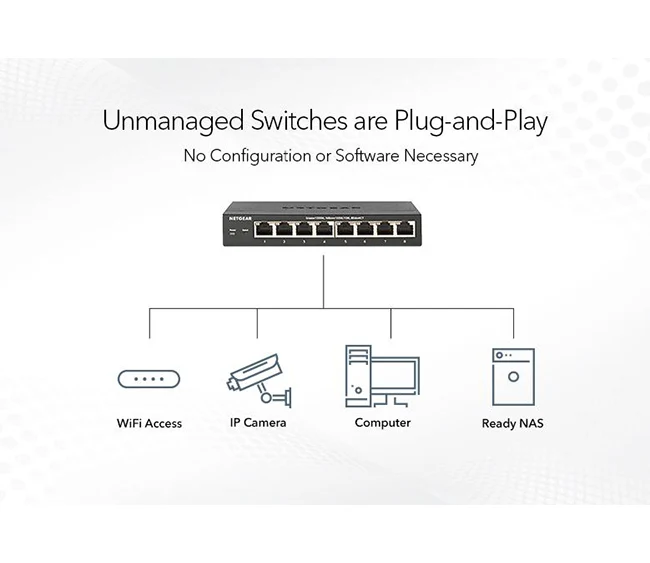

• Plug-and-Play: No configuration required
• QoS Support: IEEE 802.1p prioritization for smoother traffic handling
• Flow Control: IEEE 802.3x (full-duplex) for reliable data transfer
• Fanless Design: Silent operation, ideal for offices and home setups
• Durable Metal Housing: Compact and sturdy build for long-term use

Energy Efficiency

• IEEE 802.3az Energy Efficient Ethernet (EEE) support
• Automatically reduces power consumption when ports are idle or cable length is short

Physical Specifications

• Dimensions (W × D × H): 94 × 100 × 27 mm
• Weight: ~0.26 kg
• Mounting: Desktop or wall-mountable
• LED Indicators: Power, Link/Activity per port

Power

• Power Supply: External power adapter
• Power Consumption: Max 3.7W

Warranty

• Lifetime Hardware Warranty (region-dependent)

Key Features

• 5 auto-sensing Gigabit Ethernet ports for fast and reliable connections
• Non-blocking architecture with 10 Gbps switching capacity
• Fanless, silent operation with metal housing
• Energy Efficient Ethernet reduces power usage
• Simple plug-and-play installation

Meta Description

Netgear GS105UK 5-Port Gigabit Switch with 5 × 10/100/1000 Mbps RJ-45 ports, 10 Gbps switching capacity, silent fanless design, and energy-efficient technology. Reliable and compact network solution for home or office.
