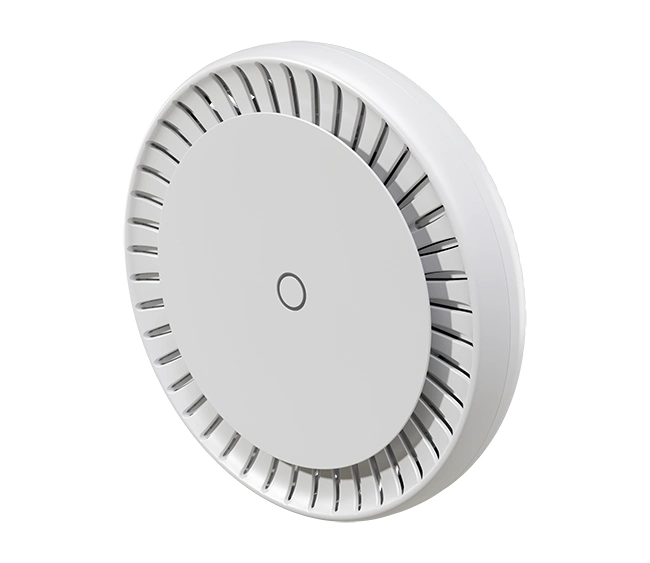

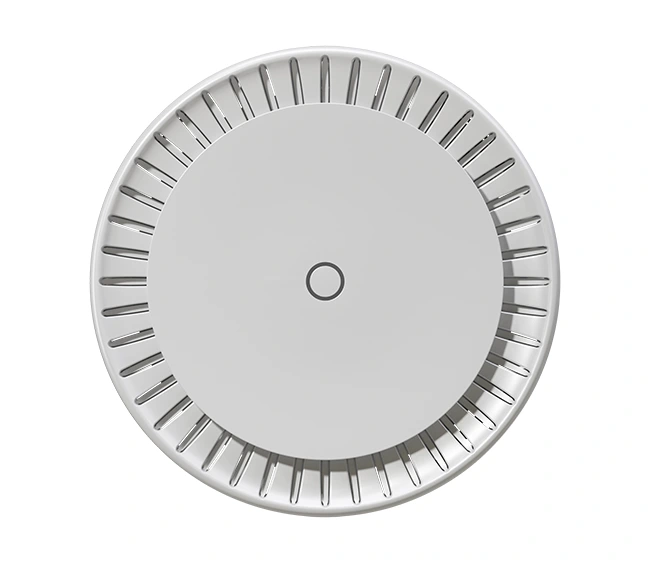

MikroTik cAPGi-5HaxD2HaxD (cAP ax)

The MikroTik cAPGi-5HaxD2HaxD (cAP ax) is a next-generation ceiling-mount wireless access point that brings the power of Wi-Fi 6 (802.11ax) to professional indoor environments. Designed for high-capacity enterprise deployments, it offers dual-band support, fast Gigabit Ethernet, improved spectral efficiency, and higher throughput.

Whether deployed in offices, hotels, shopping centers, or educational institutions, the cAP ax combines sleek design with industrial-grade performance, powered by MikroTik’s RouterOS with a Level 4 license.

🧠 Core Hardware Specifications

• Model: cAPGi-5HaxD2HaxD
• Product Name: cAP ax
• CPU: Quad-core ARM Cortex-A53, 864 MHz (IPQ-6010)
• Architecture: ARM 64-bit
• RAM: 1 GB
• Storage: 128 MB NAND
• Operating System: RouterOS v7 (pre-installed)
• License Level: 4

📶 Wireless Specifications

• Wireless Standards:
  • 2.4 GHz: 802.11b/g/n/ax
  • 5 GHz: 802.11a/n/ac/ax
• Dual-Band Operation: Simultaneous
• 2.4 GHz Band:
  • Max Data Rate: Up to 574 Mbps
  • Chains: 2×2 MIMO
  • Antenna Gain: 4 dBi
• 5 GHz Band:
  • Max Data Rate: Up to 1201 Mbps
  • Chains: 2×2 MIMO
  • Antenna Gain: 5.5 dBi
• Antenna Type: Integrated omnidirectional
• Features: OFDMA, MU-MIMO, BSS coloring, Beamforming
• Coverage: Designed for dense indoor environments

🌐 Networking Interfaces

• Ethernet Ports:
  • 2 × 10/100/1000 Mbps Gigabit Ethernet
  • Port 1 supports 802.3af/at PoE-in
  • Port 2 supports passive PoE-out (up to 57 V, 600 mA)

⚡ Powering Options

• Supported Input Voltage: 18 – 57 V DC
• Powering Methods:
  • PoE-in (802.3af/at)
  • DC jack (optional)
• Power Output: Passive PoE on Port 2
• Maximum Power Consumption: 15 W
• Power Adapter Included: Yes (24 V, 1.5 A)

🔐 Software & Features

• RouterOS v7 with License Level 4
• Routing Protocols: Static, OSPF, BGP, RIP, MPLS
• Security Features:
  • WPA3 support
  • Advanced firewall
  • IPsec, WireGuard, L2TP, SSTP, PPTP
• Management Interfaces: Winbox, WebFig, CLI, SNMP, SSH
• Monitoring Tools: Bandwidth Test, Torch, Packet Sniffer
• Wireless Controller: Full CAPsMAN support

📦 Physical & Environmental

• Enclosure: Ceiling-mountable low-profile plastic housing
• Dimensions: Ø 170 mm × 30 mm
• Weight: ~330 g
• Mounting: Ceiling and wall mount kits included
• Operating Temperature: -40°C to +70°C
• Cooling: Passive (no fan)
• LEDs: Power, Wireless status

📝 Meta Description

MikroTik cAPGi-5HaxD2HaxD (cAP ax) is a ceiling-mount Wi-Fi 6 dual-band access point featuring 2×2 MIMO, 1 GB RAM, Gigabit Ethernet with PoE-in/out, and full RouterOS functionality—perfect for enterprise-grade indoor wireless networks demanding high throughput and reliability.
