MikroTik RBcAPGi-5acD2nD-XL (cAP XL ac)

The MikroTik RBcAPGi-5acD2nD-XL (cAP XL ac), also known as the cAP XL ac, is an enhanced version of the original cAP ac. It features a larger antenna design and a higher TX power to improve indoor Wi-Fi coverage, making it ideal for high-density and challenging environments such as schools, hotels, shopping centers, and corporate offices.

With dual-band concurrent 2.4 GHz and 5 GHz wireless, full RouterOS functionality, and a sleek design, the cAP XL ac delivers enterprise-grade performance in a low-profile ceiling-mount form factor.

🧠 Core Hardware Specifications

• Model: RBcAPGi-5acD2nD-XL
• Product Name: cAP XL ac
• CPU: Qualcomm Atheros QCA9556, 720 MHz
• Architecture: MIPSBE
• RAM: 128 MB
• Storage: 16 MB Flash
• Operating System: RouterOS
• License Level: 4

📶 Wireless Specifications

• Dual-Band Operation: Yes (simultaneous)
• 2.4 GHz Radio:
  • Standards: 802.11b/g/n
  • Max Data Rate: 300 Mbps
  • Chains: 2×2 MIMO
  • Antenna Gain: 4 dBi
• 5 GHz Radio:
  • Standards: 802.11a/n/ac
  • Max Data Rate: 867 Mbps
  • Chains: 2×2 MIMO
  • Antenna Gain: 7.5 dBi
• Antenna Type: Integrated high-gain omnidirectional
• TX Power: Higher than standard cAP ac, improved coverage
• Wireless Modes: AP, bridge, station, repeater, WDS
• Coverage Area: Up to 100% increased coverage over standard cAP ac

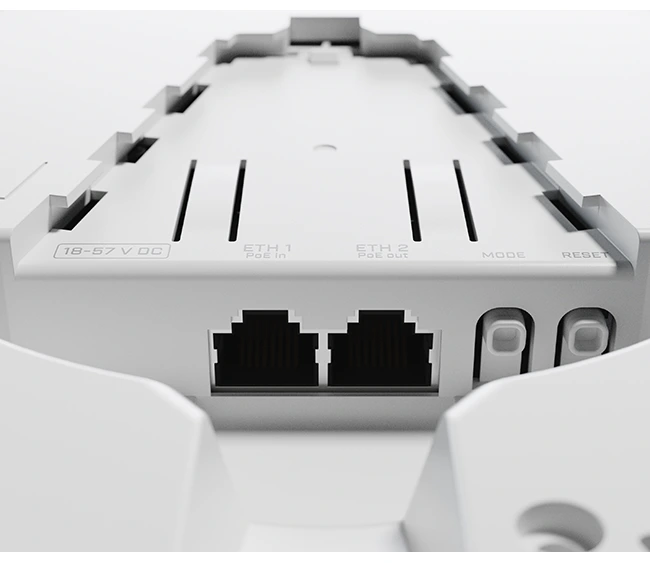

🌐 Networking Interfaces

• Ethernet Ports:
  • 2 × 10/100/1000 Mbps Gigabit Ethernet
  • Port 1: PoE-in (802.3af/at or passive)
  • Port 2: PoE-out (passive, max 57 V, 500 mA output)

⚡ Powering Options

• Input Voltage Range: 18–57 V DC
• Power Input Methods:
  • Passive PoE
  • 802.3af/at
  • DC Jack
• Power Output: Passive PoE (on second port)
• Maximum Power Consumption: 13 W
• Power Adapter Included: Yes (24 V, 1.2 A)

🔐 Software & Features

• RouterOS Level 4 License: Full AP and bridge capabilities
• CAPsMAN Support: Yes (managed AP mode)
• Routing Protocols: Static, OSPF, BGP
• Firewall & NAT: Yes
• VPN: IPsec, L2TP, PPTP, SSTP, OpenVPN
• QoS: Queue management, bandwidth control
• Management Tools: Winbox, WebFig, CLI, SNMP, SSH
• Monitoring: Netwatch, Ping, Torch, Packet Sniffer

📦 Physical & Environmental

• Enclosure: Enhanced XL plastic housing
• Dimensions: Ø 160 mm × 31 mm
• Weight: ~330 g
• Mounting: Ceiling or wall mount (kits included)
• Operating Temperature: -40°C to +70°C
• Cooling: Passive
• LED Indicators: Wireless and Ethernet status

📝 Meta Description

MikroTik RBcAPGi-5acD2nD-XL (cAP XL ac) is a high-power, ceiling-mount dual-band Wi-Fi access point with enhanced antenna gain, 2×2 MIMO, Gigabit ports, PoE-in/out, and full RouterOS support—perfect for large indoor spaces needing reliable enterprise-grade wireless coverage.
