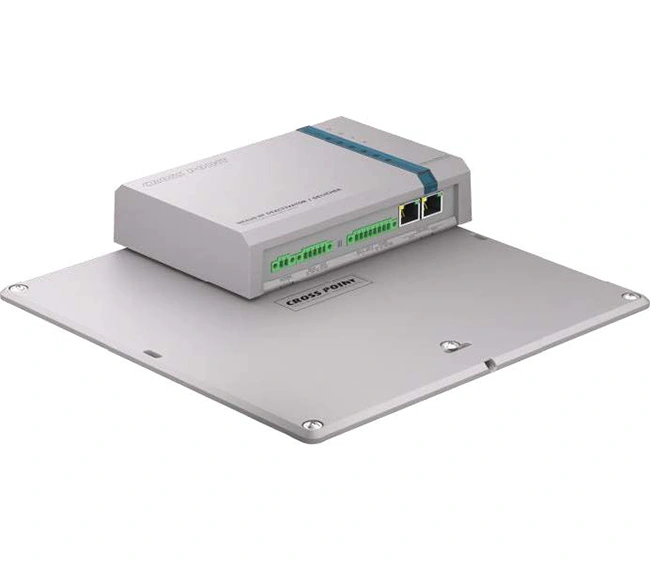

Cross Point RF Deactivator

The Cross Point RF Deactivator is a high-speed, compact 8.2 MHz EAS label deactivator designed for use at retail checkout counters. It ensures seamless label detection and deactivation, supporting fast-paced POS operations while providing advanced visual and audible feedback to operators. Engineered for high throughput and integration readiness, it meets the rigorous demands of modern retail security infrastructure.

RF & Detection Specifications

• Frequency Range: 8.2 MHz ± 0.5 MHz
• Label Compatibility: RF soft labels (paper/adhesive/disposable)
• Detection Height: Up to 30 cm for 4 × 4 cm labels
• Deactivation Rate: Up to 120 labels per minute
• Detection & Deactivation Logic: Detect-before-deactivate algorithm ensures label presence before processing
• Technology: Single-loop and dual-loop antenna support for scanner integration or stand-alone operation

Physical & Mechanical Specifications

• Dimensions: Approx. 240 mm × 240 mm active surface area
• Build Material: Industrial-grade ABS plastic housing
• Mounting Options:
  • Countertop with optional sleek cover
  • Under-counter flush integration
• Design: Low-profile form factor to maximize counter space

Electrical Specifications

• Input Voltage: 220 VAC
• Power Output: 18 V DC, 1 A (18 W)
• Consumption: Low power draw with efficient internal processing
• POS Integration: Deactivation function controllable via POS system interlock

User Interface & Feedback

• Visual Indicator: LED panel confirms label detection and successful deactivation
• Audio Feedback: Configurable buzzer signals success/failure per label
• Adjustable Settings: Buzzer volume, detection sensitivity, and LED indicators customizable

Operational Features

• Smart Count Logging: Tracks quantity and timestamps of deactivations (optional feature)
• CrossCONNECT Compatibility:
  • Enables remote diagnostics, reporting, and firmware updates
  • Supports integration with store-level monitoring systems
• Security Monitoring: Real-time operational status and device alerts available (connected variant only)

Installation & Compatibility

• Supported Systems: Fully compatible with Cross Point RF antenna systems (e.g., MODUS RF30)
• Integration: Works with most POS scanners using scanner loop or antenna field
• Connectivity Options: Standard power and optional POS data port for interlock

Environmental Conditions

• Operating Temperature: 0 °C to 45 °C
• Humidity: 0% to 90% non-condensing
• Durability: Designed for continuous operation in retail environments with high transaction volumes

Benefits

• Fast and reliable deactivation for a smoother checkout process
• Visual and audible confirmation eliminates uncertainty for staff
• Reduces false alarms at store exits when paired with RF pedestals
• Supports analytics and reporting with optional connected capabilities
• Easy to install and compatible with standard retail counter setups
