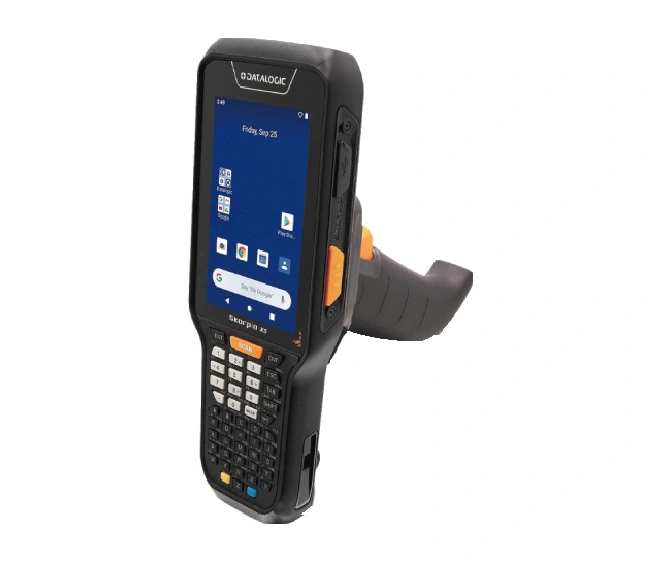

Datalogic Skorpio X4 Handheld Mobile Computer

The Datalogic Skorpio X4 Handheld Mobile Computer is a rugged, handheld mobile computer designed for mobile commerce and intralogistics in retail, warehouse, and field environments. It combines a high-performance CPU, large touch screen, configurable keyboards, and 1D/2D barcode scanning, all housed in a durable IP64-rated design.

Processor & Operating System

• CPU: Texas Instruments OMAP4, 1 GHz dual-core architecture
• OS: Options of Windows Embedded Compact 7 or Android 4.4 (upgradeable/service center swap)

Memory & Storage

• RAM: 1 GB standard
• Flash Storage: 8 GB onboard
• Expansion: Micro‑SDHC slot, supports cards up to 32 GB

Display & Input

• Screen: 3.2″ transflective QVGA touch LCD, 240 × 320 pixels (~125 ppi), LED backlight
• Keypad Options:
  • 50-key full alphanumeric
  • 38-key functional
  • 28-key numeric
    All keypad variants are backlit

Barcode & Imaging

• Scanner Type: 1D laser or 1D/2D imager with “Green Spot” good‑read LED
  • Options include standard-range and near/far auto-range 2D imagers

Communication & Connectivity

• Wi‑Fi: IEEE 802.11 a/b/g/n with dual-band support and MIMO antennas, CCX v4 certified
• Bluetooth: v4.0 + BLE (Android), v2.1 + EDR (Windows)
• Wired: USB 2.0 Host/Client, micro-USB, RS232 (main connector)

Durability & Environmental

• Drop Rating: Up to 1.8 m (6 ft) onto concrete
• Sealing: IP64 rated (dust-tight, splash-proof)
• Operating Temp: –10 °C to 50 °C (14 °F to 122 °F)

Dimensions & Weight

• Handheld Model: Approx. 193 × 76 × 42 mm, 388 g with battery
• Pistol Grip Version: 193 × 76 × 156 mm, ~516 g with extended battery

Battery & Power

• Standard Battery: Removable 3,000 mAh Li‑Ion (11.1 Wh)
• Extended (Pistol Grip): 5,200 mAh (19.2 Wh)
• Battery Life: Up to 12 hours typical usage (varies by configuration)

Audio & Camera

• Audio: Integrated speaker and microphone; Wide Band Audio support (Android)
• Camera: 5 MP rear camera for documentation and scanning tasks

Additional Features

• GPS: Integrated support for location tracking
• Accessories: Pistol-grip handle, multi-slot dock, charging cradle, extended batteries, holsters; backward compatible with Skorpio X3 accessories
• Green Spot technology: Audible and visual confirmation of successful scans

Meta Description

High-performance Datalogic Skorpio X4 Handheld rugged mobile computer: 1 GHz OMAP4 CPU, 1 GB RAM/8 GB storage expandable to 32 GB, 3.2″ touch QVGA display, configurable 28/38/50-key backlit keypad, 1D/2D imaging, dual-band Wi‑Fi + BT, IP64 durability, 1.8 m drop resistance, long-life Li‑Ion battery, and ergonomic pistol-grip accessory—ideal for retail and warehouse operations.
