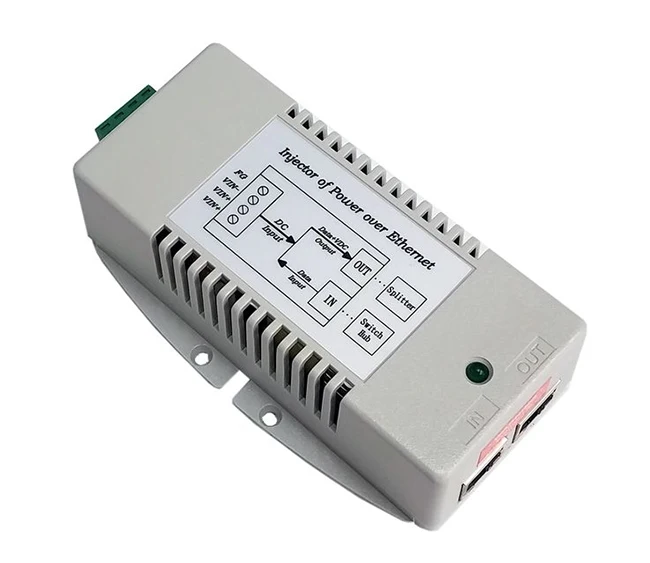

Tycon TP-DCDC-4824G-HP – DC to DC Converter

The Tycon TP-DCDC-4824G-HP is a high-power, industrial-grade DC-to-DC converter designed to deliver reliable, regulated 24VDC output from a 48VDC input source, with integrated Gigabit passive PoE injection. Built for demanding applications in harsh environments, this unit supports up to 50W of power, making it suitable for high-power wireless radios, IP cameras, and industrial automation systems.

Engineered with robust protections, wide input voltage range, and exceptional efficiency, the TP-DCDC-4824G-HP ensures stable operation in mission-critical remote power applications such as WISP networks, surveillance, and intelligent transportation systems.

Electrical Specifications

• Input Voltage Range: 36VDC to 72VDC
• Input Current: 1.25A @ 48VDC input (typical under full load)
• Output Voltage: 24VDC ± 5% (regulated)
• Output Power: 50W continuous
• Efficiency: > 90% @ 48V input
• Output Current: 2.1A @ 24VDC
• PoE Output Type: Passive PoE, non-802.3af/at compliant
• PoE Pinout (Gigabit Compatible): Pins 4,5 (+), 7,8 (−)
• Output Ripple: < 100mV peak-to-peak
• Load Regulation: ±1%
• Line Regulation: ±1%
• Isolation: Non-isolated DC-DC converter
• Startup Time: < 2 seconds (typical)

Mechanical Specifications

• Dimensions: 99mm x 58mm x 24mm (3.9″ x 2.3″ x 0.95″)
• Weight: 180g (0.40 lbs)
• Enclosure: High-strength, impact-resistant ABS plastic
• Mounting Options: Integrated mounting tabs for wall or DIN rail installations
• Connectors:
  • Input: Wire leads (Red [+], Black [−])
  • Output: RJ-45 shielded PoE/Data jack

Environmental Ratings

• Operating Temperature: -40°C to +70°C (−40°F to +158°F)
• Storage Temperature: -40°C to +85°C (−40°F to +185°F)
• Humidity: 5% to 95% non-condensing
• Cooling: Passive (convection cooled, no moving parts)
• Ingress Protection: IP20 (indoor-rated enclosure)

Compliance & Safety

• EMC Compliance: FCC Class B, CE
• ESD Protection: ±15kV Air Discharge, ±8kV Contact
• Surge Protection: IEC 61000-4-5 Compliant
• Input Reverse Polarity Protection: Yes
• Overload Protection: Yes (auto-recovery)
• Short Circuit Protection: Yes
• Overvoltage Protection: Yes

Application Scenarios

• High-power wireless access points and CPE radios
• Long-range IP surveillance cameras
• Industrial and transportation control systems
• Remote power deployments for telecom base stations
• Outdoor enclosures where regulated 24VDC PoE is required

Features Summary

• Converts 48VDC to regulated 24VDC with up to 50W output
• Supports Gigabit passive PoE for high-speed data + power
• Built-in surge, ESD, short-circuit, and polarity protection
• Wide input voltage range for versatile power compatibility
• Rugged design for extreme temperature and environmental conditions
• Easy integration with RJ-45 PoE output and wire-lead input
• Compact and reliable solution for remote or off-grid power delivery

Meta Description:
Tycon TP-DCDC-4824G-HP is a high-power 48V to 24V passive PoE converter delivering 50W output with Gigabit support, ideal for IP cameras, radios, and industrial systems in harsh environments.
