TP-Link 5GHz 300Mbps 23dBi Outdoor CPE – CPE610
- Up to 300Mbps on 5GHz wireless data rates
- 23dBi high-gain directional 2×2 MIMO antenna and a dedicated metal reflector, ideal for long-distance wireless transmission up to 30km
- Excellent beam directivity, improved latency and noise cancellation

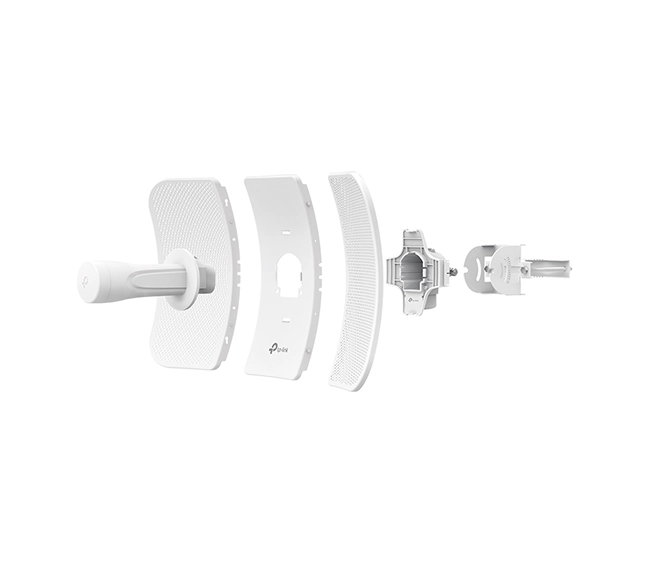

- Innovative snap-lock parts make for fast assembly and a sturdy structural design keeps CPE610 stable even in strong winds
- Durable IP65 weatherproof enclosure along with 15 kV ESD and 6 kV lightning protection ensures all-weather suitability
- TP-Link Pharos MAXtream TDMA technology improves throughput, capacity and latency performance
- Pharos Control gives administrators a free, centralized management system
- Passive PoE supports to allow flexible deployment and convenient installation
The TP-Link 5GHz 300Mbps 23dBi Outdoor CPE – CPE610 is a high-performance outdoor CPE engineered for extremely long-range, high-speed wireless connectivity in the 5 GHz band. Featuring a powerful 23 dBi directional antenna and 300 Mbps 802.11a/n throughput, it is optimized for point-to-point (PtP) and point-to-multipoint (PtMP) applications over distances of up to 30 km.
Built for reliability in harsh environments, it comes with a weatherproof housing, advanced surge protection, and Pharos MAXtream TDMA technology to ensure stable connections even in congested wireless scenarios.
Detailed Specifications
Wireless Standards:
- IEEE 802.11a/n
Frequency Band:
- 5.150–5.875 GHz (varies by country/region)
Wireless Speed:
- Up to 300 Mbps (802.11n, 40 MHz channel width)
Antenna:
- Integrated 23 dBi 2×2 MIMO directional dish antenna
- Beamwidth: 9° (horizontal & vertical) for ultra-focused long-range links
Transmit Power:
- Adjustable up to 27 dBm (500 mW)
Range Performance:
- Point-to-point: up to 30 km (clear line-of-sight)
- Point-to-multipoint: extended range with optimal deployment
Processor & Memory:
- Qualcomm Atheros Enterprise 560 MHz CPU
- 64 MB DDR2 RAM, 8 MB Flash
Operation Modes:
- Access Point (AP)
- Client (AP Client/Station)
- Repeater
- AP Router (WISP)
- Bridge
Ethernet Port:
- 1× 10/100 Mbps Shielded Ethernet Port (Passive PoE in)
PoE Power Supply:
- Passive PoE adapter included (up to 60 meters)
- Power: 16–27V DC via PoE
Management & Software Features:
- Pharos Control centralized management platform
- Pharos MAXtream TDMA technology for improved multi-user performance
- QoS for traffic prioritization
- VLAN support
- Watchdog for automatic system recovery
Security:
- WPA/WPA2-PSK and WPA/WPA2-Enterprise encryption
- Wireless MAC filtering
- Access control lists
Enclosure & Durability:
- Outdoor weatherproof housing (IPX5-rated)
- Operating temperature: -30°C to 70°C
- Built-in 15 kV ESD and 6 kV lightning protection
Dimensions & Weight:
- 280 × 280 × 184 mm
- Weight: ~1.9 kg
Key Features
- Ultra-long-range 5 GHz wireless connectivity up to 30 km
- Powerful 23 dBi directional antenna for focused and stable links
- 300 Mbps 802.11a/n performance with 2×2 MIMO
- Weatherproof IPX5 design with advanced lightning and ESD protection
- Passive PoE for flexible installation up to 60 m
- Centralized management via Pharos Control software
Meta Description
TP-Link 5GHz 300Mbps 23dBi Outdoor CPE – CPE610, PoE support, and IPX5 weatherproof design. Ideal for ultra-long-range Wi-Fi, WISP, and surveillance links.
