TP-Link 5-Port 10/100/1000Mbps Desktop Switch (TL-SG1005D)

TheTP-Link 5-Port 10/100/1000Mbps Desktop Switch (TL-SG1005D) is a 5-Port Gigabit desktop switch designed for small office and home networks that require high-speed, reliable wired connectivity. Built in a rugged metal casing with plug-and-play installation, this unmanaged switch delivers seamless network expansion with intelligent features like QoS and IGMP Snooping to improve overall traffic efficiency.

It’s an excellent choice for users seeking performance, stability, and energy efficiency in a compact form factor.

🧠 Hardware Specifications

• Model: TL-SG105
• Ports: 5 × 10/100/1000 Mbps RJ45 Ethernet ports
• Switching Capacity: 10 Gbps
• Forwarding Rate: 7.44 Mpps
• MAC Address Table: 2K entries
• Buffer Memory: 1 Mb
• Jumbo Frame Support: Up to 16 KB
• Switching Method: Store-and-forward
• Auto-Negotiation: Yes
• Auto MDI/MDIX: Yes

🌐 Networking Standards

• IEEE 802.3
• IEEE 802.3u
• IEEE 802.3ab
• IEEE 802.3x

⚡ Power & Energy Efficiency

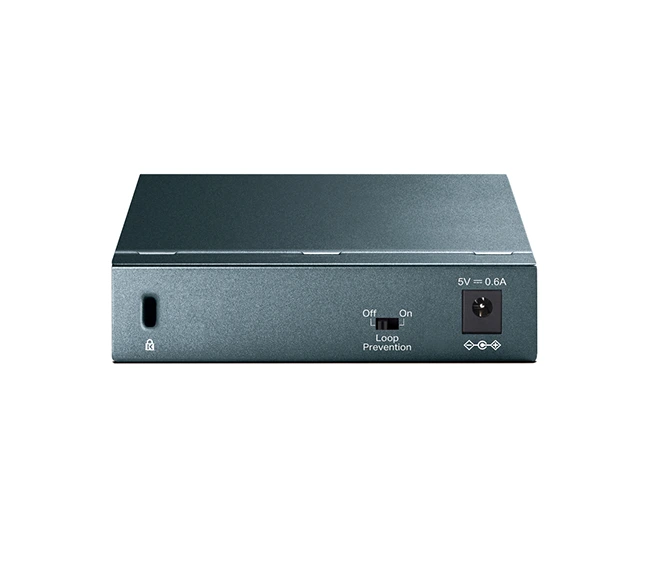

• Power Supply: External 5V / 0.6A
• Maximum Power Consumption: <3W
• Energy Saving: Yes, via Green Ethernet
• Fanless Design: Yes (silent operation)

📦 Physical Specifications

• Dimensions: 100 × 98 × 25 mm
• Enclosure: Metal
• Mounting Options: Desktop or wall-mount
• LED Indicators: Power, Link/Activity per port

🧩 Advanced Features

• QoS (Quality of Service): Supports 802.1p/DSCP for traffic prioritization
• IGMP Snooping: Optimizes multicast data streaming
• Loop Prevention: Reduces network loops
• Flow Control: 802.3x full-duplex and backpressure for half-duplex

🌡 Environmental Specifications

• Operating Temperature: 0°C to 40°C
• Storage Temperature: -40°C to 70°C
• Operating Humidity: 10%–90% RH non-condensing
• Storage Humidity: 5%–90% RH non-condensing

📝 Meta Description

TP-Link 5-Port 10/100/1000Mbps Desktop Switch (TL-SG1005D) is a 5-port Gigabit unmanaged switch featuring 10 Gbps switching capacity, energy-efficient Green Ethernet, fanless metal housing, QoS, and IGMP Snooping support. Ideal for expanding high-speed wired networks in home or office environments.
