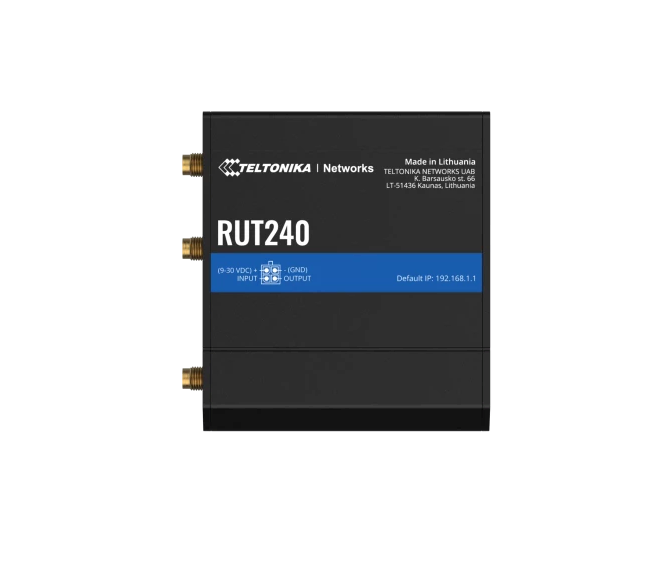

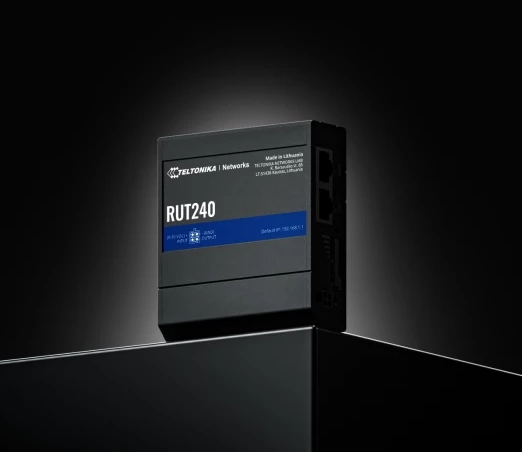

Teltonika RUT240 4G/LTE WiFi Cellular Router

The Teltonika RUT240 4G/LTE WiFi Cellular Router is a compact industrial-grade 4G LTE router designed for IoT, M2M, and remote connectivity applications. Supporting LTE Cat 4 speeds up to 150 Mbps, dual Ethernet ports, and 2.4 GHz Wi-Fi for up to 50 clients, the RUT240 delivers reliable and secure network access in challenging environments.

With advanced VPN protocols, WAN failover, digital I/O, and rugged design rated for –40 °C to +75 °C, it’s ideal for smart infrastructure, automation, transportation, and energy sectors. Remote management through Teltonika RMS ensures full control and monitoring from anywhere.

Performance & Connectivity

• Cellular: LTE Cat 4 (150 Mbps DL / 50 Mbps UL), 3G (DC-HSPA+), 2G fallback
• Wi‑Fi: 802.11 b/g/n (2.4 GHz), supports AP & Station modes, up to 50 clients
• Ethernet: 2× 10/100 Mbps (1× WAN configurable as LAN, 1× LAN)
• Failover & Redundancy: Auto WAN failover between cellular and Ethernet (ICMP-based health checks)

Hardware & I/O

• CPU & Memory: MIPS-24Kc CPU @ 400 MHz; 128 MB DDR2 RAM, 16 MB Flash
• SIM: Mini SIM holder (1.8 V/3 V), accessible externally
• Digital I/O: 1× digital input, 1× open-collector output (max 300 mA @ 30 V)
• Antennas: 2× SMA (LTE), 1× RP-SMA (Wi‑Fi)
• Reset: Physical reset/reboot button

Power & Build

• Power Input: 9–30 V DC via 4-pin terminal or adapter
• Power Consumption: < 5 W under typical load
• Housing: Aluminum body with plastic panels; optional DIN-rail mount
• Dimensions & Weight: 83 × 74 × 25 mm; 125 g

Environment Ratings

• Operating Temp: –40 °C to +75 °C
• Humidity: 10–95% non-condensing
• EMC & Durability: ISO-rated for shock and vibration

Software & Security

• Firmware: RutOS (OpenWrt‑based), secured with BusyBox
• VPN Support: IPsec, OpenVPN, GRE, L2TP, PPTP, SSTP, Stunnel, WireGuard
• Firewall & Networking: NAT, DMZ, VLAN, VLAN tagging (including tag-based segregation), bridging, passthrough, multiple PDNs
• Wi‑Fi Security: WPA2/WPA3-PSK, WPA2-Enterprise (PEAP/EAP-TLS), OWE, PMF, MAC filtering
• Management: Web UI, CLI, SNMP, RMS, secure SSH, NTP, email alerts, SMS control (SMS→HTTP, HTTP→SMS)

Monitoring & Diagnostics

• Network Stats: RSSI, SINR, RSRP, RSRQ, EC/IO, RSCP, data usage, APN, cell ID info
• Band Control: Band lock and monitor capabilities
• SMS/USSD: Supports two-way SMS, USSD sessions, scheduled SMS, SMS-to-HTTP gateway

Mounting & Accessories

• Mounting Options: Wall, DIN rail, desktop
• Included: External antennas and power cable; optional DIN-rail kit
• RMS Compatibility: Seamless integration with Teltonika Remote Management System for monitoring and remote control

Lifecycle & Comments

• EOL Schedule: Order ends July 2023, production ends December 2023, support until July 2028
• Successor Model: RUT200 offers enhanced features and longevity

Summary

The Teltonika RUT240 offers a complete industrial router package: LTE Cat 4, dual Ethernet, Wi‑Fi hotspot, robust VPN suite, digital I/O, and wide operating conditions—all in a compact metal case. It’s ideal for remote IoT deployment, backup connectivity, and industrial automation.

Meta Description

Teltonika RUT240 4G/LTE WiFi Cellular Router is a compact LTE Cat 4 router with dual Ethernet, Wi-Fi, VPN, WAN failover, and remote management. Built for industrial and IoT environments.

Datasheet
