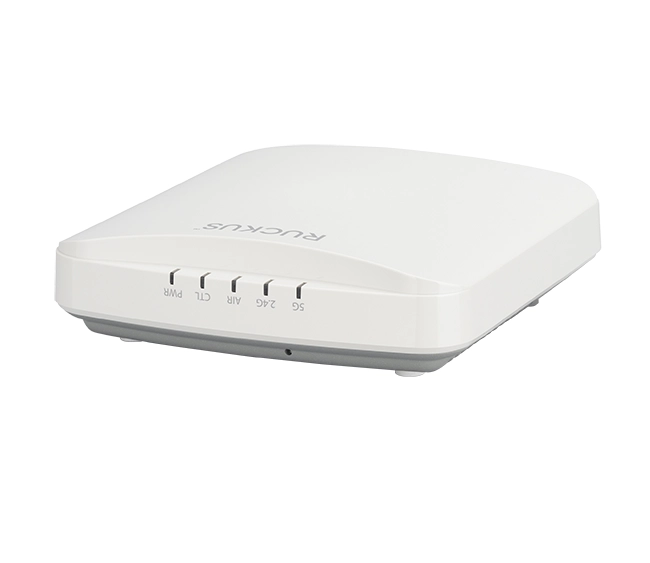

RUCKUS R350 Indoor Access Point

The RUCKUS R350 Indoor Access Point is a compact, enterprise-grade Wi-Fi 6 (802.11ax) indoor access point designed for small to medium environments that demand reliable performance, high efficiency, and cost-effectiveness. It supports 2×2:2 MU-MIMO in both 2.4 GHz and 5 GHz bands, delivering improved capacity and coverage for offices, classrooms, hospitality venues, and retail spaces.

With BeamFlex+ adaptive antenna technology, OFDMA, and advanced security, the R350 ensures consistent connectivity for modern client devices.

Detailed Specifications

Wi-Fi Standards:

• IEEE 802.11a/b/g/n/ac/ax (Wi-Fi 6)
• Dual-band concurrent: 2.4 GHz & 5 GHz

Performance:

• Max Data Rate: 1.2 Gbps (574 Mbps @ 2.4 GHz + 1200 Mbps @ 5 GHz)
• Streams: 2×2:2 (both bands)
• OFDMA & MU-MIMO for simultaneous multi-user performance
• Client Capacity: Up to 256 concurrent clients

Antenna & RF:

• BeamFlex+ adaptive antenna technology with polarization diversity
• Integrated antennas: 2.4 GHz (2×2), 5 GHz (2×2)
• Antenna Gain: 2.4 GHz: 3 dBi, 5 GHz: 4.3 dBi

Interfaces:

• 1 × 1 GbE RJ-45 port with PoE/PoE+ (802.3af/at)
• 1 × USB 2.0 port
• 1 × Reset button

Power:

• Power Input: PoE (802.3af/at) or 12V DC adapter
• Power Consumption:
  • Idle: ~5.7W
  • Peak: ~8.9W

Security:

• WPA2, WPA3, WPA2/WPA3 Mixed Mode
• AES encryption
• Secure Boot, L2/L3/L4 ACLs, Dynamic PSK
• Enhanced open and protected management frames

Management:

• Managed via RUCKUS SmartZone, ZoneDirector, Cloudpath, or Unleashed (controller-less)
• SNMP v1/v2c/v3
• Web-based GUI

Physical:

• Dimensions: 160 mm × 160 mm × 38 mm
• Weight: 0.5 kg
• Mounting: Ceiling or wall mount options

Environmental:

• Operating Temperature: 0°C to 50°C
• Humidity: 10%–95% non-condensing

Key Features

• Wi-Fi 6 with 2×2 MU-MIMO for efficient connectivity
• Up to 1.2 Gbps total data rate
• BeamFlex+ adaptive antennas for stronger, more reliable signals
• Compact form factor for versatile indoor deployment
• Supports up to 256 clients per AP
• Flexible management options: cloud, controller, or standalone

Meta Description

RUCKUS R350 Indoor Access Point Wi-Fi 6 with 2×2 MU-MIMO, up to 1.2 Gbps, BeamFlex+ antennas, and OFDMA for high-efficiency wireless in small to medium spaces.
