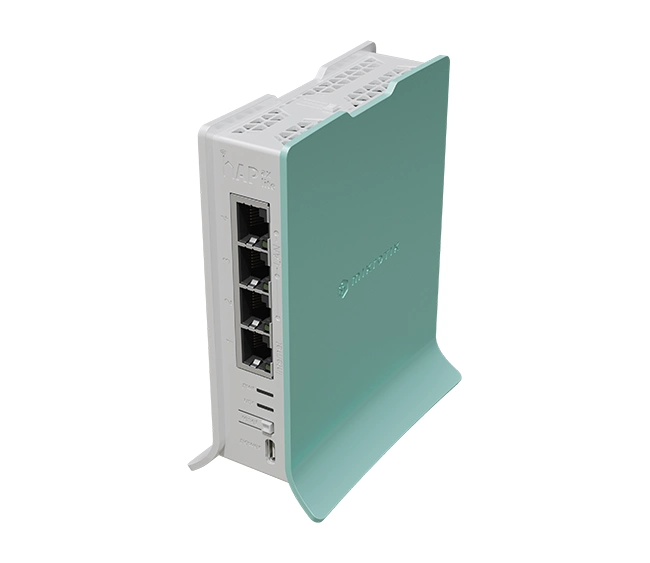

MikroTik L41G-2axD (hAP ax lite)

The MikroTik L41G-2axD (hAP ax lite) is a compact, next-generation home access point powered by Wi-Fi 6 (802.11ax) and Gigabit Ethernet. It features a dual-core CPU, upgraded memory, and the latest RouterOS v7 for exceptional speed, performance, and flexibility in modern home or SOHO environments. This model is specifically optimized for 2.4 GHz wireless operation, offering enhanced performance for environments with legacy devices or high wall density.

Core Specifications

• Product Code: L41G-2axD
• Product Name: hAP ax lite
• Architecture: ARM 64bit
• CPU Model: Qualcomm IPQ-5010
• CPU Cores: 2 (dual-core)
• CPU Frequency: 800 MHz
• RouterOS Version: Preinstalled with RouterOS v7
• License Level: Level 4
• RAM: 256 MB
• Storage Type: NAND
• Storage Size: 128 MB
• MTBF: Approximately 200,000 hours at 25°C
• Operating System: RouterOS v7 only (does not support RouterOS v6)

Wireless Specifications

• Wireless Standard: 2.4 GHz Wi-Fi 6 (802.11ax)
• Max Wireless Speed: Up to 574 Mbps
• Wireless Chipset: Integrated IPQ-5010
• Wireless Chains: 2 (2×2 MIMO)
• Antenna Gain: 4.3 dBi (dual-chain internal antennas)
• Channel Width: Up to 40 MHz on 2.4 GHz
• Transmit Power: Adjustable, up to 26 dBm (dependent on regulations)
• Antenna Type: Integrated PCB antennas
• Supported Wireless Modes: AP, client, WDS, bridge, station, mesh
• Security Features: WPA3 support, firewall rules, wireless access control lists, VLAN over Wi-Fi

Ethernet & Networking

• Ethernet Ports: 4 × 10/100/1000 Mbps Gigabit Ethernet
• Switch Chip: MT7531BE
• Auto MDI/X Support: Yes
• VLAN Support: 802.1Q, 802.1ad, hardware offloading supported
• Bridge Hardware Offloading: Yes
• QoS & Traffic Control: Supported via RouterOS (HTB, SFQ, PCQ, etc.)

Power & Electrical

• Power Input Method: USB-C connector
• Input Voltage Range: 5 V DC
• Power Adapter Included: Typically supplied with 5 V, 3 A adapter
• Max Power Consumption: 8 W
• PoE Support: No
• Backup Power Option: USB-C power bank compatible (for mobile setups)

Physical and Environmental

• Form Factor: Desktop
• Enclosure: Plastic (IP20 rating – indoor use only)
• Color: Matte white
• Dimensions: 101 × 101 × 37 mm
• Weight: ~200 g
• Operating Temperature: –40°C to +70°C
• Cooling: Passive (fanless)

LEDs and Controls

• LED Indicators: Power, Ethernet activity (per port), Wireless status
• Button: Mode button for reset, configuration trigger, or user-defined function

Software Features (RouterOS v7)

• Firewall and NAT: Full-featured configurable firewall
• Routing Protocols: Static, RIP, OSPF, BGP, MPLS, IPv6
• Bridge and Switch: Hardware offloading, port isolation, VLAN filtering
• Wireless Management: CAPsMAN v2 support
• VPN Support: WireGuard, IPsec, L2TP, SSTP, PPTP, OpenVPN
• Advanced Features: Hotspot, RADIUS client, user management
• Monitoring Tools: Ping, Traceroute, SNMP, DHCP monitoring, Torch
• Configuration Tools: Winbox, WebFig, SSH, CLI, REST API

Use Cases

• Ideal for modern home Wi-Fi networks needing fast 2.4 GHz performance
• Small office networks where Wi-Fi 6 and Gigabit LAN are required
• Mobile or portable setups using USB-C power input
• Cost-effective Wi-Fi AP with RouterOS capabilities
• Use in dense environments with interference on 5 GHz

What’s Included in the Box

• MikroTik hAP ax lite (L41G-2axD) device

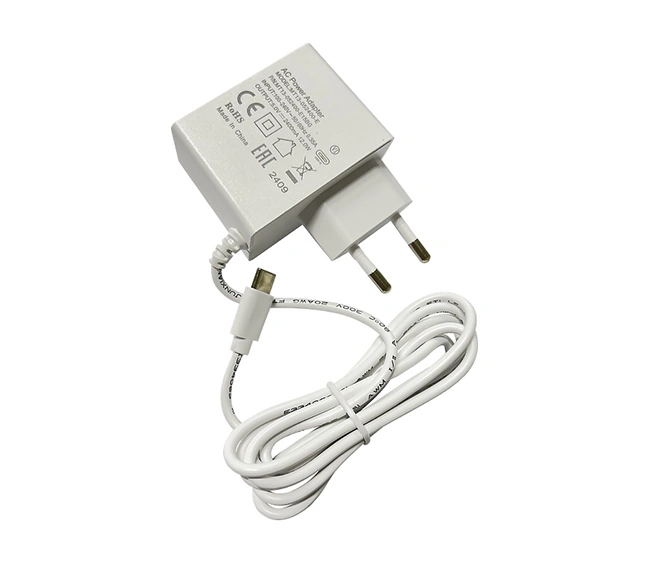

• USB-C power adapter (5V, 3A)
• Quick start guide

Meta Description

MikroTik L41G-2axD (hAP ax lite) is a compact Wi-Fi 6 access point with 2.4 GHz AX connectivity, dual-core CPU, 4× Gigabit Ethernet ports, USB-C power, 256 MB RAM, and RouterOS v7—ideal for home or small office wireless networks.
