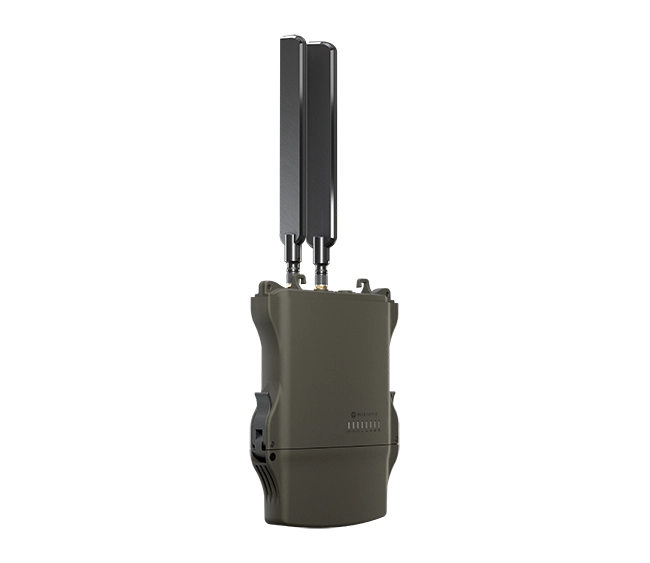

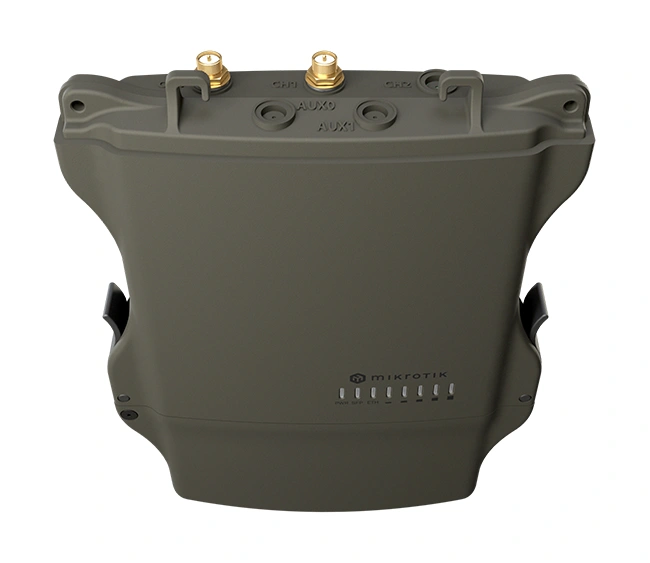

MikroTik L23UGSR‑5HaxD2HaxD‑NM (NetMetal ax) – Outdoor Wi‑Fi 6

The MikroTik L23UGSR‑5HaxD2HaxD‑NM (NetMetal ax) is an industrial-grade outdoor Wi‑Fi 6 routerboard designed for custom CPEs, access points, and long-range wireless deployments. With dual-band Wi‑Fi 6, flexible wired interfaces, modular antenna connectors, and a durable IP‑66 enclosure, it’s a powerful solution for demanding outdoor networking.

General & Hardware

• Model: L23UGSR‑5HaxD2HaxD‑NM
• CPU: Dual-core Qualcomm IPQ‑5010 @ 800 MHz (ARM)
• RAM: 256 MB DDR3L
• Storage: 128 MB NAND
• OS: RouterOS v7 (License Level 4)
• MTBF: ~200 000 hours @25 °C
• Operating Range: –40 °C to +70 °C (weatherproof IP 66)

Wireless

• 2.4 GHz (802.11b/g/n/ax): Dual-chain, up to 574 Mbps
• 5 GHz (802.11a/n/ac/ax): Dual-chain, up to 1200–2400 Mbps
• Antenna Connectors: 4× MMCX (RP‑SMA on NM model) for external antennas, with potential link distances up to 30 km depending on antenna

Interfaces & Expansion

• Ethernet: 1× Gigabit RJ45 with passive PoE‑in (18–28 V)
• Fiber: 1× 2.5 Gbps SFP port (fiber backhaul)
• USB: 1× USB‑A 2.0 (max 1.5 A)
• miniPCIe: Slot available for modules (LTE, LoRa, etc.) + NanoSIM slot

Power & Thermal

• Power Inputs: 1× DC‑jack (12–28 V) and 1× Passive PoE‑in (18–28 V)
• Power Consumption: ~12 W idle, up to 25 W with attachments
• Cooling: Fully passive (fanless) design

Sensors & Extras

• Onboard Monitoring: Voltage and PCB temperature sensors
• Alert Beeper: For warnings or visual notifications

Build & Mounting

• Enclosure: IP 66-rated, single-hand openable outdoor casing
• Mount Options: Pole/tower clamp and DIN-rail mounting included

Meta Description

MikroTik L23UGSR‑5HaxD2HaxD‑NM (NetMetal ax) is a rugged IP 66 outdoor Wi‑Fi 6 routerboard featuring dual-core CPU, dual-band 802.11ax, Gigabit Ethernet, 2.5 Gbps SFP, USB, miniPCIe + NanoSIM slot, dual power inputs, and external antenna support—perfect for custom CPE/AP and long-range wireless networks.
