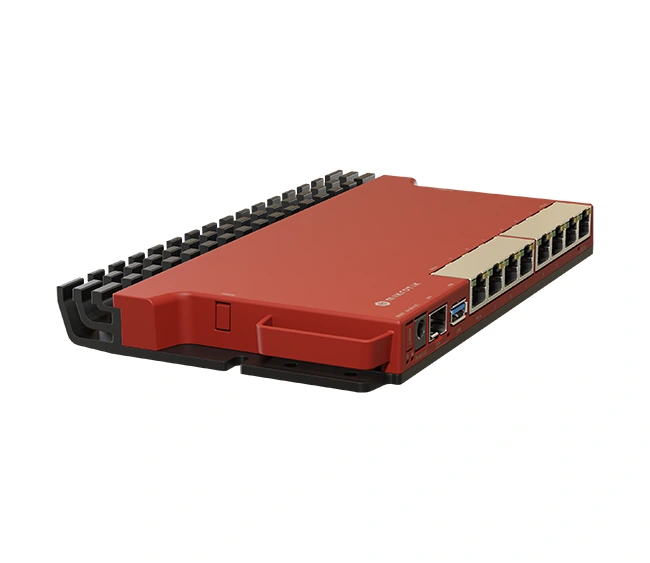

MikroTik L009UiGS-RM Router

The legendary RB2011 product line has provided affordable, flexible, and robust connectivity for over a decade. In fact, it was our very first router with SFP. Finally, it’s time for an upgrade. But don’t worry: we’ve kept and improved all the key elements and features of the beloved RB2011. Even the red color scheme and the appealing price!

There are three main reasons to choose the L009: better performance, more features, and some interesting quality-of-life improvements. Let’s start with the raw power and performance improvements.

L009 features a powerful dual-core ARM CPU. It offers significant improvement when it comes to routing and filtering, complex firewall rules, IPsec hardware encryption, and various advanced RouterOS features. ARM CPU architecture provides significant advantages over older MIPS-based devices. Like using all the latest Linux Kernel features. Or implementing your own container projects. The combination of a modern ARM CPU and a full-sized USB port is perfect for running custom container projects. You could run a Pi-hole adblock on this router, for example. Or you could use the USB to add an LTE modem of your choice. Imagination is the real limit here.

🧠 MikroTik L009UiGS-RM

Next-Gen Routing. Rackmount Simplicity. Enterprise Power.

🔧 Hardware Overview

The L009UiGS-RM is a powerful, cost-effective 1U rackmount router designed to replace the RB2011 series, offering better performance, more ports, and enhanced features for business networks.

• CPU: Dual-core 800 MHz (ARM 32-bit)
• RAM: 512 MB DDR4
• Storage: 256 MB NAND
• Operating System: RouterOS (License Level 5)
• Enclosure: Desktop or 1U Rackmount with metal housing
• Rackmount Kit: K-79 Kit included

🌐 Ports & Connectivity

• 8 × Gigabit Ethernet Ports (10/100/1000 Mbps)
  • Port 1 supports Passive PoE-In
  • Port 8 supports Passive PoE-Out (max 1A)
• 1 × 2.5G SFP Port
  • Ideal for high-speed fiber uplinks
• 1 × USB 3.0 Port
  • For LTE modems, storage, or accessories
• Console Port: RJ45 Serial

⚡ Power Options

• Power Supply Included: 24V 1.5A adapter
• PoE-In on Port 1: 24–57V Passive PoE or 802.3af/at
• PoE-Out on Port 8: Passive PoE up to 1A (same as input voltage)
• Max Power Consumption:
  • 21W with PoE load
  • 7W without PoE devices

🧠 Advanced RouterOS Features (L5 License)

Unlock full enterprise routing and security features:

• Dynamic Routing (OSPF, BGP, RIP)
• Stateful Firewall & NAT
• VLANs, MPLS, VRRP, DHCP, and Queues
• IPsec, L2TP, OpenVPN, SSTP, WireGuard
• CAPsMAN for centralized wireless management
• Monitoring & Logging Tools

🌍 Design & Deployment

• Compact 1U Rackmount or Desktop Design
• Operating Temperature: –40°C to +60°C
• Ideal Use Cases:
  • SMB and enterprise edge routing
  • Branch or retail network aggregation
  • ISP customer premises equipment
  • PoE device aggregation (IP phones, cameras)

🏆 Why Choose L009UiGS-RM?

✅ 8 Gigabit Ports + 2.5G Fiber SFP
✅ PoE-In & PoE-Out Support
✅ USB 3.0 for Modems or Storage
✅ Level 5 RouterOS License – Full Power
✅ Rackmount Kit & PSU Included
✅ Affordable Upgrade from RB2011 Series

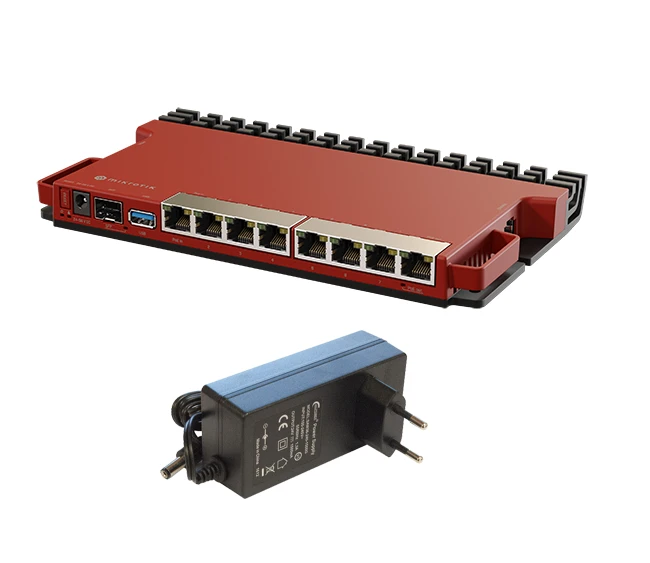

📦 What’s in the Box?

• L009UiGS-RM Router
• 24V 1.5A Power Supply
• K-79 Rackmount Kit
• Rackmount Screws
• Quick Start Guide

Datasheet
