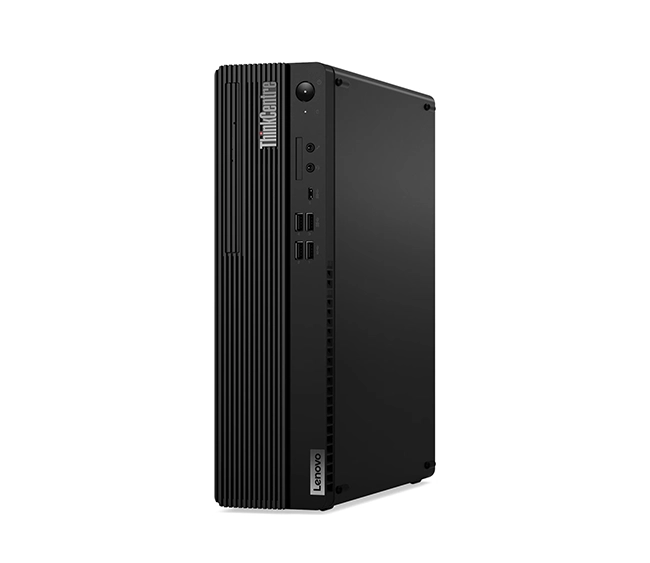

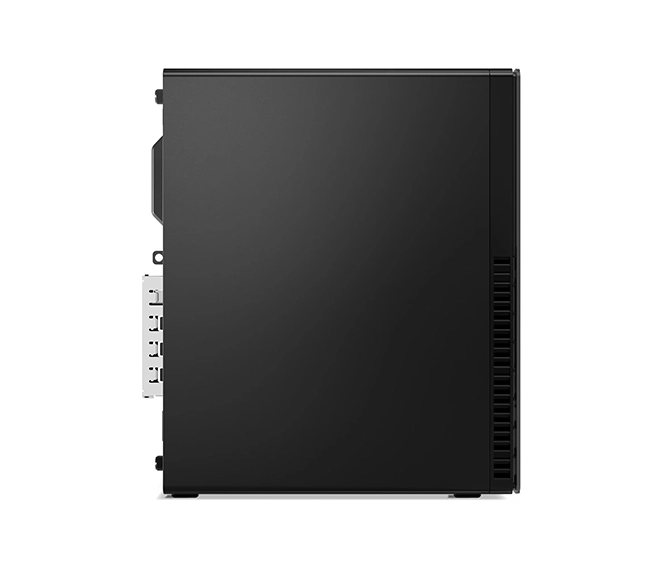

Lenovo ThinkCentre M70s Gen 5 SFF (12U80080UM)

The Lenovo ThinkCentre M70s Gen 5 SFF (12U80080UM) is a compact, enterprise-grade small form factor desktop engineered for secure, high-performance business environments. Powered by a 13th Gen Intel Core i7 processor with Intel vPro Enterprise, DDR5 memory support, and PCIe Gen 4 NVMe storage, it delivers strong computing power, advanced manageability, and long-term reliability for corporate deployments.

Processor & Performance

• Processor: Intel Core i7-13700
• Generation: 13th Gen Intel Core
• Platform Features: Intel vPro Enterprise
• Performance Class: Enterprise multitasking, virtualization, and productivity workloads

Memory (RAM)

• Installed Memory: 8GB
• Memory Type: DDR5
• Memory Speed: 5600 MHz
• Maximum Supported Memory: Up to 64GB
• Upgrade Capability: Yes

Storage

• Storage Capacity: 512GB
• Storage Type: SSD
• Form Factor: M.2 2280
• Interface: PCIe 4.0 x4 NVMe
• Security Standard: Opal 2.0
• Storage Advantages: High-speed data access with hardware-based encryption support

Graphics & Display Support

• Graphics: Integrated Intel Graphics
• Display Outputs (Rear):
  • 1 × HDMI 2.1 TMDS
  • 1 × DisplayPort 1.4a (HBR2, DSC)
• Multi-Monitor Support: Yes

Operating System

• Operating System: No OS pre-installed
• Deployment Scenario: Ideal for enterprise OS imaging and custom installations

Networking & Wireless Connectivity

• Wireless LAN: Intel Wi-Fi 6E AX211
• Wi-Fi Standard: 802.11ax (2×2)
• Bluetooth: Bluetooth 5.3
• Wired Networking: Gigabit Ethernet (RJ-45)

Front I/O Ports

• 1 × USB-C (USB 3.2 Gen 1 / 5Gbps, 15W charging)
• 4 × USB-A (USB 3.2 Gen 1 / 5Gbps)
• 1 × Headphone / microphone combo jack (3.5mm)
• 1 × Microphone jack (3.5mm)

Rear I/O Ports

• 4 × USB-A (USB 2.0 / Hi-Speed USB)
• 1 × HDMI 2.1 TMDS
• 1 × DisplayPort 1.4a
• 1 × Ethernet (RJ-45)

Audio

• Speakers: Integrated 1W speaker
• Audio Interfaces: Front combo audio and rear line-out support

Optical Drive

• Optical Drive: Not included (No ODD)

Security & Manageability

• Platform Security: Intel vPro Enterprise
• Storage Security: Opal 2.0 SSD encryption support
• Physical Security: Kensington Security Slot
• Business Readiness: Designed for managed IT environments

Keyboard & Mouse

• Included Keyboard: USB Traditional Keyboard
• Included Mouse: USB Calliope Mouse

Chassis & Form Factor

• Form Factor: Small Form Factor (SFF)
• Color: Black
• Design Focus: Space-saving, serviceable enterprise desktop

Power & Efficiency

• Power Supply: Internal PSU
• Energy Profile: Optimized for business efficiency

Monitor Support

• Monitor: Not included

Warranty & Support

• Warranty Duration: 3 Years
• Warranty Type: Manufacturer carry-in warranty

Key Features

• 13th Gen Intel Core i7-13700 processor with Intel vPro Enterprise
• 8GB DDR5 5600 MHz memory with up to 64GB support
• 512GB PCIe Gen 4 NVMe SSD with Opal 2.0 security
• Compact SFF design for enterprise offices
• Wi-Fi 6E, Bluetooth 5.3, and Gigabit Ethernet
• USB-C with 15W charging and multiple high-speed USB ports
• HDMI 2.1 and DisplayPort 1.4a display outputs
• USB keyboard and mouse included
• 3-year Lenovo business warranty

Meta Description

Lenovo ThinkCentre M70s Gen 5 SFF (12U80080UM) with Intel Core i7-13700, Intel vPro Enterprise, DDR5 5600 MHz memory, 512GB PCIe Gen 4 NVMe Opal SSD, Wi-Fi 6E, compact small form factor design, and 3-year warranty—an ideal secure desktop for modern enterprise environments.
