UniFi U7 Long-Range (U7-LR)
- Wi-Fi 7 long-range access point with 4×4 MIMO radios
- Extended coverage with high-gain antennas
- 2.5 GbE PoE+ uplink for high throughput
- Optimized for dense client environments
- Fully managed through UniFi Network
The Ubiquiti UniFi U7 Long-Range (U7-LR) is a high-performance Wi-Fi 7 access point engineered for extended coverage, higher client density, and superior wireless reliability. Designed for enterprise, education, hospitality, and large residential deployments, the Ubiquiti UniFi U7 Long-Range delivers next-generation wireless efficiency with powerful radios and optimized antenna design, fully managed through the UniFi Network platform.
Product Overview
The Ubiquiti UniFi U7 Long-Range (U7-LR) builds on the proven long-range UniFi access point architecture while introducing Wi-Fi 7 technologies that significantly improve throughput, latency, and spectrum efficiency. It is ideal for environments requiring fewer access points while maintaining strong, consistent signal coverage.
Wireless Specifications
- Wi-Fi standard: Wi-Fi 7 (802.11be)
- Frequency bands:
- 2.4 GHz
- 5 GHz
- Spatial streams:
- 4×4 MIMO (2.4 GHz)
- 4×4 MIMO (5 GHz)
- Channel bandwidth: Up to 320 MHz (5 GHz)
- Advanced wireless technologies:
- Multi-Link Operation (MLO)
- OFDMA
- MU-MIMO
- Target Wake Time (TWT)
- Advanced beamforming
Performance Characteristics
- Extended coverage through high-gain antenna design
- Optimized for high client density environments
- Low-latency wireless communication
- Improved roaming and stability across large areas
Network & Interface
- Network interface: 1 × 2.5 GbE RJ45
- Power method: Power over Ethernet (PoE+)
- Ethernet compatibility: Backward compatible with 1 GbE networks
UniFi Management & Software
- Management platform: UniFi Network application
- Centralized configuration and monitoring
- Features include:
- Guest networking
- VLAN support
- Band steering
- Fast roaming (802.11k/v/r)
- Real-time RF analytics and client insights

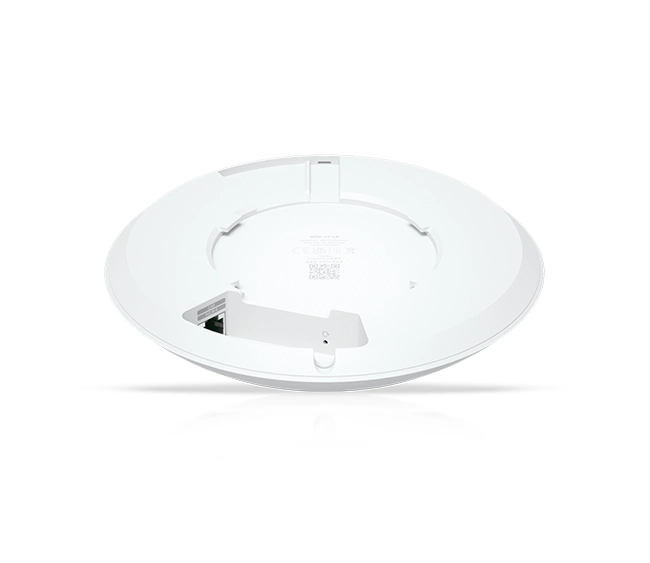

Physical & Environmental Specifications
- Form factor: Ceiling / wall-mounted access point
- Enclosure: UV-stabilized polycarbonate
- Color: White
- Cooling: Passive, fanless operation
- Installation type: Indoor use
Deployment Scenarios
- Large offices and campuses
- Educational institutions
- Hotels and hospitality venues
- Warehouses and open indoor spaces
Key Features
- Wi-Fi 7 long-range access point with 4×4 MIMO radios
- Extended coverage with high-gain antennas
- 2.5 GbE PoE+ uplink for high throughput
- Optimized for dense client environments
- Fully managed through UniFi Network
Meta Description
Ubiquiti UniFi U7 Long-Range (U7-LR) is a Wi-Fi 7 access point featuring 4×4 MIMO, extended coverage, 2.5 GbE PoE+ connectivity, and advanced UniFi Network management for large indoor deployments.
